GCK Battery products

Transportable (integrated handle), 48 V, 1,3 kWh, Max continuous discharge current: 53 A / 70 A peak, Chemistry type NMC, Dimensions 550 x 133 x 85 mm, Weight 7,4 kg, Communication via CAN bus.

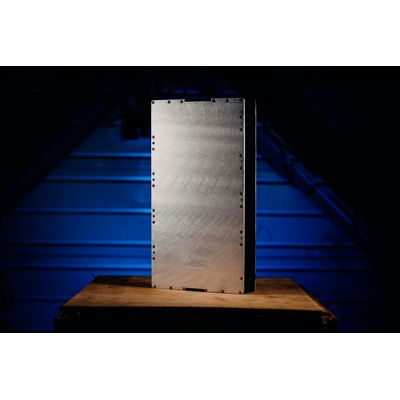

Modular (series or parallel), 48 V, 3,14 kWh, Max continuous discharge current: 500 A / 700 A peak, Chemistry type NMC, Dimensions 541 x 293 x 77 mm, Weight 22 kg, Communication via CAN bus.

Modular (series or parallel), 48 V, 3,63 kWh, Max continuous discharge current: 300 A / 500 A peak, Chemistry type NMC, Dimensions 690 x 255 x 100 mm, Weight 28.5 kg, Communication via CAN bus..

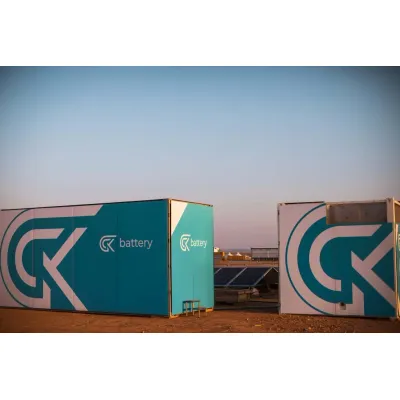

GCK Battery has developed a range of battery modules which, connected in series and in parallel, form a battery pack. This technology can be easily integrated in multiple applications from 48 to 1 000 V and from a few kWh to more than 2 000 kWh. This modular battery system meets the requirements of on-board and stationary systems.
