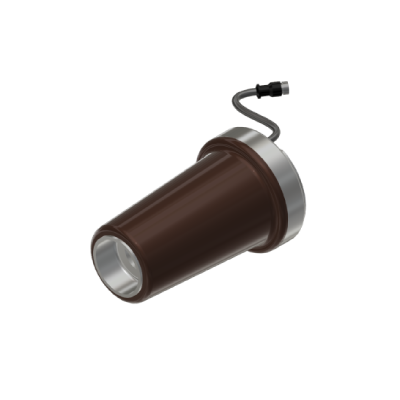

The VxxxC-xx voltage sensor is engineered for integration into T-connectors, typically replacing blind plugs to offer dual functionality: securing the connector and enabling precise voltage measurement. Designed to meet EN 50181 standards, it is compatible with a range of T-connectors from various manufacturers. The sensor's design incorporates a common earth connection point and an output cable for interfacing with intelligent electronic devices (IEDs). This sensor supports a wide temperature range, making it suitable for varied environmental conditions. Its application is critical in setups that require both mechanical and electrical functionality without compromising connector security. By eliminating the need for separate installation of measurement devices and blind plugs, it offers a streamlined solution for efficient energy transmission systems, especially in settings where space and reliability are key considerations.

The ExxxR-xx current sensor is specifically designed for integration on the bushings of gas insulated switchgear utilized at the secondary energy distribution level. Featuring a compact form factor, it accommodates a variety of T-connectors, making it versatile for different installation scenarios. This sensor employs passive technology, eliminating the need for active components and external power supplies. Its splitable design allows easy retrofit installations on existing bushings and cables. Earthing options include direct connection at the sensor, via the cable shielding, or through the IED's S2 connector. The device provides correction factors to improve amplitude and phase accuracy, ensuring high-class sensor performance. Additionally, an ECO-variant is available which initially operates at accuracy class 1 but can be enhanced through specific correction factors. For robust applications, the sensor can be equipped with an IP67 protection rating, safeguarding against environmental ingress. This makes it a reliable choice for demanding electrical infrastructure environments.

The VxxxFE-xx is a sophisticated rail-mounted voltage sensor capable of handling line voltages up to 36kV, designed for versatility in outdoor applications. This sensor is crafted with a modular architecture, facilitating flexible installation either as a suspended device or as a base-mounted unit on a rail. This modularity also allows the sensor to function in various configurations such as pure current, pure voltage, or a composite current-voltage sensing system. The external casing is made of cycloaliphatic epoxy resin, a material revered for its durability and proven efficacy in harsh outdoor environments. This robust construction ensures the sensor's longevity and reliability under challenging conditions. The VxxxFE-xx is tailored for outdoor electrical systems monitoring, offering precision in data acquisition and adaptability to different infrastructural setups, thereby providing a vital component in modern electrical grid management and maintenance.

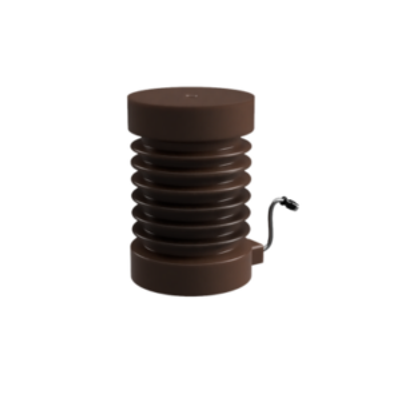

The V120L-xx represents a sophisticated solution in voltage sensing technology designed for indoor air insulated switchgears. This sensor is engineered to withstand horizontal forces, providing robust support for bus bars from which it measures voltage. Its design incorporates a single nut securing mechanism that also functions as a connection to common earth, ensuring a stable and reliable performance. The sensor features an output cable designed to interface seamlessly with intelligent electronic devices (IEDs), making it an efficient component in modern electrical systems. This sensor is particularly suited for environments where reliable and accurate voltage measurement is critical, supporting various industrial and commercial applications. The V120L-xx is part of Greenwood-Power’s portfolio committed to providing advanced and precise electric measurement solutions.
