Gunther Spelsberg GmbH + Co. KG products

Productnumber: 31090801 - Dimensions: 89 x 43 x 38 mm. Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing insertion membranes, sealing range 8,2 - 12,5 mm, (2 rear, 10 side), external fixing lugs, for standard indoor installations grey, without terminals.

Productnumber: 34490801 | Dimensions: 89 x 43 x 38 mm. Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 - 14 mm, (1 rear, 10 side), internal fixing points, for standard indoor installations grey, without terminals.

Product number: 73540301 | Dimensions: 100 x 150 x 96 mm. Small distributions boards, protection class IP65, 1 row, 3 available modules, rated operational voltage: 400V AC, metric knockouts on top and bottom for universal cable insertions with cable glands and/or double membrane seals, pre-mounted with double membrane seals M20 at the top, for standard installations indoors with PE/N terminal rail, each with 1 clamping point 16 mm² and 3 clamping points 6 mm². Accessories supplied: Double-membrane seals: 1x M25, sealing plugs, masking and labelling strips.

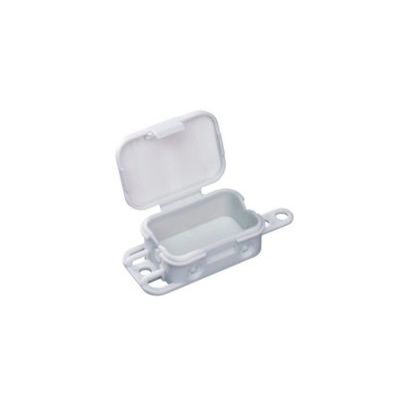

Junction box acc. to DIN EN 60598 (VDE 0711), 4 entries, with strain relief acc. VDE 0606 for NYM 3 x 2.5 mm², 2 of which are accessible from the top, Strain relief clamp for pendulum lights (max. 60W), with external fixing positions.

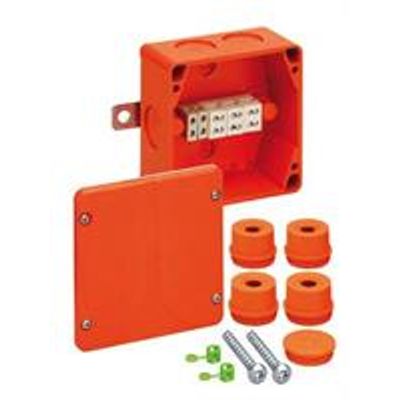

Connection box 3-pole 0.5 - 6 mm², Junction box 3-pole 0.5 - 6 mm², Number of conductors per pole:, 16 x 0,5² / 8 x 0,75² / 12 x 1² / 12 x 1,5² / 4 x 2,5² / 4 x 4² / 4 x 6², Accessories supplied:, 4 IP54 attachment bushes M25, seal range 9 - 18.5 mm, 1 IP54 sealing plug M25, seal range 9 - 18.5 mm, Drilling template, D6 wall + ceiling attachment set. Cable junction and connection box with IP54 / IP65 certified acc. EN 60670, with electrical functional integrity E30 – E90 acc. to DIN 4102-12, halogen-free enclosure made from special duroplastic, terminals made from high temperature-proof special ceramics, rapid mounting thanks to external fixing brackets and wall + ceiling fastening parts kit D6.

Connection box 5-pole 0.5 - 6 mm², Junction box 3-pole 0.5 - 6 mm², Number of conductors per pole:, 16 x 0,5² / 8 x 0,75² / 12 x 1² / 12 x 1,5² / 4 x 2,5² / 4 x 4² / 4 x 6², in 2-pole continuity 8 x 0,5² / 4 x 0,75² / 6 x 1² / 6 x 1,5² / 2 x 2,5² / 2 x 4 / 2 x 6², Accessories supplied:, 4 IP54 attachment bushes M32, seal range 13 - 23 mm, 1 IP54 sealing plug M32, seal range 13 - 23 mm, Drilling template, D6 wall + ceiling attachment set, Sealing set.

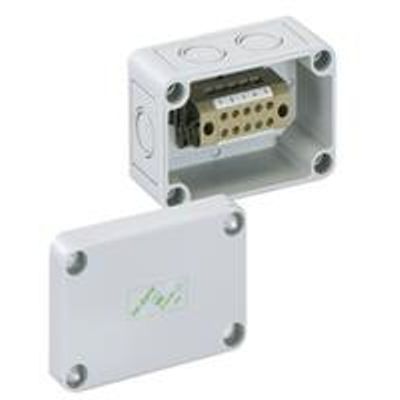

Terminal block enclosure, flat design, Polystyrene, light grey, similar to RAL 7035, equipped with 5-pole terminal block 0.2-4 mm² (screw connection), incl. 3 attachment bushes M20, seal range 8 - 13.5 mm, IP54

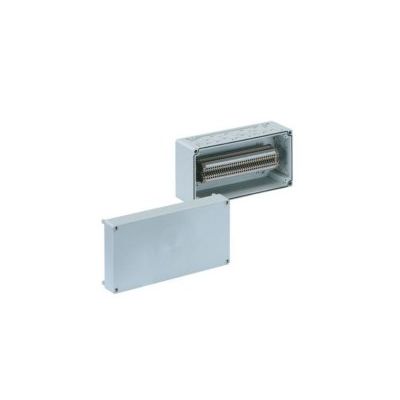

With 34 screwless terminals 4 mm², (type Weidmüller ZDU 4). Terminal block enclosure, incl. 10 DMS nozzle M20, seal range 7 - 12 mm, 2 DMS seals M25, seal range 9 - 16 mm, 2 DMS nozzles M32, seal range 14 - 21 mm, 1 DMS seals M40, Sealing range 19 - 28 mm.

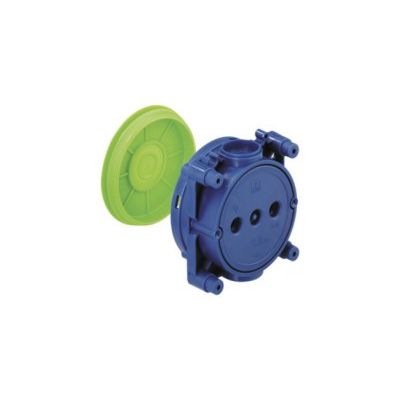

Flat box for installation in concrete, flat construction type for extremely thin walls, 2 screw bosses with screw spacing 60 mm, combinable, suitable for opposing formwork with smooth face for adhesive fixing.
