Haining Qiruite Photoelectric Co., Ltd. products

Number of cells: 60(6*10). Cell Type: polycrystalline 156*156mm. Dimension: 1640*992*40mm. Net weight: 25KG. Front glass: 3.2mm tempered low iron. Frame: Anodized aluminum. Junction box: IP67, with bypass diodes. Connector: MC4 compatible . Output cables: TUV, 900mm length, 4.0mm2.

LED: 6W superbright Epistar LED light. Lithium battery: 4Ah  . Solar Panel: Efficiency mono 18V 10W. Install height: 2-3meters. Waterproof: IP 65. Solar charging time: 6-7 hours by bright sunlight. Lighting time: 60 seconds for each sensor lighting. Material: Aluminium alloy + PC lens. Size: 380*220*50mm. Work Temperature: -30? to 60?. Warranty: 3 years.

All in one Solar led outdoor light ,used as street light, garden light. All in one integrated with solar panels, lithium battery, solar charging controller built-in. High brightness 110lm/w. Long lifespan:50,000h. Rust-proof, dustproof and waterproof. Green energy, USA sunpower solar panels, USA brideglux LED chips. Motion sensor. Lamp power from 5w -120w are available.

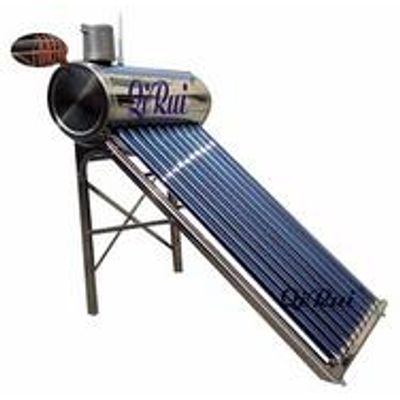

The key of compact heat pipe pressure solar water hater is heat pipe, The heat pipe is hollow with the space inside evacuated, much the same as the solar tube. In this case insulation is not the goal, but rather to alter the state of the liquid inside. Inside the heat pipe is a small quantity of purified water and some special additives. At sea level water boils at 100oC (212oF), but if you climb to the top of a mountain the boiling temperature will be less that 100oC (212oF). This is due to the difference in air pressure.

The key of compact heat pipe pressure solar water hater is heat pipe, The heat pipe is hollow with the space inside evacuated, much the same as the solar tube. In this case insulation is not the goal, but rather to alter the state of the liquid inside. Inside the heat pipe is a small quantity of purified water and some special additives. At sea level water boils at 100oC (212oF), but if you climb to the top of a mountain the boiling temperature will be less that 100oC (212oF). This is due to the difference in air pressure.

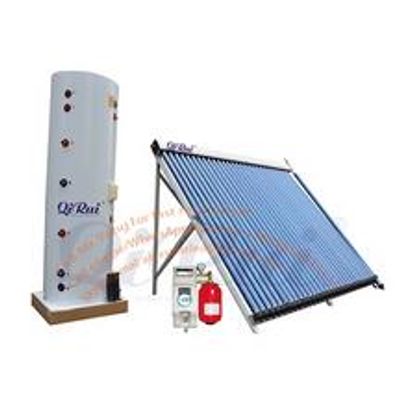

Separated solar water heater Main Parts: Heat Pipe Solar Collector, Upright Water Tank, Work Station(pump and control system).

Separated solar water heater Main Parts: Heat Pipe Solar Collector, Upright Water Tank, Work Station(pump and control system).

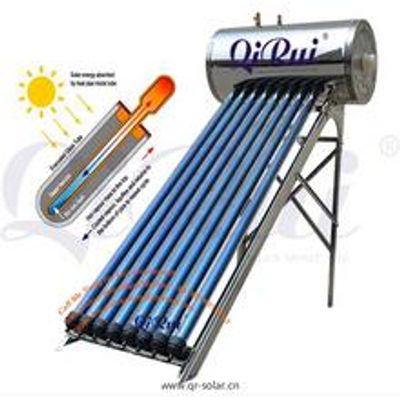

Working Principle of Pre Heated Compact Pressurized Coil Solar Water Heater : Vacuum tube absorb heat energy to heat the water in storage tank. Copper coil is installed in the water tank as the heat exchanger. The water tank acts as a thermal source. When water flows into the copper coil, it absorbs heats from water in the water tank.

Working Principle of Pre Heated Compact Pressurized Coil Solar Water Heater: Vacuum tube absorb heat energy to heat the water in storage tank. Copper coil is installed in the water tank as the heat exchanger. The water tank acts as a thermal source. When water flows into the copper coil, it absorbs heats from water in the water tank.

Vacuum tube absorb heat energy to heat the water in storage tank. Copper coil is installed in the water tank as the heat exchanger.
The water tank acts as a thermal source. When water flows into the copper coil, it absorbs heats from water in the water tank.
