Hannay Reels products

Compact, lightweight, rugged construction. 3-conductor, 30 amp collector ring. 6-foot power source lead of 12/3 cable. 15 amp, 3-prong straight blade plug (twist lock optional). Adjustable cam-lock drag brake. Crank rewind permanent.

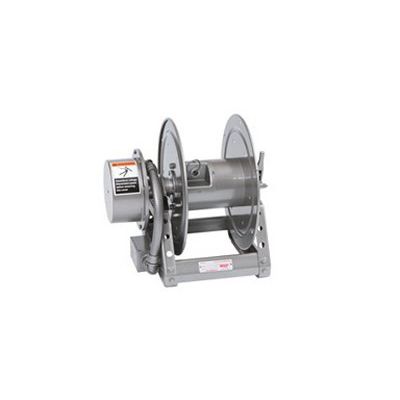

Choose removable crank rewind or chain and sprocket drive powered by an electric or compressed air motor. Adjustable cam-lock brake on crank rewind models. Optional strap brake available on power rewind models. 3-conductor, 45-amp collector assembly with #8 gauge wiring. Consult factory for additional conductors available at extra cost. Rollers and roller mounting brackets are accessory items; specify roller position.

The V-5000 series single wrap power rewind reels are engineered to handle hoses with internal diameters ranging from 1-1/2 inches to 3 inches. These reels are particularly effective in applications such as jet and aviation gas fuel dispensing, where durability and ease of operation are paramount. Designed with an electric rewind option marked as V-EP, these reels offer robust and reliable performance to ensure efficient hose management. Each model configuration supports various inlet diameters and accommodates multiple rewind methods, including air, hydraulic, and electric options. The standard and metric measurements provide additional flexibility for diverse industrial requirements. To facilitate robust connections, it is advised to use a flexible connector between the inlet pipe and the inlet swivel joint. This series emphasizes practicality and adaptability in demanding environments, making it an integral component in fuel handling solutions.

Heavy-duty spring motor.Non-sparking ratchet.Declutching arbor.Consult factory for constant tension applications.3-conductor, 45 amp, 600 volt collector assembly with #8 gauge wiring.Double brushes per circuit; brushes are copper graphite with copper alloy rings.Additional conductors or higher amperage (up to 300 amps) available; consult factory.Silver collector available.Supplied with 4-way roller assembly; roller position must be specified.Cable stop should be used.For vertical lift, stretch and/or crane installation, consult factory for proper spring specifications.

Heavy-duty spring motor.Non-sparking ratchet assembly.  Declutching arbor.  3-conductor, 30 amp.  6-foot power source.  15 amp, 3-prong straight blade plug provided standard (twist lock plug optional).  Cable stop should be used.

Heavy-duty spring motor.Non-sparking ratchet.Declutching arbor.Consult factory for constant tension applications.3-conductor, 45 amp, 600 volt collector assembly with #8 gauge wiring.Double brushes per circuit; brushes are copper graphite with copper alloy rings. Additional conductors or higher amperage (up to 300 amps) available; consult factory.Silver collector available.Supplied with 4-way roller assembly; roller position must be specified.Cable stop should be used.For vertical lift, stretch and/or crane installation, consult factory for proper spring specifications.

Broadcast Cable / Audio Cable / Extension Cord / Rope For fast rollout and storage.
