Henan Honrey Cable Co.,Ltd products

All aluminum alloy stranded conductor, aslo know as aaac sorbus conductor, is mainly used for long-distance overhead lines, but also can be used as overhead line bearing line or other cable core. Mainly ASTM B399 standard, BS EN50183 standard, BS3242 standard, IEC61089 standard, French standard, DIN standard and other manufacturing standards. Our company can provide high strength aaac wire, heat resistant aluminum alloy wire, gap type wire, medium strength aluminum alloy wire and aluminum alloy core aluminum strand and other products.

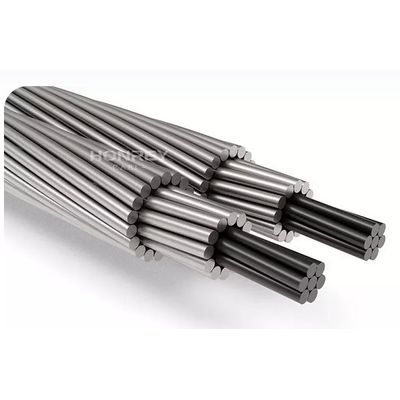

Steel – cored aluminium stranded wire, it could also be described as ACSR Conductor or ACSR Aluminium Conductor or acsr aluminium conductor steel reinforced etc.. Steel – cored aluminium stranded wire has the same structure as the aluminum conductor alloy reinforced (ACAR) , except that the aluminum wires outside the steel core have been changed to alloy wires . ACSR aluminium conductor steel reinforced mainly used to transmit electricity in overhead transmission lines.

When installed, covered line wire is classified as a naked conductor due to without an electrically insulation. The given code names apply to standard polyethylene line wire. The conductors are 1350-H19 AAC, 6201-T81 AAAC, or ACSR conductors that are crosslinked polyethylene, high density polyethylene (HD), or polyethylene that has been concentrically stranded for weatherproofing (XLPE).

Duplex service drop wire or duplex service drop cable, has two electrodes that are laid out in a concentric thread. One is bare and acts as a neutral conductor, Anoher one is an insulated phase electrode. The neutral messengers are concentrically stranded AAC, AAAC, or ACSR. The phase conductors are concentrically stranded compressed 1350-H19 AAC and insulated PVC or XLPE.

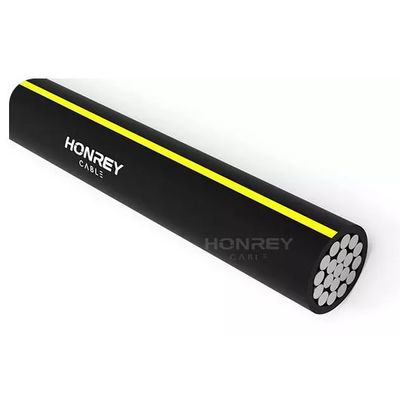

The Aluminum 600V Single Conductor URD Cable is designed for using in power secondary distribution circuits. This urd wire in conduit is used in wet and dry areas and installed in duct or direct burial applications. The maximum working temperature is limited to 90°C. The voltage rating is 600 volts. This cable can also be provided pre-pulled into duct as an alternative. Cable structure is made up by crosslinked polyethylene insulation and concentric stranded or compressed 1350-H19 series aluminum conductor.

The Duplex Aluminum 600V Single Conductor URD Cable is designed for using in power secondary distribution circuits, which is also called copper urd cable. It is used in wet and dry areas and installed in duct or direct burial applications. The maximum working temperature is limited to 90°C. The voltage rating is 600 volts. This cable can also be provided pre-pulled into duct as an alternative. It is made of crosslinked polyethylene insulation and concentric stranded or compressed 1350-H19 series aluminum conductor. Cable surface printed with the necessary content, neutral phase identified with triple yellow strips, or black neutral if desired.
