Infypower products

Energy in electric vehicle batteries can be used for multiple purposes, and these functions are generally defined as V2X applications, specifically, power stored in on-board batteries can be sold be the Grid in V2G (vehicle to Grid) function. When the Grid falls off,families can alternatively obtain power from EV battery for emergency household use, which is viewed as V2H (vehicle to home) function. Besides, the easy and efficient power conversion in V2G make it a vital node in realizing smart grid, small grid, energy storage system and etc,.

Flexible flow of energy: Well-controlled energy flow among Grid, batteries, solar panels and other loads. Expandability: Module-design guarantees tailored capacity and power based on individual customer requirement. Load shifting: Store energy during off-peak power or low-fee intervals; release energy for peak hours or emergency shortage. Digitalization: Cloud-based EMS offers remote access to manage the operation of operation of any charging point.

BEG1K075G realizes well-controlled bidirectional conversion between AC and DC stream. It is featured with high conversion efficiency of up to 96% and can be widely applied in many scenarios, such as EV Charging point, vehicle to Grid, decommissioned battery usage and replace traditional PCS in energy storage system.

DCDC Power Modules, either bidirectional or unidirectional conversion, can be widely applied in DC Charger, energy storage, decommissioned battery recycling, and other scenarios. Infypower-designed modules adopt high frequency transformer inside and an internal patented residual current discharge circuit, offering excellent performance and high-power density for integrated system.

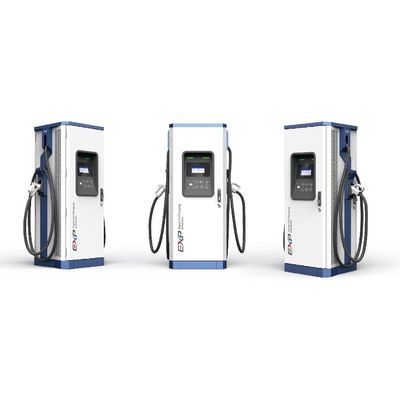

Output DC voltage: DC150V-1000V range. Max DC output current: 600A@300V/ 360A@500V/180A@1000V. Each charging cables max output current is 200A/ CCS. (optional 250ACCS2 or 300ACCS1), 250A/GBT , 125A/CHADEMO. Max DC output power: 180kW. Dimensions: 700*1750*750 mm. Protection: IP55/1K10
