Ingeteam products

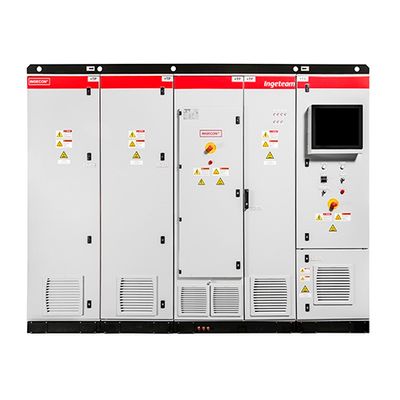

A mature technology used by many of the main turbine manufacturers. A key advantage is its costs and sizes savings, due to the fact that the converter and associated parts are sized for 30% of the rated power. The low voltage DFIG power converters are developed with a modular FRT solution in order to optimize cost-effectiveness and fulfill the strictest international grid codes. «For wind turbines up to 8 MW suitable for on and offshore applications»

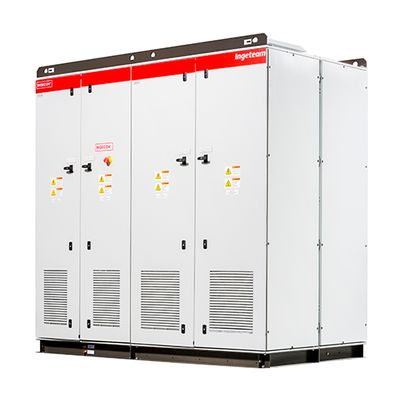

A technology used by many wind turbine manufacturers due to its operating flexibility, energy management advantages and high efficiency at low wind speeds. Low voltage FC single power converter units up to 7 MW and parallelized power converters up to 14 MW. The power converters can be adapted to the generator technology and the environmental conditions. «For wind turbines up to 14 MW suitable for on and offshore applications»

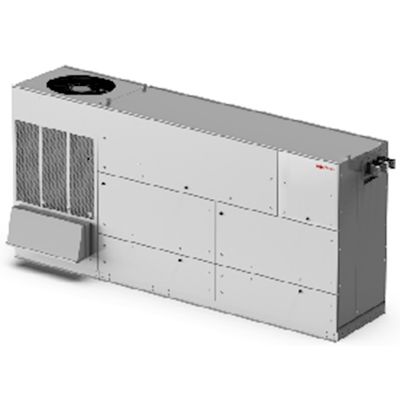

Greater power density: This solar PV inverter achieves a market-leading power density as it provides up to 5,378 kVA in just one power stack. Latest generation electronics: The INGECON® SUN 3Power C Series PV inverter features an innovative control unit that performs a more ef?cient and sophisticated inverter control, as it uses a last-generation digital signal processor. Advanced functionality: The only photovoltaic inverters on the market with advanced electroluminescence function, developed to simplify maintenance and optimize the performance of solar plants.

This brand new medium voltage solution integrates all the devices required for a multimegawatt system. Maximize your investment with a minimal effort: Ingeteam’s Power Station is a compact, customizable and flexible solution that can be configured to suit each customer’s requirements. It is supplied together with one central PV inverter. All the equipment is suitable for outdoor installation, so there is no need of any kind of housing. Higher adaptability and power density: This Power Station is now more versatile, as it presents only two elements: the pad-mounted transformer and a central inverter that features the auxiliary services panel and the auxiliary services transformer in-stalled inside the inverter. Moreover, it features a great power density: 503 kW/m3.

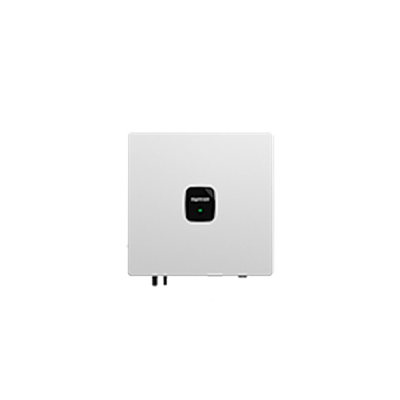

The greatest flexibility: This solar PV inverter features a great flexibility thanks to its two maximum power point trackers (MPPT), making it possible to harness the maximum energy from the PV array at all times, even under difficult situations such as partial shading or scattered clouds. This feature makes it the best solution for residential self-consumption installations. EMS Inside: An energy management system (EMS) is included as standard at no extra cost, thank to which an improved inverter control and monitoring can be performed through the INGECON SUN Monitor application. Moreover, this single-phase inverter includes Wi-Fi and Ethernet communication.

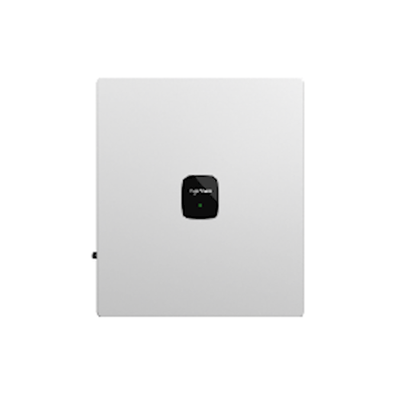

The greatest flexibility: This solar PV inverter features a great flexibility thanks to its two maximum power point trackers (MPPT), making it possible to harness the maximum energy from the PV array at all times, even under difficult situations such as partial shading or scattered clouds. This feature makes it the best solution for commercial self-consumption installations. EMS Inside: An energy management system (EMS) is included as standard at no extra cost, thank to which an improved inverter control and monitoring can be performed through the INGECON SUN Monitor application. Moreover, this three-phase inverter includes Wi-Fi and Ethernet communication.

The INGECON SUN 1Play photovoltaic inverters feature a double MPP tracking system that enables it to harness the maximum power from the PV field, even under difficult situations, such as partial shadings, scattered clouds or on-roof installations with different orientations. High Efficiency System: Thanks to the High Efficiency System developed by Ingeteam for this PV inverter series and to the use of innovative electronic conversion topologies, maximum efficiency values of up to 98% can be achieved. In domestic installations, these inverters present the great advantage of being compatible with 30 mA RCDs, the most commonly used to protect the people against fatal electric discharges.

The TL Series of the INGECON SUN 3Play inverter family features a single maximum power point tracking system that makes it possible to harness the maximum energy from the PV array at the most competitive price. Thanks to its IP65 (NEMA 3R) protection rating, this single DC-to-AC power conversion stage inverter, is able to withstand extreme temperatures (-20ºC to 65ºC / -4ºF to 149ºF). Ingeteam is at the forefront of firmware development. The display menu of the TL Series has been designed to ensure an easy user access. Moreover, these inverters allow the user to perform the firmware updating himself by using a simple SD memory card.

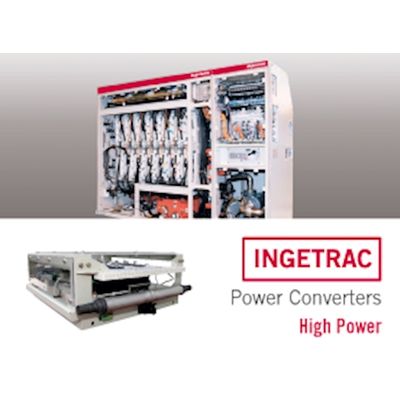

For every topology and configuration, INGETRAC are comprised of all necessary elements to be fully operational on each required application, e.g. traction inverter, braking chopper, AFE auxiliary inverter and battery charger. They are designed to be fitted on board, liquid cooled and to operate on extreme conditions of tempereature and operation.

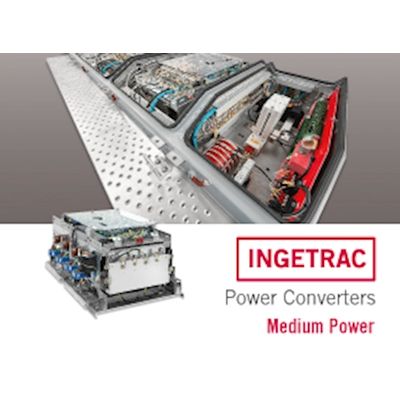

Based on proved medium power modules, the converters include all necessary elements to be fully operational: traction inverters, braking chopper, AFE, auxiliary inverters, etc… INGETRAC Medium power converters are designed to be located on-roof or under-frame, they can be air or liquid-cooled, depending on the vehicle´s manufacturers needs.
