Wire less GSM systems With Citylight software for constant monitoring, controlling and logging of switching on time, RTC data, electricity parameters and faults.  Reports can be generated as per user requirements. Low annual operating cost type GSM base are among the most inexpensive wireless technologies available. And Low initial costs of installation As GSM wireless, there is no need to establish cable connection and is easily expandable to new areas and cities.  Also it required no government licensing. Control from mobile phone for service purposes Feeder Pillar can also be controlled from a GSM phone using SMS technology (Optional). Fast detection of errors with GSM the street lights are always online any fault in street lighting electrical circuits is known to the operator within sort time. Simultaneously User settable Two Mobil no of supervisor and technician for instantaneous fault reporting.

The system consist of a master panel and 12 + 1 numbers of slave lighting control panel connected in Modbus industrial wired network. The Master Panel: The Master panel is located in the control room having a touch control panel to control individual panels from the control room and monitoring facility to know the status of the slave control panels. An ideal time master control panel inquires the status of each slave panel and updates it on the screen. In control mode, it can take control of each slave panel to switch on/off  or change dimming levels as per requirement.

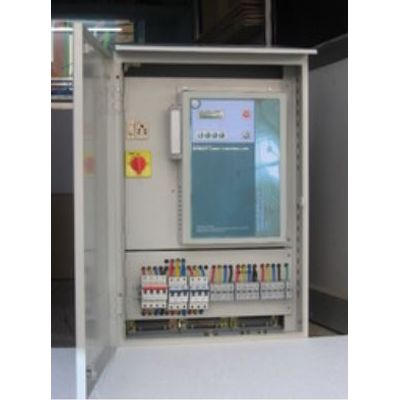

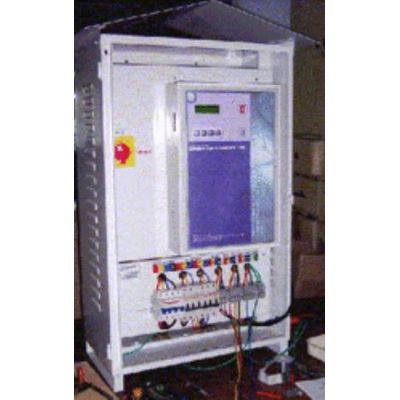

Street Light Feeder Pillar: Supply : 3 Phase 440 V AC + 10 % to 25 %, R Y B N 4 Wire supply Systems. 50 Hz (+ / - 10 %), Power Consumption : 3 W (Stand by) 10 W (on full load), Controller : 8 Bit micro controller, Programming function : Switching on Longitude & Latitude base, Real Time Clock : With life of more then 8 years, Parameter data protection : With special device which hold the data for more then 10 years without any power and Password protected., Display : 16 character and two lines LCD display with backlight., Redundancy : Operates up to single phase 170 V Ac, Power Output : 11 KVA to 70 KVA as per requirment., Protection : Output MCB
