ioSelect, Inc products

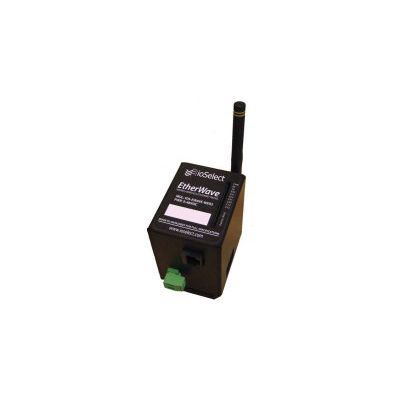

The EtherWave WER allows you to build your own long-range, non-line-of-sight, point-to-point, or point-to multipoint wireless Ethernet solution that can enable fringe Ethernet devices, including SCADA clients, remote instruments, IP Cameras, VoIP phones, digital signage, or access control / security systems. The EtherWave WER offers the ideal combination of price, range, data rate, security, interference avoidance, quality-of-service, and ease-of-use.

The ioPro 8AI-I-ISO inputs are fully isolated from input to logic and between inputs. This module is ideal for monitoring existing current signals which are isolated from each other and cannot be connected to a common point of reference. The standard setting for the 8AI-I-ISO module is 0 - 20mA input which represents an output value of 0 - 4095 (12 bits) in the corresponding Modbus register. In this range, a reading of 4 mA would give a Modbus value of 819 ±1LSB. To obtain an output value of 0 to 4095 for an input signal of 4 to 20mA the offset switch can be switched on. Also, this module can also be configured for a 0 - 20mA input range or ±20mA input (1 A resolution).

The UniPak UP108 module comes in 3 models to better fit the product to the application requirements. The UP108S is a single setpoint alarm trip, the UP108D is a two setpoint alarm trip and the UP108T is a triple setpoint alarm trip. Each setpoint is independently adjustable with multiple-turn potentiometers. Each setpoint features DIP switch configurable high or low trip. The high trip will change the state of the relay as the input signal increases, the low trip as the input signal decreases. The action of the relay is also configurable to be normally open or normally closed. The adjustable hysteresis (deadband) and adjustable time delay, to eliminate nuisance alarms, affects all setpoints. The time delay can be set from 0.3 to 30 seconds. The input is configurable for the most popular current and voltage ranges and is able to provide excitation for two-wire sensors. Alarm Trip flexibility and use made simple from ioSelect, powered by Seneca (Z113).
