IronRidge Inc products

The IronRidge Ground Mount System combines the strength of XR1000 rails with locally-sourced steel pipes or mechanical tubing to create a cost-effective structure capable of handling any site of terrain challenge. Installation is simple with only a few structural components and no drilling, welding, or heavy machinery required. The System works with a variety of foundation options, including concrete piers and driven piles, and can support up to 5 modules per column.

Every component in the IronRidge Flush Mount System has been tested to the limit and proven in extreme environments: rain, wind and snow. Our rigorous approach has led to unique structural features, such as curved rails, universal fastening objects and reinforced flashings. All of our products are fully-certified, code-compliant, listed to UL 2703 and backed by a 25-year warranty.

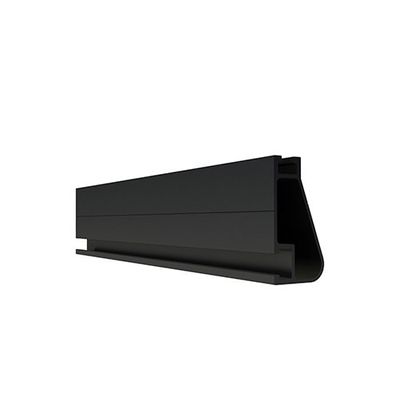

The lighter, open Aire^® rail for standard conditions. 6’ spanning capability. Wire management tray. Mill or anodized black.

Structurally connect and bond Aire® Rails together. Reinstallable, up to 5x. Internal splice design. No more splice rules.

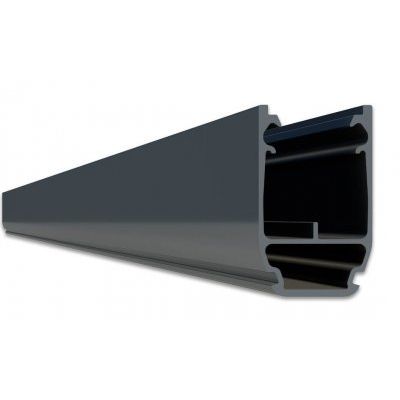

XR10® is a sleek, low-profile mounting rail, designed for regions with light or no snow. It achieves 6 foot spans, while remaining light and economical. 6’ spanning capability. Moderate load capability. Clear & black anodized finish. Internal splices available.

XR100® is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans up to 8 feet. 8’ spanning capability. Heavy load capability. Clear & black anodized finish. Internal splices available.
