The APS series is a compact and efficient DC/DC converter tailored for PCB mounting and soldering. With output voltages ranging from 200V to 1000V, these modules are highly versatile and can be fine-tuned using either a potentiometer or an analog control voltage. The series incorporates patented resonance converter technology and is enclosed in molded metal boxes to ensure minimal electromagnetic interference, achieving low ripple and noise in the output voltage. These features make the APS modules ideal for applications requiring precision and reliability in their high voltage power supplies.

The BPS series from iseg represents a line of robust and compact DC/DC converters designed for PCB mounting, offering high voltage outputs ranging between 300V to 6kV. These converters support adjustable output voltages via a potentiometer or an analog control voltage, providing flexible integration options. Employing a patented resonance converter technology, BPS ensures minimal electromagnetic interference and maintains low ripple and noise levels, making them ideal for precision applications in industrial and research environments. Their moulded metal box shielding enhances reliability by reducing susceptibility to external disturbances. The range spans several power outputs up to 4.0W, supporting various input voltages such as 5V and 12V, with ripple figures as low as 5mV, ensuring exceptional consistency and performance.

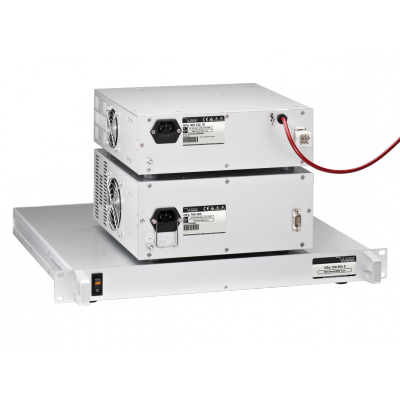

The GPS series by iseg Spezialelektronik GmbH offers a line of analog controlled, AC-driven high voltage power supplies recognized for their high power density and outstanding output characteristics. The series is highly customizable, making it suitable for various fixed requirement applications while remaining cost-effective. With a broad output voltage range from 1kV to 70kV, these units deliver reliable performance optimized for both industrial and research settings. The precision of these devices ensures minimal ripple and noise, reaching down to 5·10-7 of the set output voltage, equating to less than 5 mV ripple at 10,000V output. This high level of accuracy makes them ideal for applications requiring strict voltage regulation and stability. Each model within the GPS series is designed to facilitate analog control, ensuring compatibility with multiple use cases and providing flexible integration options.

iseg's High Precision Versatile HV Module is a standout product designed for multiple floating versions, catering to varying industry needs. It features a range of adaptable configurations such as the EHS Standard in CFG and FG, EHS CFG Flex, and more. These modules are capable of operating at high voltages from 100V to 20kV, with ripple and noise levels as low as 5·10-7 of the output voltage, translating to less than 5 mV for a 10,000 V output. The modules support different current ranges and control interfaces, including CAN and IC. Users can select from versions tailored for lower current applications or stack configurations for enhanced flexibility. These attributes make the HV Module suitable for precise and reliable high voltage power supply requirements in research and industrial applications.
