Ivy Metering Co., Ltd products

IM901T is a three-phase latching relay designed for 3 phase smart meter. As a 90a 3 phase power latch relay, it has integrated design and long service life. This 3 phase magnetic latching relay have got RoHs/CE/IEC certificate, Energy-saving and pollution-free, there is a TUV certificate that meets the built-in relay of the electric meter. Generally speaking, a three-phase electric meter needs to be equipped with 3 single-phase relays, IM901T Relay has three sets of contacts and can meet the requirements, so it is cost-efficiency. Compared with other latching relays, the high power latching relay switch has the following characteristics:

800 series of electric meter counter is a cheap, low-cost mechanical counter. Plastic and metal types can be optional. Its main features as follow: 1)Display digits: 6-digit or 7-digit black wheel; 2)0-9 character display; Number ratio: 200:1; 3)Long service life, Driving voltage is generally 3.0-5.5V, mainly designed for Russia market.

Max Switching Current 80A. Power Consumption: 3W(25ms). Dielectric Strength of 4kV. Cost Efficiency & Surge Protection. Compact Size:26.5*23.5*13.8mm. External Permanent Immunity to 500mT. RoHS Compliant Materials and Process. Short Circuit per IEC 62055-31 UC2/UC3 Certificate. Custom Assemblies  with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals. Wide Application for Energy Meter,RCCB, EV Charger, IOT Device.

Max Switching Current 80A. Power Consumption: 3W(25ms). Dielectric Strength of 4kV. Cost Efficiency & Surge Protection. Compact Size:26.5*23.5*13.8mm. External Permanent Immunity to 500mT. RoHS Compliant Materials and Process. Short Circuit per IEC 62055-31 UC2/UC3 Certificate. Custom Assemblies  with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals. Wide Application for Energy Meter,RCCB, EV Charger, IOT Device.

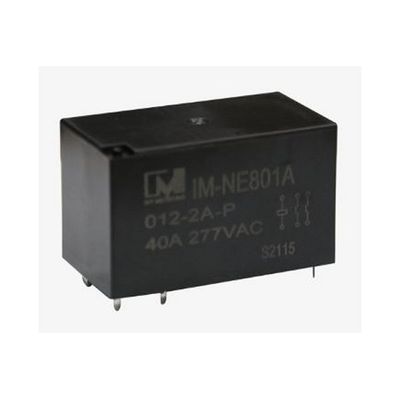

IM-NE801 is an Two-pole PCB power relay for Solar PV and AC charging pile. Considering the better demand for cost performance, the dual-circuit is on and off at this time. The functional advantages of IM-NE801A are reflected. From the perspective of contact withstand voltage, IM-NE801A has more advantages. IM-NE801A may be a better choice for AC slow charging piles. It is not an exaggeration to say that it is specially designed for charging piles. Its appearance also makes the use of relays in new energy vehicle charger more efficient, rational and safe!

AX series ac dc power module is a small size, high efficiency switching power supply for customers. This series of power supply module main features as follow: input voltage:110-450vac, output voltage:5v-15v, output power:5w-15w; 3 phase input voltage; single/dual way output optioal; four parameter mode optional; Over current / Short circuit /Over temperature protection, Self-furbish; PCB board in-line Type Installation. Built-in anti-4KV lightning surge and anti-EMI circuit at the power input. This series of products have important applications in many fields such as air conditioning, industrial equipment, medical instruments, instrumentation, new energy, smart cities, and the IOT field.

IM-NE801 is a dual pole electromagnetic PCB power relay for Solar PV and AC charging pile. Considering the better demand for cost performance, the dual-circuit is on and off at this time. The functional advantages of IM-NE801A are reflected. From the perspective of contact withstand voltage, IM-NE801A has more advantages. IM-NE801A may be a better choice for AC slow charging piles. It is not an exaggeration to say that it is specially designed for charging piles. Its appearance also makes the use of relays in new energy vehicle charger more efficient, rational and safe!

D129072 is an open core (split type) current sensor for EV Charging Pile Station. Its structural design ensure fast speed load and unload under constant power, which is greatly improve the construction efficiency and widely used in smart meter, smart grid, monitoring device, EV charger, circuit protection, and machine equipment etc. Compared with other open core current transformers and smart sensors on the market, it has the following characteristic: With M-BUS communication, current and temperature values can be read.(voltage,current,Kwh can be customized). Open coce (split type) structure, snap-in connection, no tools needed to remove the main circuit, low cost, easy installation, machined by mirror surface, the contact surfaces are more compact and restless. Alarm output function: overheat alarm/overcurrent alarm. With the output function of over current or over temperature alarm, by setting the upper limit of the current or temperature.
