Jiangsu Honest Cable Co.,Ltd products
Marine Cable - Marine Power Cable
Medium Voltage Cable
Medium voltage cable (MV cable) is designed according to IEC 60092-354 standard. IEC 60092-354 standard: Electrical installations in ships – Part 354: single core and 3 core marine cable with extruded solid insulation for rating voltage 6 kV (Um = 7, 2 kV) up to 30 kV (Um = 36 kV). It is applicable to marine MV power cable with extruded solid insulation, conductor and core screening, having a voltage of the following: 3, 6/6 (7, 2) kV, 6/10 (12) kV, 8, 7/15 (17, 5) kV, 12/20 (24) kV, 18/30 (36) kV. It is intended for fixed installation for marine and offshore purposes.
Model MPRX - Unarmoured Flame Retardant Marine Power Cable
MPRX is an unarmoured flame retardant marine power cable for fixed installation on ship boards and marine purpose. It is intended for power, lighting and control system on shipboard. MPRX is designed according to IEC 60092-353 standard with rating voltage up to 0.6/1kV and maximum operating temperature at 90?. MPRX is also called LKM-HF, CJPF/SC, M2XH, and cable marine line YZP. These unarmoured marine power cable types are tinned copper wire conductor with XLPE insulation and thermoplastic polyolefine (PO SHF1) sheathed flame retardant cable. MPRX features flame retardant, low smoke and halogen free.
Shipboard Cable - Ship Electrical Cable
Model Ship MV Cable - Medium Voltage Cable
Medium voltage cable (MV cable) is designed according to IEC 60092-354 standard. IEC 60092-354 standard: Electrical installations in ships – Part 354: single core and 3 core marine cable with extruded solid insulation for rating voltage 6 kV (Um = 7, 2 kV) up to 30 kV (Um = 36 kV). It is applicable to marine MV power cable with extruded solid insulation, conductor and core screening, having a voltage of the following: 3, 6/6 (7, 2) kV, 6/10 (12) kV, 8, 7/15 (17, 5) kV, 12/20 (24) kV, 18/30 (36) kV. It is intended for fixed installation for marine and offshore purposes.
Model MPRX - Unarmoured Flame Retardant Marine Power Cable
MPRX is an unarmoured flame retardant marine power cable for fixed installation on ship boards and marine purpose. It is intended for power, lighting and control system on shipboard. MPRX is designed according to IEC 60092-353 standard with rating voltage up to 0.6/1kV and maximum operating temperature at 90?. MPRX is also called LKM-HF, CJPF/SC, M2XH, and cable marine line YZP. These unarmoured marine power cable types are tinned copper wire conductor with XLPE insulation and thermoplastic polyolefine (PO SHF1) sheathed flame retardant cable. MPRX features flame retardant, low smoke and halogen free.
Offshore Cable - Offshore Power Cable
High Voltage Cable

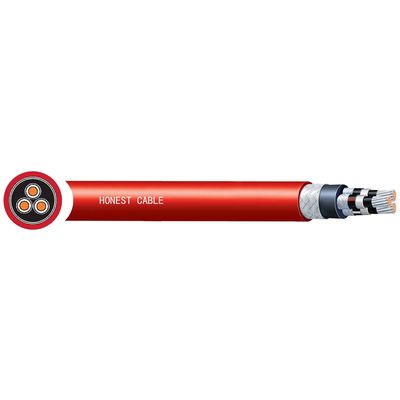

High voltage cable (P2/P3/P4 RFOU) is designed according to NEK 606 & IEC 60092-354 standard. IEC 60092-354 standard is electrical cable installations on offshore units: single core and 3 core offshore power cable with extruded solid EPR insulation for rating voltage up to 30 kV (Um = 36 kV). It applies to HV offshore power cable with extruded solid EPR insulation, copper conductor and core screening, having a voltage of the following: 3,6/6 (7,2) kV, 6/10 (12) kV, 8,7/15 (17,5) kV. It is intended for fixed installation for oil and gas platform and offshore purposes. High voltage cable (P2/P3/P4 RFOU) is EPR insulation and armored by tinned copper wire braid (TCWB), coming with thermoset polyolefin halogen-free compound, PO SHF2 sheathing. It is flame retardant cable according to IEC 60332-1 & IEC 60332-3.
