Jiangsu Pengfei Group Co.,Ltd. products

The wet rotary kiln belongs to the category of building materials and equipment. It is widely used in metallurgy, chemical industry, building refractories, environmental protection, and other industries. The rotary kiln is composed of cylinder, supporting device, supporting device with baffle wheel, transmission device, movable kiln head, sealing device of kiln tail, coal injection pipe device, etc. The kiln body of the wet rotary kiln is inclined to a certain level. The whole kiln body is supported by a supporting wheel device and has a wheel-retaining device to control the movement of the kiln body up and down. In addition to the main drive, the transmission system is also equipped with an auxiliary drive device which can rotate the kiln body when the source of the main power is broken and prevent the kiln body from bending and deforming. The sealing device of the kiln head and the kiln tail adopts advanced technology to ensure the tightness and reliability of seal.

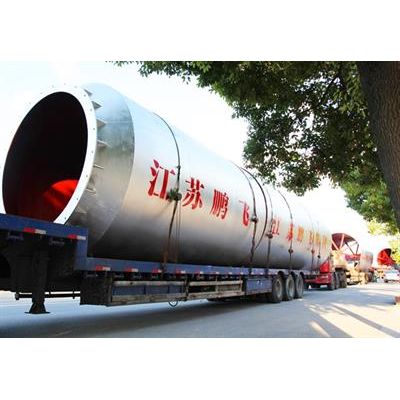

The cylinder body of the rotary kiln is rolled up by a steel plate. The cylinder body is lined with refractory lining and has a specified gradient with the level. It is supported by three-wheel belts on each supporting device. A large ring of teeth is fixed on the inner cylinder body of the span near the wheel belt at the feeding end with a tangential spring plate, and a pinion meshes with it. In normal operation, the main drive motor transmits power to the open gear device through the main reducer to drive the rotary kiln.

This series of rotary kilns is a large-scale calcining kiln with advanced international level developed by the company together with Beijing Institute of Mining and Metallurgy, Changsha Institute of Mining and Metallurgy and Suzhou Institute of Nonmetallic Mine Industry. Compared with traditional kiln type, this series of products can increase output by 30%, reduce heat consumption by 40%, discharge flue gas temperature < 250 C, facilitate dust collection and meet the requirements of modern energy saving, consumption reduction, and environmental protection. It is widely used in calcination of laterite nickel ore, active limestone, oxidized pellets, magnesia, alumina, titanium dioxide and other products.

Pengfei rotary kiln (Rotary kiln, titanium dioxide kiln, sintering furnace, industrial kiln, kiln, oxidizing pellet) has specifications of 3.2*52m, 3.5*54m, 4.0*60m, 4.3*64m, 4.8*74m, 5.0*78m. Pengfei rotary kiln is the main equipment for calcining cement clinker. It has been widely used in cement, metallurgy, chemical industry, and other industries.

Domestic demand and import and export of aluminum alloys and rare earth silicon magnesium alloys in China have increased rapidly, and the consumption of magnesium has also increased dramatically, reaching 50,000 tons in 2010. In order to make full use of dolomite resources in various regions and improve industrial structure, Jiangsu Pengfei Group has developed and manufactured magnesium rotary kiln.
