K2 Systems GmbH products

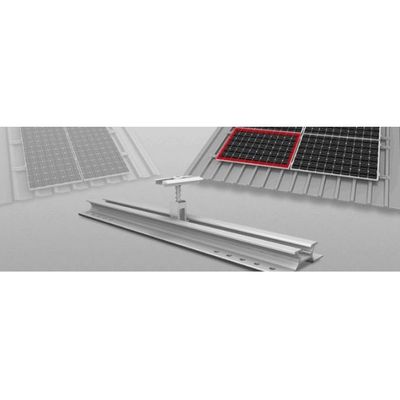

The MicroRail System is a mounting system for corrugated and trapezoidal sheet metal roofs. The short rail system including sealing is fixed directly into the roof covering without additional parts with self-tapping sealing screws. The PV modules are mounted in landscape orientation.
The rail channel is designed for the universal MiniClamp module clamp and is therefore suitable for most module frame heights. In addition module frame grounding can be very easily established using the Terragrif K2MI for the MiniClamp.

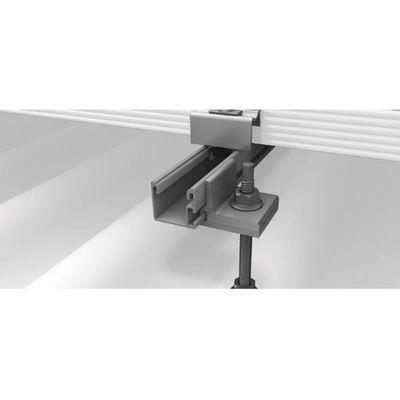

The SingleRail mounting system for photovoltaic assemblies is suitable for roofing with pan tiles and corrugated fibre cement or corrugated sheet metal. The roof fastening is done using roof hooks or hanger bolts. Quick and low-cost with direct lateral connections to the rail without additional components including customised height adjustment Secure snap-in assembly – without needing to be screwed to the base plate In combination with CrossHook roof hooks, SingleRail forms a powerful and multi-talented team

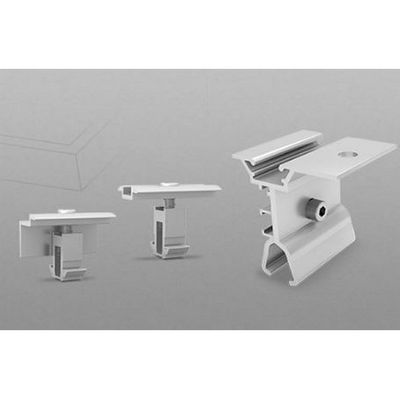

A pv mounting solution for Klip-Lok and Klip-Tite standing seams: Railless landscape assembly with only 3 components is done with our well-known universal MiniClamp (30 - 50 mm).  Portrait assembly is possible with and additional mounting rail and OneMide/OneEnd universal clamps (32 - 42 mm). Ultra-quick assembly solution for roofing types: Klip-Lok and Klip-Tite. Rail-less landscape assembly with a module supporting clamp. Comfortable portrait assembly with SolidRail. One clamp fits all: Universal module clamps for landscape and portrait assemblies.

The SolidRail mounting system for photovoltaic assemblies is suitable for nearly all coverings. This includes pan tiles, plain tiles, slate tiles, trapezoidal sheet metal, corrugated fibre cement, corrugated sheet metal and standing seam roof. Comprehensive range of mounting rails for varying load profiles. Robust, structurally proven. High flexibility for a diverse range of widths.

The MiniRail mounting system for photovoltaic assemblies was developed specifically for trapezoidal sheet metal. It allows easy changing of the module orientation thanks to the universal module clamps which are rotatable by 90°, is extremely lightweight and comes stacked completely on pallets.
