Kyriazis S.A. products

Boilers:  Internal special anticorrosive type of coating EUROGLASS for absolute corrosion protection. Electrical resistance 2-4kw provided with thermostat. Cathodic  protections with magnesium bar 300mm length. Exterior head exchange jacket made of steel 1,5mm thick insulation with polyurethane density and 60mm thick. Exterior stainless steel casing.mm. Cold water safety value with ½ inch diameter which operates at a pressure of 6kg/cm2. Test pressure 20kg/cm2. Operating pressure 6kg/cm2. Boiler are provided in vertical and horizontal style.Orders with special dimensions are accepted after agreement.

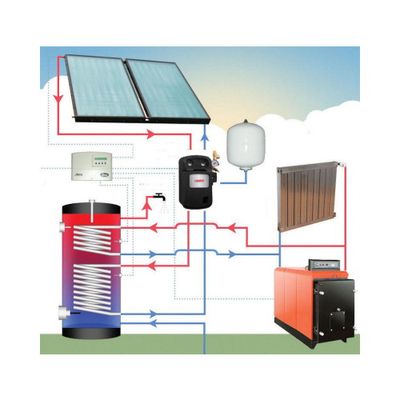

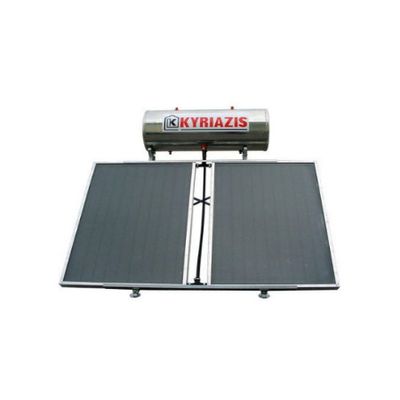

Solar System Forced Circulation (SSF) with Selective Collector (TINOX)

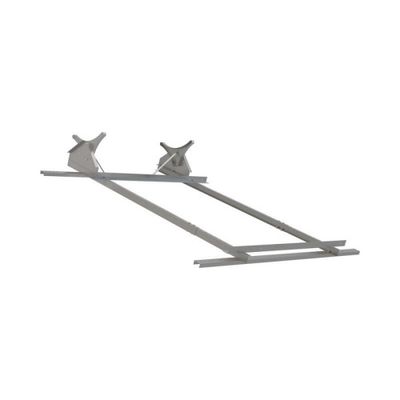

Supporting frames for installation of solar systems and collectors.

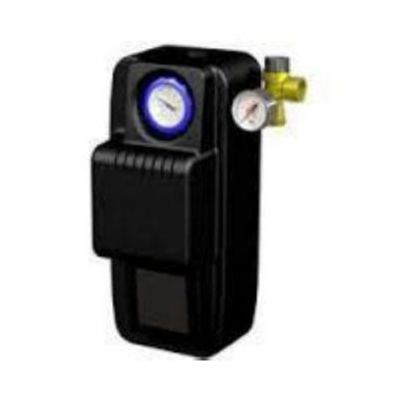

Fresh water production through single line solar station NOVASOL MONO without controller adapter, solar panels and integration with gas wall hang boiler

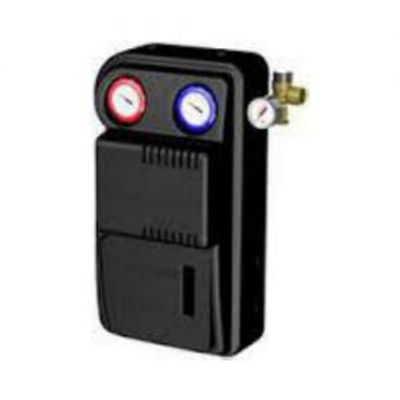

Fresh water production through twin line solar station NOVASOL DUO with controller adapter, solar panels and integration with gas wall hang boiler

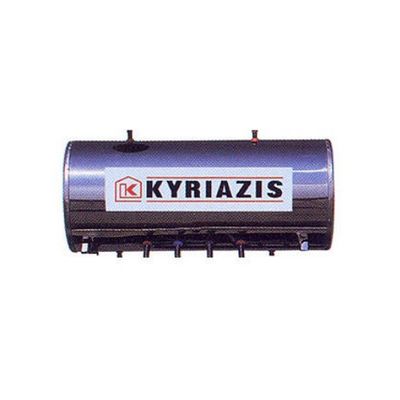

Boilers made of steel 3mm thick. Internal special anticorrosive type of coating EUROGLASS for absolute corrosion protection. Electrical resistance 4kw provided with thermostat. Cathodic protections with magnesium bar 30 cm length. Exterior head exchange jacket made of steel 1,5 mm. Insulation with polyurethane density 40 kg/m3 and 60 mm thick. Exterior stainless steel casing 0.5 mm. Cold water safety valve with 1/2 inch diameter which operates at a pressure of 6kg/cm2. The bolers are offered with one and double coil. Test pressure 15kg/cm2. Operating pressure 6kg/cm2.  Orders with special dimenstions are accepted after aggreement.

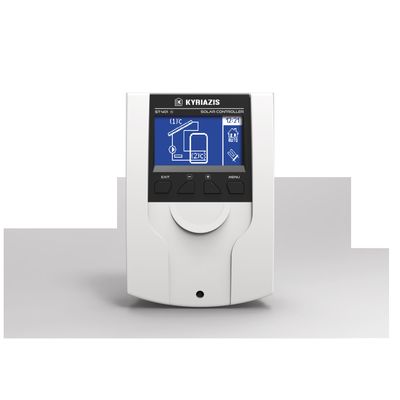

color, touch-screen LCD display. Control of the operation of pumps (or a pump and a valve). Supervision and handling of the solar system operation for 11 configurations. Protection against overheating and freezing of the collector. The possibility of connecting EU-500 ETHERNET module. The possibility of connecting EU-65 GSM module. The possibility of connecting an additional device: (circulation pump or heater). Sending a signal to the Central Heating boiler to fire it up.

Functional and convenient control panel. Easy mounting above the sink.

External cover made of steel with special anticorrosive electrostatic paint. Insulation with environmental friendly polyurethane. Thermometer. Electric resistance 4kw provide with safety thermostat. Kathodic protection with magnesium bar. Light indicating the electrical resistance operation. Internal special anticorrosive protection EYRO type for absolute zero corrosive defects. Safety valve ½ which operates at a pressure of 6kg/cm2. Test pressure 20kg/cm2.

DHW producer with removable U-profile tubular heat exchanger. The DHW heating (secondary circuit), consists in natural convention in the storage tank, lapping against the external part of the tubes which compose the exchanger, which is feeded by the heating fluid (primary circuit). The heating fluid can be hot water, steam or recovered hot fluids (recover circuit), condensation, cooling circuit, etc.
