Lancier Monitoring GmbH products

The monitoring station MUX 101-DW is an universal platform for the permanent surveillance of copper or fiber network and related equipment. The 16 input channels can be configured to monitor addressable transducers and/or contactors which are measured periodically.

The monitoring station RTU 101-IMS is used to detect the penetration of moisture in copper cables, their squeezing or damage. The readings of the 10 measurement channels, regarding insulation and loop resistance, are evaluated by the RTU 101-IMS according to individual user programmed parameters. Threshold exceedings cause automatic reports like warnings, alarms etc. to assigned receiving stations. The UMS server permanently polls the actual measurement and system data via intranet (Ethernet, TCP/IP). It evaluates the sensing points states and stores all data in the database of the UMS server. All connections and control units are stored in awall mount housing. The connections are fixed by screws and clamps ensuring an easy and cost effective mounting without the need ofexpensive special cables.

The LANCIER Monitoring Rail-Module-Bus is a modular and robust sensor system. Several measuring modules are mounted on a DIN rail and are directly connected to one another by means of plug-in contacts. The supply voltage, data analysis and control panel as well as their transmission to the remote measuring stations are carried out via the RM-Basic module.

All sensor types mentioned below are connectable to the LANCIER Tx-Bus. They are applicable for a wide spectrum of tasks.

The mobile pressurisation system LAM 2000 is the followup model of the proven LAM 2500. It is designed as a back-up system for stationary pressurisation systems during breakdowns e.g. due to repair or maintenance works.

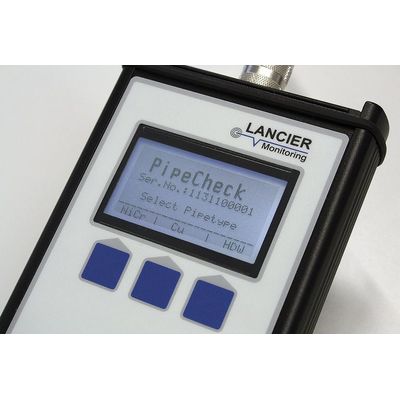

Small, light and efficient: the PipeCheck mobile measuring device by LANCIER Monitoring. Used for inspecting existing or newly installed ­measurement sections in district heating pipeline monitoring.
