Landpower Solar Technology Co., Ltd products

Flat Roof Mounting System

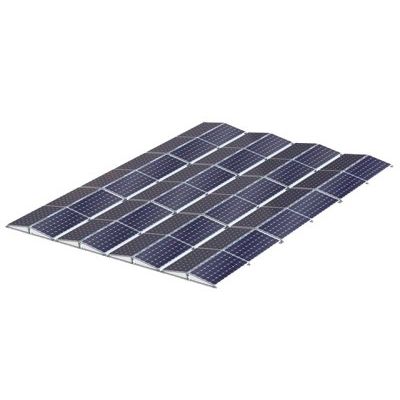

Landpower - Ballast Mounting System

Landpower Ballasted Roof Solar Mounting System is specifically engineered for non-penetration roofs, which secures the array without damaging the flat roof. It is compatible with both framed photovoltaic modules and unframed thin film modules. This economical system requires no roof penetration and made from lightweight and strong aluminum construction and come with pre-assembled components, they are just require few tools, it is quick and easy to install.

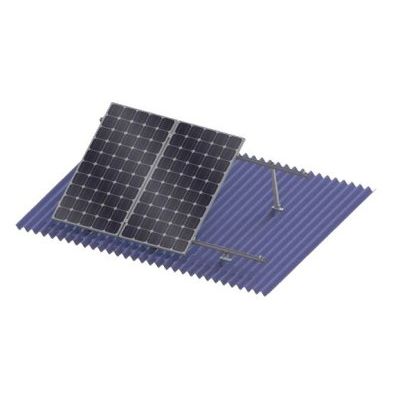

Landpower - Adjustable Tilt Solar Racking System

Adjustable Tilt Solar Racking System is specially designed for easy installation of solar panel to tilt a certain angle with the roof. The mounting system design provides a strong and sturdy support for solar modules, it can be a fixed angle or adjustable such as 10-15 degree, 15-30 degree and 30-60 degree for your requirement. Using our innovative Rail and pre-assembled components like tilt-in T module, clamp kit and highly pre-assembled tilt leg, This Metal Adjustable Tilt Solar Mounting makes the installation easy and quick to save your labor cost and time.

Landpower - Flat Roof Solar Panel Long Side Ballast Mounting

The Flat Roof Solar Panel Long Side Ballast Mounting system is engineered for securely mounting large solar panels on flat or trapezoidal roofs. Designed for panels with extended frames, it allows flexible mounting along the panel's long side. Featuring wind deflectors and an EPDM mat, the system ensures robust contact with the roof, accommodating tolerance adjustments for diverse surface qualities. It is constructed from high-grade aluminum alloy Al 6005 T5 and stainless steel 304, ensuring durability and resistance to environmental stressors. The system's installation is streamlined, requiring few components and preassembled parts. It complies with AS/NZS 1170 and EN 1090 standards, supporting wind speeds up to 60 meters per second and snow loads below 1.4 kN/m². The design includes adjustable support components for varied panel dimensions, making it a versatile choice for flat and trapezoidal roof applications. It offers a warranty of 12 years with a lifespan projection of 25 years.

Pitched Roof Mounting System

Landpower - Tile Roof Mounting System

Landpower Tile Roof Solar Mounting System is engineered forthe maximum flexibility possible in designing and planning for various tile roof solar system installation. It is applicable to install the usual module to flush with the pitched roof. Using our innovative Rail and pre-assembled components like tilt-in T module, clamp kit and various hooks our Tile Roof Mounting makes the installation easy and quick to save your labor cost and time.

Landpower - Metal Roof Solar Mounting System

Landpower Metal Roof Solar Mounting System is engineered forthe maximum flexibility possible in designing and planning for various metal roof solar system installation. It is applicable to install the usual module to flush with the pitched roof. Using our innovative Rail and pre-assembled components like tilt-in T module, clamp Kit and various holding devices (like hanger bolt and L bracket etc.) our Metal Roof Mounting makes the installation easy and quick to save your labor cost and time.

Ground Mounting System

Landpower - AL-Ground Mounting System

Landpower AL-Ground Mounting System (Almost 100% of solar rack components are made of Aluminum )is equipped with components which made of aluminum for mounting on concrete strip foundations or ground screw This system highlight quick installation, delivered by preassembled parts, it highly minimized the installation processes. It provides a strong and sturdy mounting structure that is suitable for use in high wind and snow load environments.

Pitched Metal Roof Mounting - Trapezoidal Roof Mounting

Landpower - Mini Rail Metal Roof Solar Mounting System

The Mini Rail Metal Roof Solar Mounting System offers an efficient and economical solution for installing solar panels on trapezoidal metal roofing. This system is designed with simplicity in mind, utilizing minimal components such as mid clamps, end clamps, and earthing accessories, which facilitate fast installation. The aluminum mini rails come with adhesive rubber pads and four-thread tapping screws with sealing washers, providing secure attachment to the roof. Engineered for durability, the system is constructed with Aluminum 6005-T5 and stainless steel A2 (304) EPDM materials, ensuring anti-corrosion properties through anodizing. It supports installation on roofs with a tilt angle ranging from 10 to 60 degrees, accommodating a building height of up to 20 meters, and can withstand wind speeds of up to 60 m/s and snow loads of 1.4 KN/m2. Meeting international standards such as EN 1090 and AS/NZS 1170, it comes with a ten-year warranty and is designed for a service life of twenty years.

Pitched Metal Roof Mounting - Tiled Roof SoLar Mounting Systems

Landpower - Adjustable Roof Hook Tile Roof Solar Mounting

Landpower's Adjustable Roof Hook Tile Roof Solar Mounting solution is crafted for various tile types, including flat, slate, and Romania tiles. It features aluminum rails, mid/end clamps, splice connections, and stainless-steel hooks, clip, and cables, ensuring durability and ease of installation. Designed for versatility, it accommodates different roof designs with both fixed and adjustable hooks. The system is compatible with international standards such as EN 1090 and AS/NZS 1170, ensuring reliability under conditions with winds less than 60 m/s and snow loads below 1.4 KN/m2. Made from anodized aluminum 6005-T5 and stainless steel A2 (304), it provides long-term resilience against corrosion. The mounting operates at a roof flush tilt angle between 10 to 60 degrees and can be positioned up to 20 meters high, making it suitable for diverse architectural needs. A warranty of 12 years guarantees performance, with a service life expectancy of up to 20 years.

Pitched Metal Roof Mounting - Flat Roof Solar Mounting-Landscape

Landpower - Flat Roof Ballasted Long Side Solar Panel Mounting System

The Flat Roof Ballasted Long Side Solar Panel Mounting System offers a reliable solution for installing large solar panels on flat or trapezoidal roofs. This mounting system is engineered to facilitate easy and efficient solar panel installation by allowing panels to be clamped along their long sides. Equipped with wind deflectors and an EPDM mat, the system enhances fixing strength by compensating for surface tolerances and firmly gripping the roof. Constructed from high-quality materials such as aluminum alloy Al 6005 T5 and stainless steel 304, it is designed to withstand harsh environmental conditions. The system supports south-facing and East-West panel orientations, features a tilt angle of 10 degrees, and can accommodate building heights up to 20 meters, withstanding wind speeds of up to 60m/s and snow loads up to 1.4KN/m². Preassembled parts simplify installation, and the system complies with standards AS/NZS 1170 and EN 1090, ensuring durable performance with a 12-year warranty and a 25-year lifespan.

Pitched Metal Roof Mounting - Aluminium Ground Mounting Structure

Landpower - Aluminium Ground Mounting System for Solar PV Installation

The Aluminium Ground Mounting System by Landpower Solar is engineered for large-scale commercial solar photovoltaic installations, designed for efficiency and cost-effectiveness. Comprising anodized aluminum components and stainless steel fasteners, the structure promises robust performance and durability. It is tailored for open-field installations, accommodating both framed and frameless solar modules in a portrait arrangement. The system's tilt can be adjusted between 0 to 65 degrees to optimize sunlight capture. The foundation options include ground screws or concrete bases, which offer flexibility depending on site conditions. The main construction material is Aluminum 6005-T5 enhanced by an anodized film for corrosion resistance, meeting international standards such as EN 1090 and AS/NZS 1170. With a straightforward assembly process aided by pre-assembled components like middle and end clamps, the setup time is significantly reduced. It comes with a 12-year warranty and a projected service life of 20 years.
