Lumileds products

Customers now have complete design flexibility to access Lumileds industry leading performance at the die level and customize the phosphor and packaging to best suit their lighting applications with LUXEON FlipChip Royal Blue. LUXEON FlipChip Royal Blue is a real Chip Scale Package (CSP) LED that can be attached by reflow without additional packaging. Traditional wire bonding limits the packing and power density of LEDs. LUXEON FlipChip Royal Blue LEDs can be packaged closer and can be driven at a higher current density, therefore requiring fewer emitters to achieve a higher lumen output at higher lumen densities.

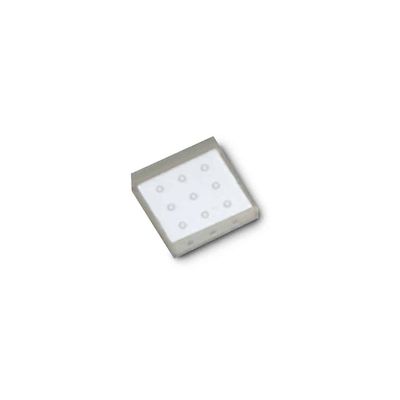

LUXEON 7070 is a multi-die, high power package that provides high luminance from a super robust package to enable cost effective, single optic and directional fixture designs. LUXEON 7070 uses an industry standard 7070 surface mount package with a small Light Emitting Surface (LES). LUXEON 7070 is offered in 70, 80, 90 CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.

Now with Platinum Award Winning NightScape Technology: Broadband white light with less than 2% blue content for better outdoor illumination. The Build Back Better Awards champion innovation, creativity, environmental leadership, and social purpose in buildings. The Build Back Better Awards celebrate and reward the technologies and initiatives that will help us shape projects that point the way to a better future. LUXEON 5050 LEDs are high-power, extremely robust packages that enable cost-effective single optic and directional fixture designs. There are four versions of Lumileds LUXEON 5050 LEDs, each engineered to offer the greatest flexibility and value for your industrial and outdoor lighting solutions.

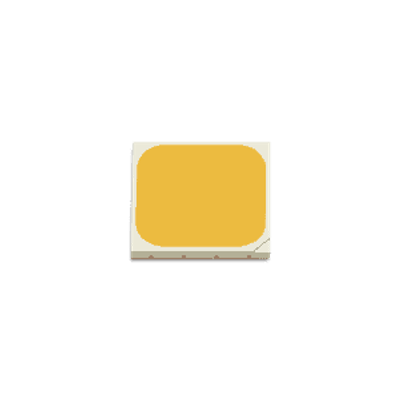

LUXEON 2835 Architectural mid-power LEDs deliver the color quality, consistency, efficacy and longevity required for architectural lighting solutions. They feature an industry standard footprint and are available in a broad range of CCTs, CRIs and voltages to meet your specific needs. 1/9th micro bins as well as 2, 3, 4, and 5-step MacAdam ellipse options make LUXEON 2835 the most flexible and efficient system solution for projects in need of high lumen output and great efficacy. LUXEON 2835 Architectural is a superior overall system solution for projects in need of excellent quality of light, high lumen output and high efficacy.

LUXEON 2835 Commercial mid-power LEDs are the price/performance leader for commercial indoor lighting solutions when lumens per Watt and lumens per dollar are the driving metrics for development. They are available in CCTs from 2700K to 6500K and CRIs of 80 and 90. LUXEON 2835 Commercial has a max current rating of 200mA and features a 1/5^th color bin structure making it a perfect choice for indoor applications where you want the quality and reliability of LUXEON in a commercial application. LUXEON 2835 Commercial leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires.
