Luna Elektrik Elektronik San. Tic. A.Ş products
Electronic Electricity Meters - LSM Series - Single Phase Active-Reactive Meters
Luna - Model LSM10 - Single Phase Active-Reactive Meter
1 phase 2 wire single phase meter. Active-Reactive / Import-Export. Acitve: B/C – Reactive: 2 class. Direct connected. 5(100)A current. 230VAC – 240VAC. reference voltage. 1000 imp/kWh – 1000 imp/kVArh. -40°C…+70°C temperature range. IP54 protection class. 188 segments LCD screen. Optical port communication.
Electronic Electricity Meters - LSM Series - Three Phase Active Reactive Meters
Model LUN23 - Three Phase Active-Reactive Meter
3 phase 4 wire three phase meter. Active-Reactive / Import-Export. Acitve: B/C – Reactive: 2 class. Direct connected. 5(100)A current. 3×230/400VAC reference voltage. 1000 imp/kWh – 1000 imp/kVArh. -40°C…+70°C temperature range. IP54 protection class. 188 segments LCD screen. Optical port communication.
Electronic Electricity Meters - LSM Series - Prepaid Electricity Meters

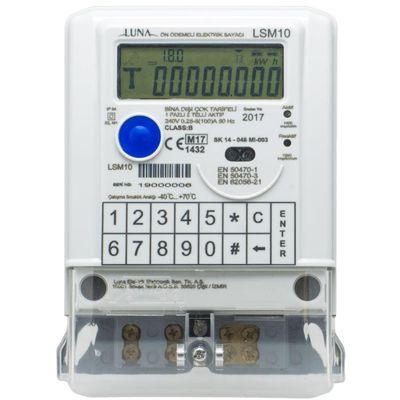

Model LSM10 - Single Phase Prepaid Meter with Keypad
1 phase 2 wire single phase meter. Active-Reactive / Import-Export. Acitve: B/C – Reactive: 2 class. Direct connected. 5(100)A current. 230VAC – 240VAC. reference voltage. 1000 imp/kWh – 1000 imp/kVArh. -40°C…+70°C temperature range. IP54 protection class. 188 segments LCD screen. Optical port communication.
Electronic Electricity Meters - LSM Series - Panel Type Meters
Model LSM18 - Single Phase Panel Type Meter
1 phase 2 wire single phase meter. Active-Reactive / Import-Export. Acitve: B – Reactive: 2 class. Direct connected. 5(60)A current. 230VAC reference voltage. 1000 imp/kWh – 1000 imp/kVArh. -40°C…+70°C temperature range. IP54 protection class. 92 segments LCD screen. Optical port communication.
