Macchi - - Sofinter Group products

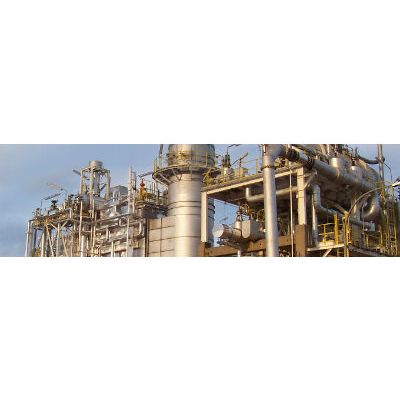

Heat Recovery Steam Generators (HRSGs) for cogeneration plants downstream Gas Turbine up to 260 MWe. Horizontal and Vertical Design – Natural or Assisted Circulation – Multiple Pressure Levels – Supplementary and Fresh-Air Firing Mode with Automatic Changeover. Steam capacity up to 250 t/h – 550,000 lb/h. Steam op. pressure up to 140 barg – 2,030 psig. Steam op. temperature up to 520 °C – 970 °F. Fuel oil and gas fired.

Waste Heat Boilers (WHB) on industrial process heat recovery: FCC (Fluid Catalytic Cracking), Phtalic Anhydride, Steel Mill Sulphur, Visbreaking. Horizontal and Vertical Design – Natural or Assisted Circulation. Steam capacity up to 250 t/h – 550,000 lb/h, Steam op. pressure up to 140 barg – 2,030 psig, Steam op. temperature up to 520 °C – 970 °F, Fuel oil and gas fired.

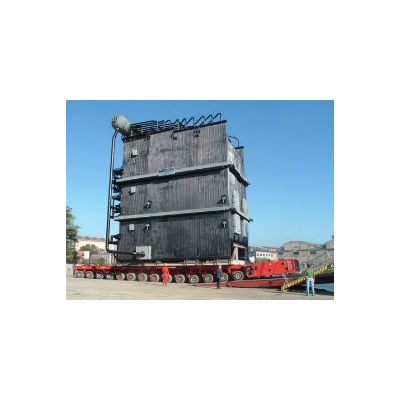

Package Boiler “D type” – Bidrum Type – Compact Design – Horizontal Gas Path – Natural Circulation – Bottom Supported. Steam capacity up to 270 t/h – 600,000 lb/h. Steam op. pressure up to 110 barg –  1,600 psig. Steam op. temperature up to 520 °C – 970 °F. Fuel gas, oil and crude oil fired.

Bidrum Type – Vertical Gas Path – Natural Circulation – Bottom Supported. Steam capacity up to 500 t/h – 1,100,000 lb/h.Steam op. pressure upto 110 barg – 1,600 psig. Steam op. temperature upto 520 °C – 970 °F. Fuel gas, oil and crude oil fired.

Radiant Boiler – Single Drum Type – Fully Welded – Natural Circulation – Vertical Gas Path – Bottom or Top  Supported. Steam capacity up to 600 t/h – 1,300,000 lb/h. Steam op. pressure up to 140 barg – 2,030 psig. Steam op. temperature up to 540 °C – 1,005 °F. Fuel gas, oil and crude oil fired.
