MARSS IP & Security s.r.l. products

IP Controller System

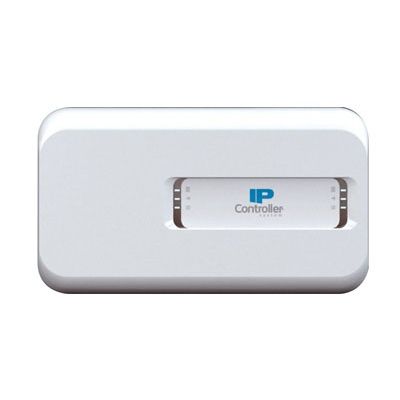

IP Controller - 4 Relays Module in Plastic Tampered Box

4 Relay Module in tampered box, to convert the 4 Open Collector outputs on the IP Controller Modules, in 4 Relays output NC-C-NO 10A250VAC - 30VDC Supply 13.8 Vdc.

IP Controller - Stand-alone IP Module, 2 Inputs/ 2 Outputs in Tampered Plastic Box

Stand-alone IP Module, in tampered box, equipped with 2 inputs and 2 outputs (1 relays + 1 O.C.). Based on MARSSCLOUD technology, it allows 2 activations and 2 status controls via embedded web server and via APP for iOS and Android: all in complete security. Settable Functions: APP starting protect by password; Output activation by icon button with password. The Inputs and Outputs can be labelled by the user (max. 10 characters). Sending Push Notifications; Automatic management of the Dynamic IP and/or No pubblic IP via CLOUD technolgy, for the remote access without the use of external services. Video Management of the Analog and IP videosurveillance, IPV series, by Marss. Simultaneous SSL connections: n. 2 from APP + n. 2 from Web servers. Supply 13.8 Vdc.

MARSS - Stand-alone IP Module

Stand-alone IP Module in tampered box, equipped with 8 inputs and 8 outputs (4 relays + 4 O.C.). Based on MARSSCLOUD technology, it allows 8 activations and 8 status controls via embedded web server and via APP for iOS and Android: all in complete security, thanks the SSL3 protocol. Settable Functions: APP starting protect by password, output activation by icon button with password. The Inputs and Outputs can be labelled by the user (max. 10 characters). Sending Push Notifications; Automatic management of the Dynamic IP and/or No pubblic IP via CLOUD technolgy, for the remote access without the use of external services. Video Management of the Analog and IP videosurveillance system, IPV series, by Marss. Simultaneous SSL connections: n. 2 from APP + n. 2 from Web servers. Supply 13.8 Vdc.

MARSS - Stand-Alone IP Module

Stand-alone IP Module, in DIN rail box, equipped with 4 inputs and 4 outputs (2 relays + 2 O.C.). Based on MARSSCLOUD technology, it allows 4 activations and 4 status controls via embedded web server and via APP for iOS and Android: all in complete security, thanks the SSL protocol. Settable Functions: APP starting protect by password; Output activation by icon button with password. The Inputs and Outputs can be labelled by the user (max. 10 characters). Sending Push Notifications; Automatic management of the Dynamic IP and/or No pubblic IP via CLOUD technolgy, for the remote access without the use of external services. Video Management of the Analog and IP videosurveillance, IPV series, by Marss. Simultaneous SSL connections: n. 2 from APP + n. 2 from Web servers. Supply 13.8 Vdc.

Solar Defender

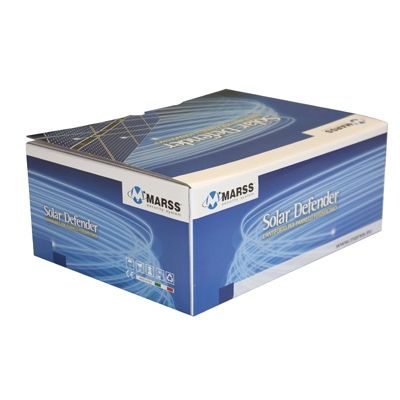

MARSS - Alarm Kit for Photovoltaic Systems

Alarm Kit for photovoltaic systems up to 4 kWp (20 panels) composed of: N. 1 Pocket module cod. ALM-6816 + 50 meters of Plastic Optical Fibre cod FCX-6008 + N. 20 Sigilli Solar Defender for 6mm hole cod. ALM-6006/AZ. Supply and installation of Alarm Kit for photovoltaic systems up to 4 kWp (20 panels) composed of: N. 1 Pocket module cod. ALM-6816 + 50 meters of Plastic Optical Fibre cod FCX-6008 + N. 20 Sigilli Solar Defender for 6mm hole cod. ALM-6006/AZ. Included the necessary electrical and signal connections, materials and charges, at workmanlike manner. MARSS ALM-POCKET4 model type.

Solar Defender at Optical Fibre - Module Bus for Plastic Optical Fiber

Solar Defender - Concentrator for Optical Fiber, 2 Loop, 220V

Concentrator Module for Plastic Optical Fiber Solar Defender 220 V., with 1,7A feeder . Manage 2 line of optical fibre lenght 200 mt for each one, by 2 Loop. Double operation mode selectable by dip-switch: Stand-alone and on BUS (communication with the control panel Solar Defender by owner protocol). Addressing by dip-switch, alarm conditions: alarm detected by fiber interruption. Signal Outputs: alarm (Loop 1, Loop 2), absence of power on the network, battery fault, Life and box tamper. Display with 7 segments, Loop exclusion by dip-switch. Support n.1 12V/1,7A battery. Certifications CE, REACH, RoHS Compliant.

Solar Defender - Concentrator for Optical Fiber, 2 Loop, 12Vcc

Concentrator Module for Plastic Optical Fiber Solar Defender 12 Vcc, without feeder. Manage 2 lines of optical fiber lenght 200 mt for each one, by 2 Loop. Double operation mode selectable by dip-switch: Stand-alone and on BUS (communication with the control panel Solar Defender by owner protocol). Addressing by dip-switch, alarm conditions: alarm detected by fibre interruption. Signal Outputs: alarm (Loop 1, Loop 2), Life, box tamper. Display with 7 segments, Loop exclusion by dip-switch. Operating voltage 13.8 VDC. Absorption of operation 40 mA max. Absorption with 1 Loop alarm 90 mA max. Consumption in alarm with 2 Loop 120 mA max. Certifications CE, REACH, RoHS Compliant.

Solar Defender - Concentrator for Optical Fiber, with Torsion, 2 Loop, 220 V

Concentrator Module for Plastic Optical Fiber Solar Defender with torsion 220 V., with 1,7A feeder. Manage 2 Lines of optical fiber lenght 200 mt for each one, by 2 Loop. Double-mode to detect fiber alarm signals: interruption and torsion. Double operation mode selectable by dip-switch: Stand-alone and on BUS (communication with the control panel Solar Defender by owner protocol). Addressing by dip-switch, alarm conditions: alarm detected by fibre interruption and torsion. Signal Outputs: Alarm by fiber interruption (Loop 1 and Loop 2), alarm by fiber torsion or fire (Loop 1 and Loop 2), absence of power on the network, battery fault, Life and box tamper. Display with 7 segments. Loop exclusion by dip-switch. Certifications CE, REACH, RoHS Compliant.

Solar Defender - Concentrator for Optical Fiber, with torsion, 2 Loop, 12 Vcc

Concentrator Module for Plastic Optical Fiber Solar Defender with torsion 12Vcc. Manage 2 Lines of optical fibre lenght 200 mt for each one, by 2 Loop. Double-mode to detect fiber alarm signals: interruption and torsion. Double operation mode selectable by dip-switch: Stand-alone and on BUS (communication with the control panel Solar Defender by owner protocol). Addressing by dip-switch, alarm conditions: alarm detected by fiber interruption and torsion. Signal Outputs: Alarm by fiber interruption (Loop 1 and Loop 2), alarm by fiber torsion (Loop 1 and Loop 2), Life and box tamper. Display with 7 segments. Loop exclusion by dip-switch. Certifications CE, REACH, RoHS Compliant.

Solar Defender at Optical Fibre - Module Stand-Alone for Plastic Optical Fiber

Solar Defender - Pocket GSM Module for Optical Fiber, 1 Loop, 220V

Pocket GSM Module for Plastic Optical Fiber Solar Defender with torsion 220 V., with 1,7A feeder. Reporting up to 5 phone numbers of the following events by sending SMS: interruption fiber; absence and recovery of power on the network, battery fault, box tamper, recovery GSM; Alarm input 1 and input 2. Manage 1 Lines of optical fiber lenght 200 mt. Mode to detect fiber alarm signals: interruption. Operation mode Stand-alone. Programming and management by sending preset SMS. Signal Outputs: Alarm by fiber interruption, Life, alarm tamper box, fault GSM, absence of power on the network, battery fault. N. 2 inputs on board to use the Pocket GSM Module as a stand-alone dialer comunicator GSM. Ring function to output enable, output enable remotely through sending SMS. Certifications CE, REACH, RoHS Compliant.
