M.B. Control & Systems Pvt. Ltd. products

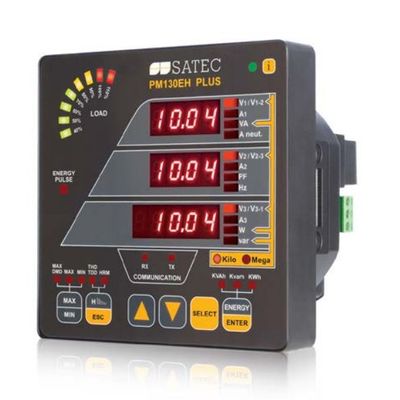

The PM130 EH+ is a multifunctional 3-phase power meter. This series provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering. It is also suitable for utility substation automation because of its support of the industry standard DNP V3.0 and Modbus RTU protocols, as well as its I/O capabilities (using DI/DO module). The meter can provide more than 80 parameters via local display and more than 100 parameters via communication interface. The modular design enables users to assemble a system meeting their specific needs.

SR20 series pyranometers are of the highest category in the ISO 9060 classification system : Secondary Standard. This solar radiation sensor is used where the highest measurement accuracy is required. It measures the solar radiation received by a plane surface, in W/m2, from a 180^o field of view angle. SR20 secondary standard pyranometer enables you to attain the highest measurement accuracy and excels in demanding applications. In order to improve overall measurement accuracy, Hukseflux effectively targeted two major sources of measurement uncertainty : calibration and “zero offset a”. The initial calibration uncertainty is reduced to less than 1.2%, an improvement of 15% relative to competing models. The “zero offset a” specification of SR20 is 5 W/m2 unventilated whereas competing models state 12 W/m2 unventilated and 7 W/m2 ventilated.

Find out more on the world’s most innovative, most advanced Power Quality IEC 61850 meter for your power networks. SATEC eXpertMeterTM PM180 is a high performance analyser that allows versatile uses. The high performance of the PM180, together with the unique flexible design of the expansion cards and the versatile installation on DIN rail, 4" round or 92x92mm cutout, enables its use in a large variety of applications, in which it can substitute several other devices—saving costs, space and complexity.

SATEC EM132/ EM133 is a Smart DIN Rail Multi-Function Transducer with a local display. It is based on SATEC`s best seller PM130 PLUS with an off-the-shelf LCD display (similar to the BFM136 display). The EM132 provides the full functionality of the PM130P PLUS combined with energy measurement and battery backup for the real time clock. The EM132 is fully compatible with all PM130 PLUS modules.

The ETC-II offers full control of entire power systems, from anywhere, anytime, via an Internet/Ethernet connection and supports various protocols. Its compact design and easy DIN/wall mounting allow for ease of use. The ETC-II Data Server provides the user with a mechanism that allows data accumulation from instruments in a background mode, using Modbus protocol (Modbus master). The instruments and register range for polling are defined in the polling tables. A total of 64 address ranges can be defined. The data is stored in a buffer, where 120 16-bit registers are reserved for each server address range. Users can specify up to 120 contiguous registers (per address range) in the connected instrument that would be continuously polled and updated in the server register array. Any number of device register ranges can be defined for each instrument.

The PM175 is a compact, multi-function, three-phase AC power meter and power quality analyzer specially designed to meet the requirements of users ranging from electrical panel builders to substation operators. Bright 3-row LED display provides easy local meter readings. The display module is freely detachable and can be located at a distance of up to 1000 meters from the device. Two communication ports allow local and remote automatic meter readings and setup though the supplemental communication or user data acquisition software. (Various communication preferences are made available for remote communications with the meter inclusive of public telephone lines, LAN and the Internet.)

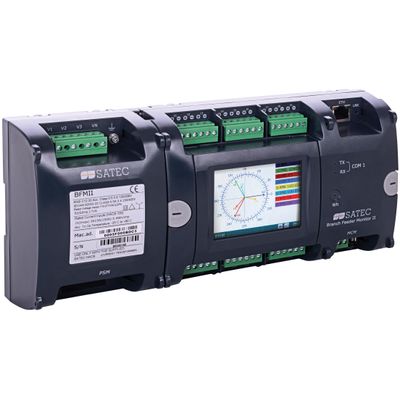

SATEC’s BFM-II is the second generation of Branch Feeder Monitor, providing energy management for multi-point power solutions. Ideal for both new and retrofit projects, the BFM-II automatically provides metering, demand and energy readings, logging and multi-tariff (TOU) data. The BFM-II monitors up to 18 three-phase circuits, 54 single phase circuits, or any combination of single or three-phase circuits. This flexibility makes the BFM-II perfect for multitenant facilities such as residential projects, office buildings and shopping malls. Its modular design offers a selection of 18, 24, 30, 36, 42 or 54 channels to fit any requirement and to easily fit into existing panel boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.
