Mechatronics products

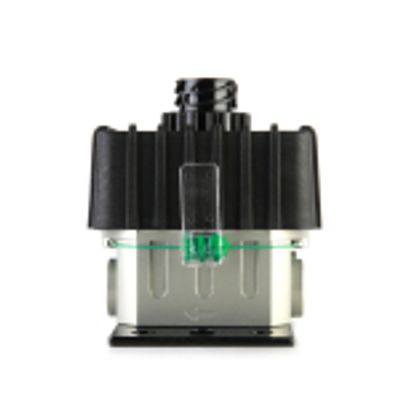

Differential fuel flowmeter Eurosens Delta is used to measure the fuel consumption of diesel engine. Most engines have supply and return line. To obtain fuel consumption of engine it is necessary to measure both fuel flows and  calculate the difference. This task looks not easy but with Eurosens Delta you can receive accurate results immediately after the installation without any calibration.

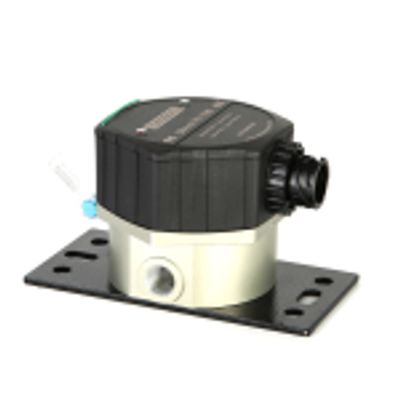

Eurosens Direct fuel consumption sensors are designed to measure fuel consumption of diesel engines or other consumers in the range from 1 to 3000 liters per hour. Direct flowmeters have a wide range of modifications, (100, 250, 500, 1500, 3000 liters per hour), can have built-in display and different output interfaces. There are versions with threaded and flange connections.

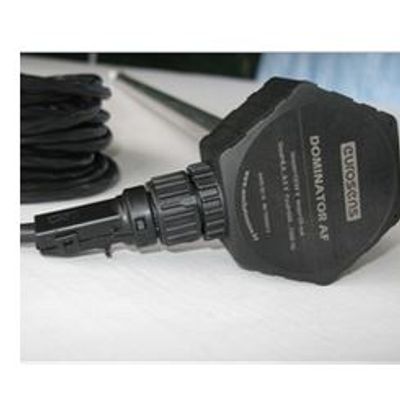

Now you do not need to keep in stock a whole range of sensors with different interfaces. EUROSENS Dominator AF replaces the sensors with analog output to 5V, analog output to 10V, with frequency output in the range of 500 – 1500 Hz.

Sensor with 2 digital RS-232 and RS-485 interfaces, modular design and built-in fuel theft detectiongh the bottom of the tank.

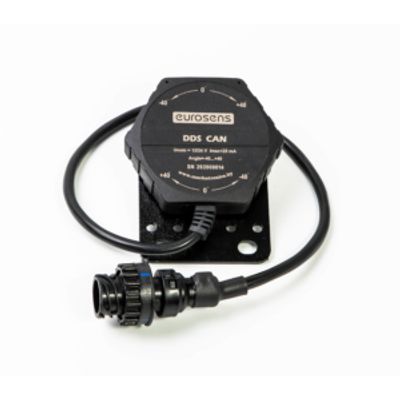

Leaf spring deflection sensor with digital interface and improved precision.

Special service kit Eurosens Destination for professional customization of Mechatronics equipment. Most of our Eurosens sensors contain inside a powerful modern 32-bit microprocessor that continuously calculates various parameters (current fuel level, fuel consumption, fuel volume).To obtain the correct data from Eurosens fuel level sensors and fuel flow sensors, they must be configured by an engineer. With the help of Eurosens Destination, you can configure the output types of our level sensors, as well as their calibration coefficients and calibration tables. It is also used to introduce correction coefficients into Eurosens Direct and Eurosens Delta fuel flow meters, if necessary.

Universal interface converter Eurosens Destination 02 is designed for professional adjustment of Eurosens sensors, as well as other third-party equipment. It contains interfaces K-line, RS-232 and RS-485. Contains a power converter to power the connected sensor from the computer without using external power.

Universal interface converter Eurosens Destination CAN  includes full pack of interfaces : K-line, RS-232, RS-485 and CAN bus. Contains a power converter to power the connected sensor from the computer without using external power.
