Motive's DELPHI 56-132 series of three-phase motors are engineered to meet international standard regulations, ensuring superior performance and reliability. These motors feature a closed, externally ventilated design and are constructed from die-cast aluminum alloy for sizes up to 132, while larger sizes up to 355 are built with robust cast iron. Designed for versatility, they accommodate multiple voltages and frequencies (50/60Hz) and offer insulation classes of F (or H upon request) and S1 continuous duty service. Rated for IP55 protection, higher protection levels like IP56, IP66, and IP67 are available on request. The DELPHI series provides efficiency classes IE2, IE3, and IE4 under IEC 60034-30-1, making them suitable for various industrial applications, especially where high efficiency and energy savings are crucial. These motors also feature dynamic rotor balancing, reinforced bearing seats with embedded steel inserts from Type 90 onwards, and tropicalized windings, which make them highly durable and reliable for long-term operation. Additionally, their connection boxes are designed for optimal sealing and flexibility, with cable glands and rotatable boxes for ease of installation. To prevent rust, they are painted with RAL9006 silver paint. The motors ensure lower temperature rise and energy savings thanks to the use of magnetic FeV plates, replacing standard Fe P01 iron plates.

Motive's DELPHI three-phase motors, encompassing sizes 160 to 355, are designed to meet rigorous industrial standards with their cast iron frames and multiple advanced features. The motors adhere to standardized dimensions per IEC 72-1 and support multiple voltage and frequency operations (50/60Hz). They come with F class insulation, with optional H or H+ (delfire) upon request, ensuring high thermal endurance. The motors are rated for S1 continuous duty service and boast IP55 protection, with higher protection levels like IP56, 66, and 67 available on request. The tropicalized winding and reinforced insulation make these motors suitable for harsh environments and inverter power supplies, specifically recommending insulated bearings for motors from 110kW upwards to avoid electrical erosion. Efficiency is categorized under IE2, IE3, and IE4 standards per IEC 60034-30-1. The junction box, adhering to IP65, is made of aluminum for sizes up to 280 and is adjustable in 90° steps. Self-lubricating ZZ bearings reduce maintenance need in sizes 160 to 280, while sizes from 315 upwards have grease nipples and roller bearings to handle high radial loads. The motors incorporate three standard PTC thermistors for protection and feature lifting eye bolts for ease of handling. The terminal box can also be mounted laterally upon request. Additionally, the company offers detailed manuals, certificates, and catalogs for download, highlighting compliance and specifications.

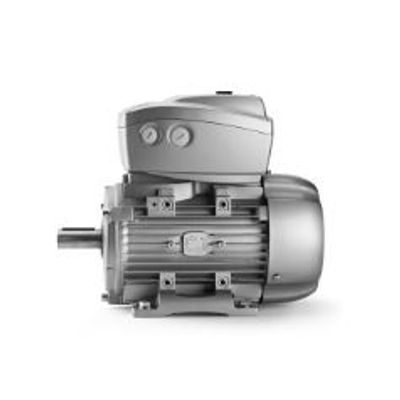

The NEO-WiFi by Motive is an innovative integrated motor-inverter system designed to enhance efficiency and reduce costs associated with the installation, wiring, and programming of motor-inverter setups. Prior solutions faced challenges with exposure to outdoor elements and the separation of the motor-inverter from the control interface. The NEO-WiFi overcomes these issues with an IP65-rated design for dust and water protection, a removable control panel that can be operated wirelessly, and power supplied through induction when placed in its housing or via rechargeable lithium batteries. It offers advanced features typical of modern inverters but distinguishes itself with a user-friendly, turnkey approach. Manufacturers of various machinery, such as pumps and fans, can now provide a comprehensive 'plug-in' product that reduces the need for complicated and risky installations. The system supports multiple motors, allows remote programming and control via smartphones, tablets, or PCs, and is suitable for diverse environments from industrial to commercial and residential settings.

The ROBUS-A gearbox series by Motive is an extension to the renowned ROBUS range, designed to deliver superior performance and adaptability in various industrial applications. Featuring a single-piece aluminum body, these gearboxes strike a perfect balance between weight, rigidity, and precision. The modular design integrates a detachable output flange and foot base, facilitating quick and effortless conversion between foot and flange mounting. Additionally, the removable base, equipped with multiple fixing holes, ensures compatibility with most gearbox brands. With IEC flanges and hollow shafts, ROBUS-A allows for direct mounting of standard motors, while its unique construction supports versatile mounting positions across sizes. Technically advanced with ZZ autolubricating bearings on both input and output shafts and four interchangeable plugs including a breather and level plug, this gearbox enhances efficiency and prolongs bearing life. Key mechanical parts are securely locked in place with snap rings and spacers, ensuring optimal absorption of axial thrust.
