Nebula products

Battery Test Solution - Cell Test System

Nebula Electronics - Battery Cell Balancer

Given the poor overcharge resistance of lithium battery packs, inconsistencies in cell performance, working temperature, and other factors can lead to significant difference in the final battery after a period of use, significantly impacting its life expectancy and system safety. The Nebula Portable Battery Cell Repair and Balancing System takes charge of cycle tests, effectively preventing the battery from deteriorating due to imbalance and inconsistency, and significantly extending its service life. Output Voltage: 1500mV-4500mV. Voltage Measurement Range: 100mV-4800mV. Voltage Accuracy: ±(0.05%+2) mV. Charging/Discharging Current: 100mA-5000mA | 1mA-5000mA, Supports pulse charging; automatically limits current to 3A after prolonged overheating. Current Accuracy: ±(0.1%±3) mA. Operating Temperature: 5℃~45℃. System features: Cycle test with dynamic current, Energy feedback, Simulate according to the battery actual working condition, Software easy to program, Test reports available, Perfect protection functions, Channel parallel available. The device employs an independent modular structural design, facilitating maintenance; even if a single module malfunctions, it does not impede the normal functioning of the other modules. Information pertaining to repair voltage, current, battery status and other relevant data can be shared. It boasts an impeccable safeguard system, precluding any possibility of over-current or over-voltage when in operation. The system is equipped with polarity protection, reverse connection prevention, and other protective features. The autonomous display is devised for effortless observation of battery condition and operation assessments. Featuring an Ethernet interface, it can be managed via the associated computer software.

Nebula Electronics - Battery Cell Cycler

Nebula NEEFLCT series is a regenerative battery cycling system with modular design to demands across all tiers of the battery value chain including research and development, pilot production, production testing, and quality control. The discharge lower limit voltage can be set to a negative value for a complete discharge test (±10V）. It enables seamless high-current testing of battery cells within the broad current range of 100 amps to 3000 amps. Leveraging its regenerative power supply, a significant portion of the consumed energy is efficiently harnessed through the DC link or reintegrated into the grid, maximizing sustainability and cost efficiency. nnVoltage: -5V~5V | -10V ~10VnCurrent Range: 100A~3000AnVoltage Accuracy: 0.02% F.S.nCurrent Accuracy: 0.03% F.S. Supports auto scaling.nCurrent Rise/Fall: ≤ 4ms.nDriving Profile Simulation: 20ms.nOperating Mode: CC/CV/DC/DV/CP/DCIR/DR/Impulse/Activation.nSampling Rate: 10ms | 1ms.

Battery Test Solution - Module Test System

Nebula Electronics - Battery Cell Balancer

Given the poor overcharge resistance of lithium battery packs, inconsistencies in cell performance, working temperature, and other factors can lead to a significant difference in the final battery after a period of use, significantly impacting its life expectancy and system safety. The Nebula Portable Battery Cell Repair and Balancing System takes charge of cycle tests, effectively preventing the battery from deteriorating due to imbalance and inconsistency, and significantly extending its service life. Output Voltage: 1500mV-4500mV. Voltage Measurement Range: 100mV-4800mV. Voltage Accuracy: ± (0.05%+2)mV. Charging/Discharging Current: 100mA-5000mA | 1mA-5000mA, Supports pulse charging; automatically limits current to 3A after prolonged overheating. Current Accuracy: ± (0.1%±3)mA. Operating Temperature: 5℃~45℃. String: 24. System features: 1. Cycle test with dynamic current. 2. Energy feedback. 3. Simulate according to the battery actual working condition. 4. Software easy to programed. 5. Test reports available. 6. Perfect protection functions. 7. Channel parallel available. FEATURES: The device employs an independent modular structural design, facilitating maintenance; even if a single module malfunctions, it does not impede the normal functioning of the other modules. Information pertaining to repair voltage, current, battery status and other relevant data can be shared. It boasts an impeccable safeguard system, precluding any possibility of over-current or over-voltage when in operation. The system is equipped with polarity protection, reverse connection prevention, and other protective features. The autonomous display is devised for effortless observation of battery condition and operation assessments. Information pertaining to repair voltage, current, battery status and other relevant data can be shared. Featuring an Ethernet interface, it can be managed via the associated computer software.

Nebula Electronics - Portable Battery Module Cycler

Nebula portable battery module cycler is a multi-purpose product designed specifically for high-power Li-ion battery manufacturing, development, testing, and servicing. It features compact size, large operating envelope, precise measurement as well as portability. The integrated touch screen with intuitive HMI provides the easy use of the system for simple tasks yet it can be also controlled by more sophisticated control and automation software to run highly dynamic transient cycles. The typical application of such as product ranges from battery routine maintenance, DCIR testing, battery aging test to various R&D test runs in laboratory.

EV Chargers & ESS Solution - EV Charger

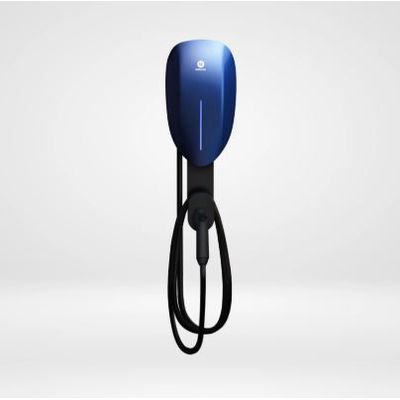

Nebula - 7kW/11kW AC EV Charger

The Nebula MIK PRO series adds intelligent charging capabilities with its own app, enabling features such as shared charging, timer charging and economical charging, as well as double anti-theft protection. The higher quality housing material and design make it resistant to extreme cold, rain, snow, sand, dust, high temperatures and other adverse weather conditions. It is equipped with Nebula's self-developed intelligent app that facilitates the management of charging time and the sharing of EV charger, thereby avoiding overcharging and preserving battery life. The app can generate the most cost-effective charging plan for you based on peak and valley times of electricity bills. Boasting an IP54 rating for overall protection, it operates in a wide range of temperatures (-30° to 55°), high humidity (less than 95%) and altitudes (below 2000m). The artistic curve design, inspired by art, makes the MIK PRO Series both a functional necessity and an aesthetically pleasing decoration that complements your car with 5 color choices. The charger offers ten layers of protection for driving safety, including short circuit protection, leakage protection, overcurrent protection, overheating protection, emergency stop protection, lightning protection, rain protection, overvoltage protection, undervoltage protection, and grounding protection.
