NEO Messtechnik products

The NEO PQA 8000 is an advanced mobile power quality analyzer designed to address the challenges of modern electrical measurement. It offers the unique ability to measure supraharmonic currents and voltages up to 150 kHz/500 kHz, making it integral for power quality engineers working in high-frequency environments. The device supports continuous data recording at full sampling rates, and can determine grid impedance with an extension box, covering up to 150 kHz or 450 kHz. Its remote accessibility via TeamViewer© or Anydesk© ensures seamless operation even in enclosed spaces, while offering robust support with a CAT IV 600V safety rating. This analyzer boasts high accuracy of 0.05%, a dynamic range from 0.5mA to 150kA, and precise sampling capabilities at 124kS/s or 1MS/s. Featuring a Windows-based operating system with a multi-touch display, the PQA 8000 is user-friendly, enabling straightforward setup, measurement, analysis, and report generation. Compliant with numerous international standards, the analyzer excels in applications spanning public grids, renewable energy, motors, and electrical equipment diagnostics.

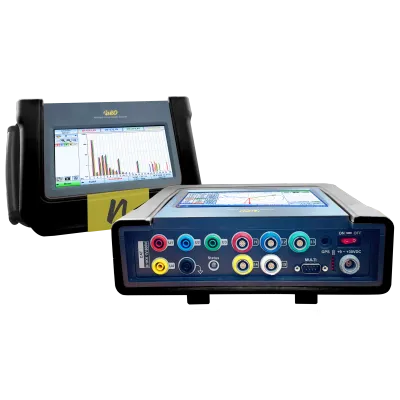

The NEO PQA 7000 is a sophisticated mobile power quality analyzer designed to address the modern challenges faced by engineers in the field of power quality assessment. Integrated with advanced features, it enables precise monitoring and evaluation of electrical performance. It operates with a high sampling rate of 48 kS/s and a bandwidth of 20 kHz, ensuring measurements with an accuracy of 0.05%. The device supports high-frequency voltage and current evaluations up to 20 kHz, stored on a substantial 256 GB of expandable data space. Designed with flexibility in mind, users can choose from a variety of display setups and customization options, including Syncing multiple devices via PMU functionality. It also provides seamless remote connection capabilities, allowing monitoring and configuration through applications like TeamViewer. The intuitive software offers comprehensive data analysis and report generation compliant with international standards such as IEC 61000-4-30 Ed.3. The system emphasizes safety with isolated high-voltage inputs and supports a wide range of applications including harmonics, flicker, and waveform analysis.

The PV Master 10 is an advanced multi-channel IV curve tracer designed by NEO Messtechnik to enhance the evaluation and monitoring of photovoltaic systems. Engineered to handle up to 1500V and 30A (45A on request) per string, it accommodates testing across a variety of PV plants. The PV Master 10 adheres to IEC62446-1 Category 2 standards, ensuring the efficient operation and longevity of solar installations. Utilizing state-of-the-art technology, it offers up to 20 channels for simultaneous measurements, and with extension boxes, it can measure multiple strings quickly. This tool captures a high number of data points for precise assessment, facilitating PV park testing up to 500 MWp. It includes a smart, touch-operated interface and intuitive software that provides comprehensive diagnostic features, covering fault detection and automatic reporting capabilities. The PV Master 10 is equipped with an integrated PC running Windows 10 IoT, and supports data export to various formats, making it a versatile and indispensable tool for solar inspection and maintenance.

The NEO PV Master is an advanced solar plant diagnostic tool designed for efficient and thorough inspection of photovoltaic systems. Utilizing a fully-automatic AI-based diagnostic system, it offers multiple input channels supporting up to 1500V DC, allowing for simultaneous analysis of numerous PV strings and arrays. The device enables quick fault detection including mismatch losses, hotspots, potential induced degradation (PID), and more. Equipped with sophisticated software, it provides intuitive menus for setup, measurement, analysis, and automatic diagnostics. Users can generate detailed reports directly onsite with integrated reporting tools. Technical specifications include a multi-touch full HD display, Windows 10 IoT operating system, and a variety of input options for voltage, current, and temperature measurement. The PV Master range includes models with varying channel capacities, offering flexibility for different inspection needs. This equipment is indispensable for accurate solar plant diagnostics and maintenance, optimizing performance and identifying critical issues with precision.
