NewSolar Energy Co. LTD products

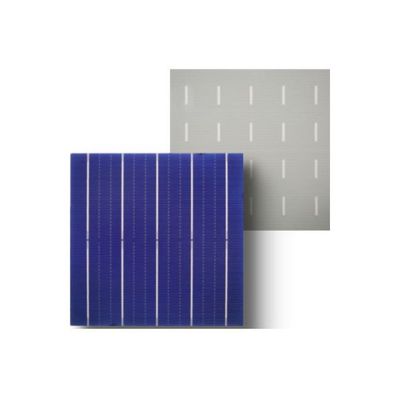

Dimension: 157 mm x 157 mm ± 0.5 mm, Wafer Thickness: 200 um± 30 pm., Front side (-): 0.7±0.1mm silver segmented busbar. Blue anti-reflecting,coating(silicon nitride), Back side ( + ): 1.8±0.2mm wide silver/aluminum soldering pads, aluminum back surface field.,

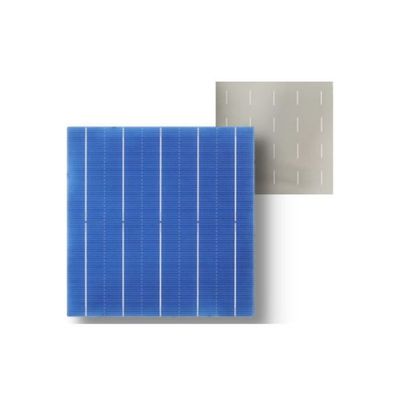

Dimension: 156.75 mm x 156.75 mm ±0.25 mm, Wafer Thickness: 200pm ± 30 pm., Diagonal: 210mm ± 1mm (round chamfers), Front side ( - ): silver bus bars; Blue/Purple silicon nitride anti-reflection coating, Back side (+}: silver bus bars; Full-surface aluminum BSF.

Dimension: 156.75 mm x 156.75 mm ± 0.25 mm. Cell Thickness: 200pm ± 30 pm. Front side (-): Silicon nitride anti-reflection coating 0.7 mm silver busbar. Back side ( + ): Full surface aluminum back surface field 1.4 mm (silver) discontinuous soldering pads,

Dimension: 156.75 mm x 156.75 mm ± 0.25 mm. Cell Thickness: 200pm ± 30 pm. Front side (-): Silicon nitride anti-reflection coating 0.7 mm silver busbar. Back side ( + ): Full surface aluminum back surface field 1.4 mm (silver) discontinuous soldering pads.

Dimension: 158.75 mm x 158.75 mm ±0.5 mm. Wafer Thickness: 190 um± 30 pm. Front side (-): 0.1±0.05mm silver segmented busbar. Blue anti-reflecting,coating(silicon nitride). Back side ( + ): 1.8±0.2mm wide silver/aluminum soldering pads, aluminum back surface field.

Dimension: 158.75 mm x 158.75 mm ±0.5 mm. Wafer Thickness: 190 um± 30 pm. Front side (-): 0.08±0.4mm silver segmented busbar. Blue anti-reflecting,coating(silicon nitride).Back side ( + ): 1.8±0.2mm wide silver/aluminum soldering pads, aluminum back surface field.

Number of Cell: 60 cells, Dimension: 1640x992x40 mm, Weight: 20.0 Kgs, Junction Box: IP65/IP67 rated (3 bypass diodes), Connectors: MC4 compatible, Mechanical load test: 5400Pa.

Number of Cell: 72 cells. Dimension: 1956x992x40 mm. Weight: 23.0 Kgs. Junction Box: IP65/IP67 rated (3 bypass diodes). Connectors: MC4 compatible. Mechanical load test: 5400Pa.

Number of Cell: 60 cells, Dimension: 1640x992x40 mm, Weight: 20.0 Kgs, Junction Box: IP65/IP67 rated (3 bypass diodes), Connectors: MC4 compatible, Mechanical load test: 5400Pa.

Number of Cell: 72 cells, Dimension: 1956x992x40 mm, Weight: 23.0 Kgs, Junction Box: IP65/IP67 rated (3 bypass diodes), Connectors: MC4 compatible, Mechanical load test: 5400Pa.
