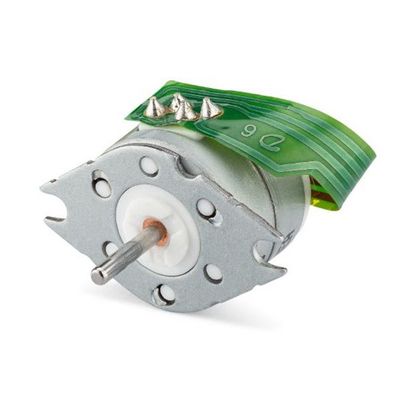

Category : Standard Permanent Magnet. Part Number : PM15S-020_bi_12V. Frame Width [mm] : 15. Frame Height [mm] : 15. Frame Length [mm] : 12. Steps per Rev. of Motor : 20. Step Angle [degrees] : 18. Drive Sequence : bipolar constant voltage. Drive Voltage [V] : 12. Resistance [Ohms] : 100. Magnet Type : MS70. Magnet Material : bonded Nd-Fe-B. Holding Torque [mN-m] : 2.4. Max Speed [pps] : 1800. Max Speed [rpm] : 5400. Insulation Resistance [MOhm Min. at DC100V] : 100. Dielectric Strength [AC V for 1 min] : 500. Magnet Wire Insulation Class : CLASS E. Operating Temp - Lower [degrees C] : -10. Operating Temp - Upper [degrees C] : 50. Storage Temp - Lower [degrees C] : -30. Storage Temp - Upper [degrees C] : 80. Operating Hum. - Lower [percent RH] : 20. Operating Hum. - Upper [percent RH] : 90. Series Step Angle [degrees] : 18 - 18. Series Max Torque [mN-m] : 2.4.

Category : Standard Round Brush. Part Number : M22E-13. Frame Width [mm] : 22. Frame Height [mm] : 22. Frame Depth [mm] : 18. Operating Voltage - Lower [V] : 3. Operating Voltage - Upper [V] : 4. Rated Voltage [V] : 3.5. Rated Load [mN per m] : 9.3. Rated Speed [rpm] : 4000. Rated Current [mA] : 1800. No Load Speed [rpm] : 6100. No Load Current [mA] : 120. Starting Torque [mN per m] : 27. Starting Current [mA] : 6481. Brush Material : Metal. Shaft Diameter [mm] : 2. Shaft Length [mm] : 5.3. Mass [g] : 25.1.
