nVent RAYCHEM BTV self-regulating trace heating cables provide freeze protection and process temperature maintenance, up to 150 °F/65 °C, of pipes/vessels without steam cleaning requirements. They withstand intermittent exposure to 185 °F/85 °C and are hazardous area approved. The polyolefin outer jacket (-CR) is suitable for mild inorganic solutions. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.

nVent RAYCHEM VPL power-limiting trace heating cables are mainly used for process temperature maintenance applications that require steam cleaning, up to 455 °F/235 °C and withstand intermittent exposure to 500 °F/260 °C. VPL offers high power output  at high temperatures, which can reduce the number of heating cables required and is hazardous area approved. Also suitable for freeze protection. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.

nVent RAYCHEM ElectroMelt EM2-XR is a rugged and robust self-regulating heating cable used to prevent snow and ice formation on ramps, loading bays, external stairs and access ways. Power output is 90 W/m at 0 °C.

The nVent RAYCHEM JBS-100-ECP-A is a power connection/ electronic controller combination for nVent RAYCHEM polymeric and MI cables. Utilizing the features of the RAYCHEM JBS-100-A single-entry power connection with junction box, along with an indicating electronic controller, this assembly allows for local control of a heating circuit

nVent RAYCHEM Controller assembly for the nVent RAYCHEM 920 series, which is a compact, full featured, microprocessor based, single-point heat-tracing control and monitoring systems for freeze protection and temperature maintenance.

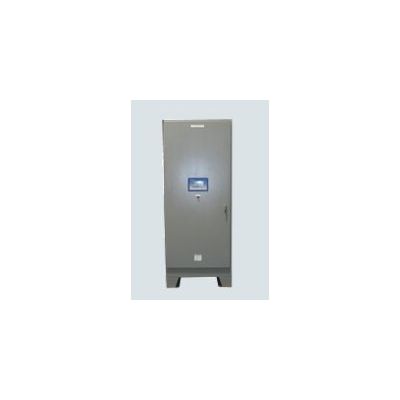

The Raychem NGC-30 is a state of the art, multi-circuit electronic control, monitoring and power distribution system for heat tracing used in process temperature maintenance and pipe freeze protection applications. The Raychem NGC-30 system can control up to 260 circuits with multiple networked panels. Each panel can typically control 40 individual heat tracing circuits and is available with power distribution as an option. The advanced User Interface Terminal uses touch screen technology to provide fast, intuitive programming, monitoring and fault handling.

The nVent RAYCHEM NGC-40 is an advanced, electronic, single-point control, monitoring and power distribution system in a multipoint industrial heat-tracing panel used for process-temperature maintenance and freeze protection applications. The single control module per heat-tracing circuit provides the highest reliability architecture for heat-tracing applications. The NGC-40 single-controller architecture ensures that problems occurring with one heat-tracing system stay isolated without affecting the other circuits.
