Nyle Systems, LLC products

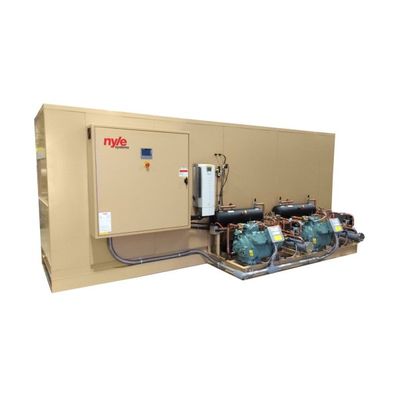

HT systems use 40–60% less energy than gas-fired or steam dry kilns. Operates at a temperature range from 80°F – 160°F (26° – 71°C). Corrosion resistant epoxy coated aluminum cabinets and specially coated dehumidification coils for an extra long life. Precision controls using our NSC100 advanced control system which includes a color touch screen, the ability to use schedules, data logging and monitoring control via a web browser. Softwood drying capacity is 2,500 to 73,000 board feet. Hardwood drying capacity is 8,000 to 225,000 board feet. Water removal from 420 lbs to 16,200 lbs of water per day. Set pitch and sterilize with ease. Systems include heating, circulating fans, controls, prewired electric panels, automatic over-temperature vents, and ductwork. Combine units in a chamber to increase drying capacity Multiple power configurations available. HT systems are available both with and without drying chambers.

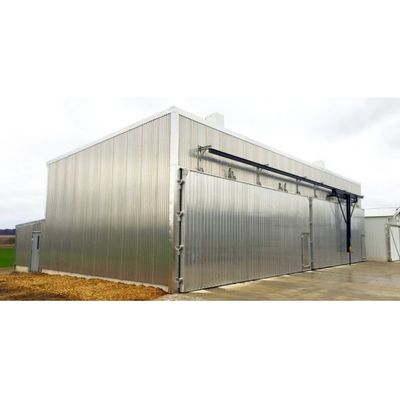

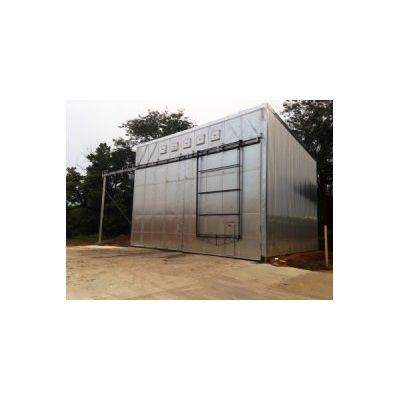

Our cutting-edge kilns surpass conventional standards, offering remarkable capabilities that set new benchmarks in the industry. Discover what makes our kilns stand out: Unmatched Load Capacity: Our kilns handle substantial loads of up to 350,000 BF, ensuring efficient processing of large volumes of lumber. Versatile Temperature Range: Operating at a temperature range of 180°F to 250°F (82°C to 120°C), our kilns accommodate a wide variety of drying requirements. Precision Control Systems: Our easy-to-use precision control systems grant complete control over the drying process, ensuring consistent and accurate results. Proportional Venting Systems: Our proportional venting systems efficiently regulate airflow, maintaining optimal conditions within the kiln. Comprehensive Turnkey Packages: We offer installation services and comprehensive turnkey packages suitable for all sizes of operations.

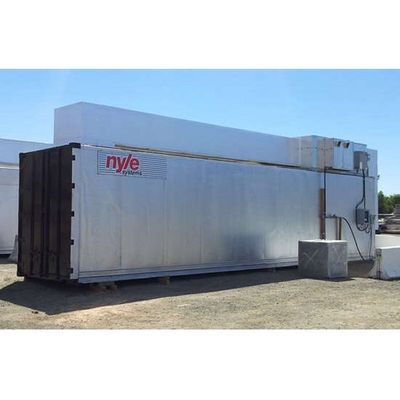

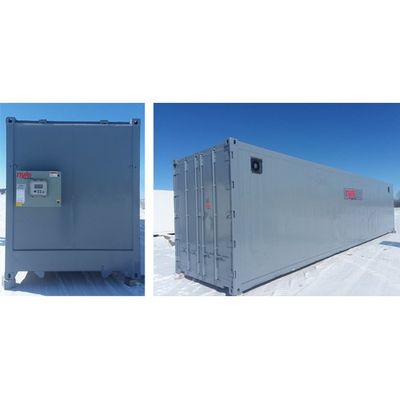

Nyle offers complete Container Kiln Packages that combine our well-known, high quality L-Series Dehumidification Kiln Drying Systems with a 20 foot or 40 foot container and almost everything else needed to turn the container in a quality dry kiln.

At Nyle, our unwavering commitment has always been to support kiln owners in their quest for improved efficiency and productivity in lumber drying. Conventional kilns suffer from significant heat loss through venting, which wastes energy, increases costs, and degrades wood quality. Our dynamic heat recovery vents solve this problem by transferring energy from the outgoing vented air to the incoming air.

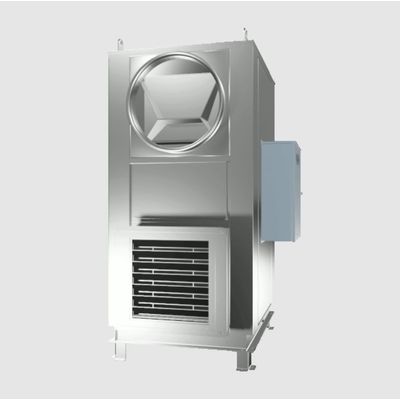

The price for natural gas has come down tremendously and is expected to stay that way for a long time. Competition has driven the price of compressed natural gas and propane down significantly too. That means that gas has become a low cost alternative to heat your kiln. In some areas with high electric rates even more economical than our dehumidification kilns. That’s why we have developed a range of indirect, gas fired kilns. What is the most economical kiln will depend on the price of natural gas and electric at your location.Our kilns are the best insulated kilns in the industry which reduces heat loss and therefore reduces operating costs significantly. We provide both fork lift loaded and track style chambers. So give us a call to discuss your needs, decades of experience will assure you get the right kiln for the right price.
