Omec Motors products

Output: 0,75kW – 355kW. Poles: 2|4|6|8 pole. Speeds: 750–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 80–400. Aluminium framesize: 80–160. Protection: IP55 | IP56 | IP65 | IP66. Temperature class: B. Cooling: IC411 | IC416 (option). Insulation class: F. Duty type: S1 | S2 | S3. Standards: IEC 60034-1-30. Voltage: 400V Y – Motors ≤ 3 kW, 400V Δ – Motors ≥ 3 kW. Other voltages can be supplied on request.

IE Class: IE4. Output: 2,2kW – 230kW. Poles: 2|4|6|8 pole. Speeds: 750–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 100–315. Aluminium framesize: 100–160. Protection: IP55 | IP56 | IP65. Temperature class: B. Cooling: IC411. Insulation class: F. Duty type: S1. Standards: IEC 60034-30-1. Voltage: 400V Y – Motors ≤ 3 kW, 400V Δ – Motors ≥ 3 kW. Other voltages can be supplied on request.

IE Class: N/A. Output: 160kW – 2MW. Poles: 2|4|6|8|10|12 pole. Speeds: 500–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 315–630. Protection: IP23| IP55 | IP56 | IP65 | IP66. Temperature class: B. Cooling: IC411 | IC01. Insulation class: F. Duty type: S. Standards: N/A. Voltage: 3,0 kV|3,3 kV|6,0 kV|6,6 kV|10 kV|11 kV.

IE Class: IE2. Output: 0,75kW – 355kW. Poles: 2|4|6 pole. Speeds: 1000–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 80–400. Aluminium framesize: 80–160. Protection: IP55 | IP56 | IP65 | IP66. Temperature class: B. Cooling: IC411
Insulation class: F. Duty type: S. Standards: IEC 60034-30 | IEC 60034-2-1. Voltage: 400V Y – Motors ≤ 3 kW, 400V Δ – Motors ≥ 3 kW. Other voltages can be supplied on request..

IE Class: IE3 | IE2 | IE1. Output: 11kW – 710kW. Poles: 2|4|6 pole. Speeds: 1000–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 160–355. Protection: IP23. Temperature class: B. Cooling: IC01. Insulation class: F. Duty type: S. Standards: IEC 60034-30 | IEC 60034-1-30. Voltage: 400V Δ. Other voltages can be supplied on request.

Type: EXD(E) IIB ATEX. Output: 0,75kW – 355kW. Poles: 2|4|6|8 pole. Speeds: 750–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Framesize: 80–315. Protection: IP55. Temperature class: T4, T5. Cooling: IC411. Insulation class: F. Duty type: S1. Standards: IEC 60034-30-1. Voltage: 400V Y – Motors ≤ 3 kW, 400V Δ – Motors ≥ 3 kW. Other voltages can be supplied on request.

IE Class: IE1. Output: 0,75kW – 355kW. Poles: 2|4|6|8|10|12 pole. Speeds: 500–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 80–400. Aluminium framesize: 56–200. Protection: IP55 | IP56 | IP65 | IP66. Temperature class: B. Cooling: IC411. Insulation class: F. Duty type: S. Standards: IEC 60034-30 | IEC 60034-2-1. Voltage: 400V Y – Motors ≤ 3 kW, 400V Δ – Motors ≥ 3 kW. Other voltages can be supplied on request.

IE Class: IE3. Output: 160kW – 2MW. Poles: 2|4|6|8|10|12 pole. Speeds: 500–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 315–560. Protection: IP55 | IP56 | IP65 | IP66. Temperature class: B. Cooling: IC411. Insulation class: F. Duty type: S. Standards: IEC 60034-30 | IEC 60034-1-30. Voltage: 400V Y | 690V Y. Other voltages can be supplied on request.

OMEC Motors’ Special Electric Motors are used within a wide variety of applications: Fans (airhandling units). Hydraulic power packs. Pumps (for water, fuels, oils). Shredders (granulation, crushing). Gears (gear reducers, gearmotors). Hazardous environments. Oil & Gas Industry.

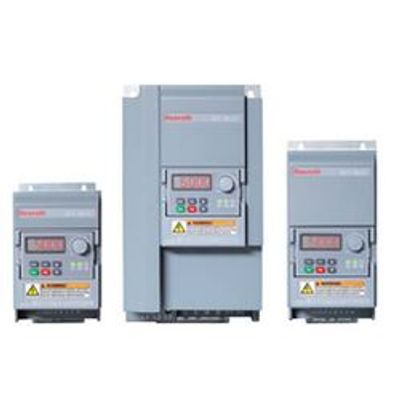

EFC3610 is a universal, low-cost frequency converter for reliable speed control and demand-oriented energy supply. V/f control, easy installation and commissioning as well as an increased power range enable a wide range of applications.
