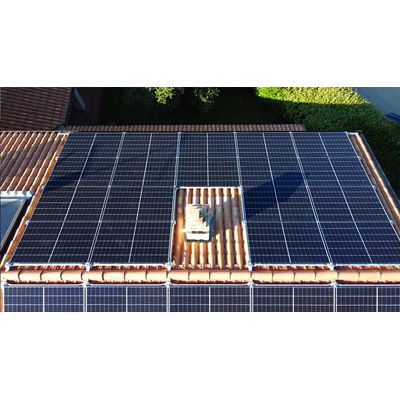

The Omniablok system for double pitched roof is a fully integrated grid mesh structure, tailored to the dimensions of the photovoltaic panel. The Omniablok structure rests on the roof surface, weighing approximately 6.5 kg/m2. It is securely fastened at the ridge point minimizing the risk of infiltration, and at just a few points along the lower part of the slope.

Every Omniablok structure is custom-designed to fit to the specifications of the roof and is adjusted based on the dimensions of the photovoltaic panel. The assembly process is straightforward and does not necessitate specialized operator training. The minimal number of fastenings, essential for stability, are concentrated at the ridge point and the lower section of the structure

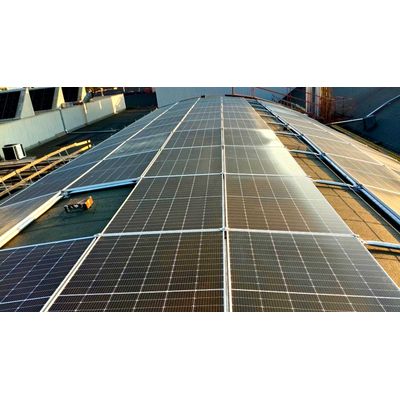

Constructed to match the curvature radius of the roof, The omniablok system for barrel roof is securely fastened at both ends using specialized brackets or tensioned steel chains. To protect the roof surface, a fiberglass support plate or k-foot is applied beneath the Omniablok aluminium casting

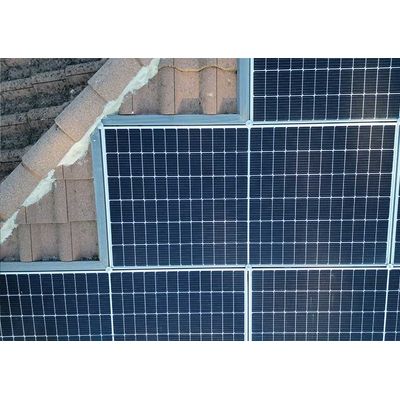

When installation necessitated the removal of roof tiles, the Omniablok frame will include a perimeter compensation profile. This profile comprises a thin, micro-drilled steel sheet that facilitates the ventilation of photovoltaic panels and prevents the formation of animal nests

Fully supported on the roof surface, the Omniablok system seamlessly accommodates flat surfaces. Its cohesive design forms a unified structure, with an approximate incidence of 9,8 Kg/m². Whether oriented to the south or east-west, The system allows adjustable panel tilting to meet desired specifications. Additionally, a thin rubber layer is positioned beneath each casting to safeguard the roof membrane.
