Ortea SpA products

Frequency : 50Hz ±5% o 60Hz ±5%. Selectable target voltage : 220-230-240V (dip switch). Output voltage accuracy : ±0,5%. Admitted load variation : Up to 100%. Cooling : Natural ventilation. Ambient temperature : -25/+45°C. Storage temperature : -25/+60°C. Max related humidity :

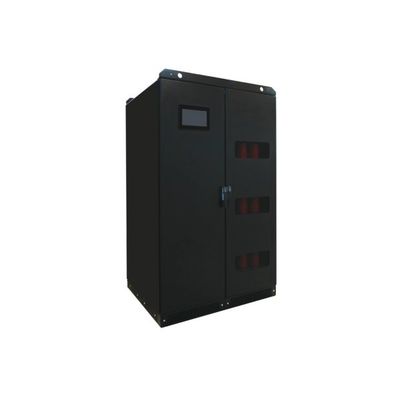

Frequency : 50Hz ±5% o 60Hz ±5%. Voltage regulation : IGBT controlled (double conversion technology). Adjusting energy parameters : Independent phase control. Selectable target voltage : 380-400-415V (440-460-480V**). Output voltage accuracy : ±0,5%. Admitted load variation : Up to 100%. Admitted load imbalance [%] : 100. Cooling : Forced ventilation. Ambient temperature : 0/+40°C. Storage temperature : 0/+60°C. Max related humidity :120% automatic by-pass protection. Colour : RAL 9005. Instrumentation : 10" touch panel, multilingual (on request remotely available by dedicated software connected to the same Ethernet network). Installation : Indoor. Communication system : MODBUS TCP/IP. Overvoltage protection :  Class I input surge arrestors. Class II output surge arrestors. Additional protections : Automatic by-pass protection.

These transformers are specifically designed and manufactured to guarantee the load protection. Isolation transformers usually provide a unit transformation ratio (e.g. 400/400V) and are used to uncouple the load from the power supply grid, as the primary and secondary windings are galvanically isolated. The typical sectors of application are telecommunication systems, data centre power supply systems, trafoless UPS power supply, by-pass line protection, public building systems.
