Oxilon Pvt. Ltd. products

Oil Burner for L.D.O. / H.S.D. / Diesel. Available for Pyrolysis Oil & Kerosene. Step less Fully Modulating operation oven the range. New designed proportional pressure ratio system for the modulation Version MD. Adjustable Combustion Head for fine tune regulation and matching with different shapes of combustion chamber. Compact in overall dimensions. Compatible with any type of combustion chamber. Monoblock electrodes for easy and steady installation in to the nozzle ev after maintenance . Photo resistance flame scanner . Completely sealed aluminium casing wrapped with a New Modern Design cover. New high efficiency Fan ventilator designed to give flame stability and easy matching. User friendly burners, there are plugs which can be easily connected to the electrical supply line. Continuous Ventilation available on request.

Oil Burner for L.D.O. / H.S.D. / Diesel. Available for Pyrolysis Oil & Kerosene. Two Stage Operation (High/Low). Hi- Low version with electric servomotor and integrated systems for the regulation of air and light Oil with nozzle. Single nozzle Hi-Low version available up to XL 42. Two nozzle Hi-Low version available From XL 245 to XL 2165. Three nozzle Hi-Low version available in XL 2235 and XL 2255. High Pressure Mechanical atomisation of fuel using Nozzle. Compatible with any type of combustion chamber. Manual Oil flow adjustment.

Oil Burner for L.D.O. / H.S.D. / Diesel. Available for Pyrolysis Oil & Kerosene. Single Stage Operation (ON/OFF). High Pressure Mechanical atomisation of fuel using Nozzle. Manual Air & Oil flow adjustment. Monophase Electric Motor to run fan and pump. Gear pump with pressure regulator. Adjustable Combustion Head for fine tune regulation and matching with different shapes of combustion chamber. Monoblock electrodes for easy and steady installation into the nozzle even after maintenance. Photo resistance flame scanner. Completely sealed aluminium casing wrapped with a new modern design cover. Compatible with any type of combustion chamber. Compact in overall dimensions. User friendly burners, there are plugs which can be easily connected to the electrical supply line. Burner mounted on single bolt mounting plate can be easily taken off for maintenance. Continuous Ventilation available on request.

Gas burners for Natural gas / L.P .G. Available for Bio-gas, Town gas & Producer gas. Single stage operation ( ON / OFF ). Compatible with any type of combustion chamber. Compact in overall dimensions. Manual air & gas flow adjustment. Gas valve selection available, soft start & fast start.

Two stage operation (High/Low). Gas burners for Natural gas / L.P .G. Available for Bio-gas, Town gas & Producer gas. Independent gas flow adjustment for each valve. HI-Low version with electric servomotor and integrated systems. for the regulation of air and gas. Compatible with any type of combustion chamber. Burners are extremely easy to fit even on small boilers, thanks to their. compactness and exceptionally limited overall dimensions. Monoblok casing is manufactured from high tensile aluminium. The design offers easy access to every single component, an important factor when comes repairing, cleaning or servicing the burner.

Gas burners for Natural gas / L.P .G. Available for Bio-gas, Town gas & Producer gas. Stepless fully modulating operation over the range. Modulating version with PID system controller with digital set point. Display and real time value . Modulating version with electrical servo motor and double adjustable mechanical allows air gas fine tuning. Compatible with any type of combustion chamber. Compact in overall dimensions. Ability to obtain optimal combustion values by regulating combustion air and gas. New high efficiency Fan ventilator designed to give flame stability and easy matching. Completely sealed aluminium casing wrapped with a new modern design cover. Continuous Ventilation available on request. Burner mounted control panel containing all electrical burners sequence and safety controls.

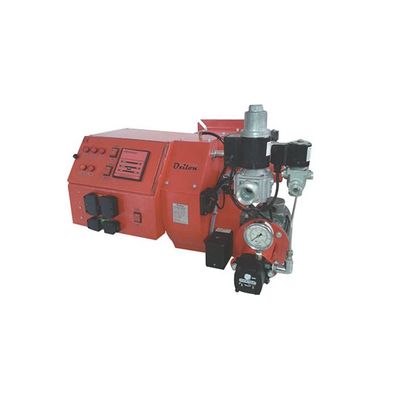

Dual fuel burners are suitable to burn gas as well as light oil. Dual fuel burner for Natural gas, L.P .G. , H.S.D. , L.D.O , and Diesel. Available for Pyrolysis oil & Kerosene. Available for Biogas, Town gas & Producer gas. Single Stage Operation ( ON/OFF ). Single switch operation to change the fuel. Combustion head is designed for high performance and low emission in gas as well as in oil operation. Manual Air , Oil and Gas flow adjustment. Burner Mounted control panel containing all electrical burner sequence and safety controls. Electrical connections with 7 pole Male - female socket set allowing all.

Two Stage Operation (High /Low). Dual fuel burner for Natural gas, L.P .G., H.S.D., L.D.O., and Diesel. Available for Pyrolysis Oil & Kerosene. Available for Biogas, Town gas & Producer gas. Hi- Low version with electric servomotor and integrated systems for the regulation of air , gas and light Oil with nozzle. Single nozzle Hi-Low version available up to ABDX 239. Two nozzle Hi-Low version available From ABDX 253 to ABDX 2175. Dual Fuel burner suitable to burn gas as well as light oil. Manual Oil Flow Adjustment. Independent gas flow adjustment for each single valve. Compatible with any type of combustion chamber.

Industrial Burners have been designed for application in conditions, in which monoblock burners can not be used. Owing to our expertise in this domain, we have emerged as one of the remarkable manufacturers and suppliers of an exclusive range of Industrial Burner. Fabricated as per the international standards using excellent quality raw materials, this burner is offered in different specifications to meet the precise needs of our clients. This Industrial Burner is highly demanded in the market due to its reliable performance, sturdy construction, longer service life, trouble free operation and high tensile strength.

High Temperature Burners are designed to work for High Temperature application. Special Design. Optimal fuel/oil ratio. Single Stage, Double Stage and modulating burner. Easy access to all spares without disassembling the burner. Easy installation and Operation. Special Designed high temperature combustion head. Energy Efficient Burners. Lower emission Values. Excellent price/performance ratio. Customized burners to suit application physical requirement.
