Professional Solar Products products

RoofTrac makes every residential PV installation easy and cost effective, while still ensuring quality and safety. The above installation can be created for only $0.12/ WDC, including the cost of our ProSolar decorative front skirt and our corrosion resistant aluminum and stainless steel hardware.

SolarWedge tilted racking system ensures seismic safety in residential and commercial flat roof projects by structurally attaching to roof rafters.

SolarWedge XD commercial tilted racking system uses the ProSolar 3` XD RoofTrac Rail to support systems spanning up to 8` on center, while ensuring seismic safety by structurally attaching to roof rafters

ProSolar`s GroundTrac system is a high-strength, easy to install ground mount for residential and light commercial projects.

Available in clear or black anodized. Pre-assembled mid clamp (shown-top) bonds module frame to RoofTrac Rail via channel nut with stainless steel bus bar.. End clamps (shown- bottom) precision fitted to module frame to ensure strength and safety (See Module Clamp Size Reference Chart). No anti-seize compound application to threads required- reducing installation time and risk of system failures from misapplication . 1-1/2" Channel Nut Offers min 10x rail grip vs. competitor t-bolt designs.

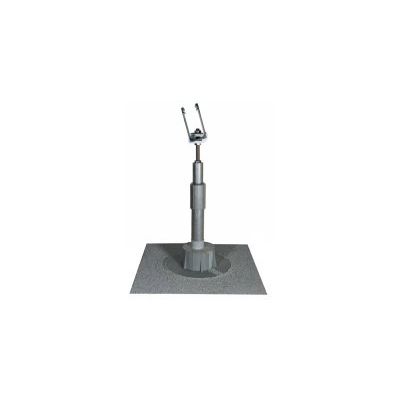

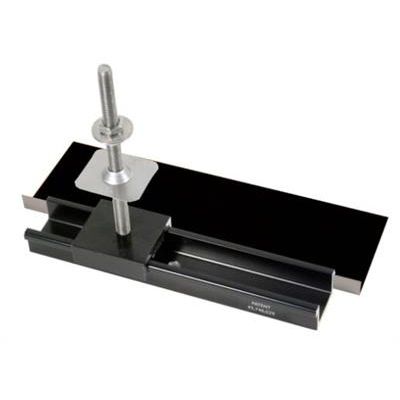

The TileTrac`s cost effective design and water tight seal have made it the industry preferred tile attachment for over 15 years. Use of the TileTrac allows for attachment installation with just the drilling of a small hole, as opposed to cutting out the roof tile. Its stainless steel and aluminum production ensure long-term durability and reliability.

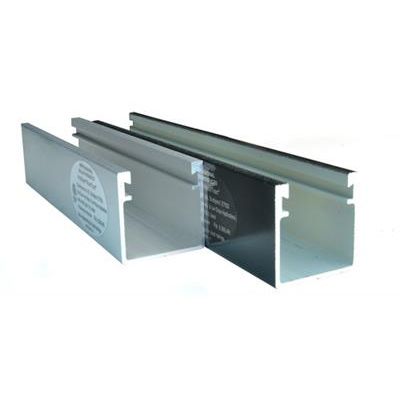

Colors: Clear Anodized and Black Finish. UL 2703 Listed. Available in 130" (black only), 136", and 168" lengths. 1-1/2" Tall by 1-1/2" Wide. 4 foot on center span . Engineered and load tested to 45 lb/sq. ft. , equivalent of 125 mph wind speed per 2013 CBC / 2012 IBC / ASCE 7-10 to ensure safety and quality. Sold in crates of 24 each or 60 each.

Colors: Clear Anodized and Black Finish. UL 2703 Listed. Available in 124", 136", and 168" lengths. 2-1/2" Tall by 1-1/2" Wide. 6 foot on center span. Engineered and load tested to 45 lb/sq. ft. , equivalent of 125 mph wind speed per 2013 CBC / 2012 IBC / ASCE 7-10 to ensure safety and quality. Sold in crates of 24 each and 60 each.
