PV-Engineering GmbH products

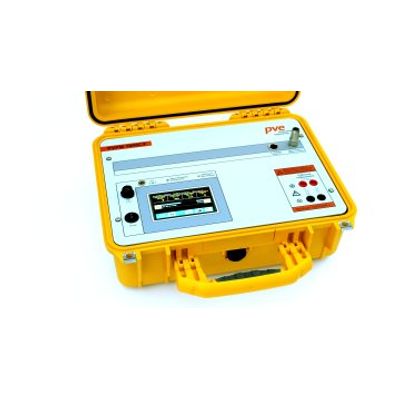

Portable peak power and I-V-curve measurement device (curve tracer) for photovoltaic modules und strings up to 1000V and 20Adc The devices series PVPM provide the measurement of the I-V-curve of photovoltaic modules as well as strings. By a patented procedure the device can measure and calculate the peak power Ppk, the Rs and Rp from a single I-V-curve directly at the place of assembly of the PV system. Calculation results and the diagram can be displayed on the internal graphical LC display.

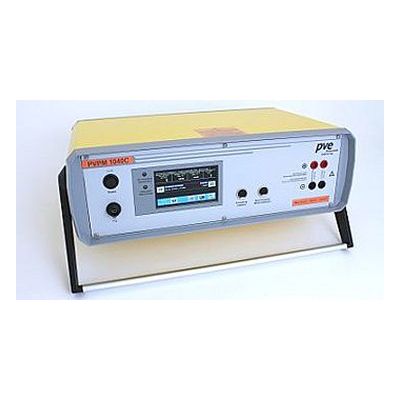

Peak Power Measuring Device and I-V Curve Tracer for Photovoltaic Modules up to 1000V and 40Adc. The PVPM1040C provides the measurement of the I-V-curve of photovoltaic modules as well as strings, up to 1000V and 40A (suitable for CPV). By a patented procedure the device can calculate the peak power Ppk, the Rs and Rp from a single measured I-V-curve directly at the place of assembly of the PV system. Calculation results and the diagram can be displayed on the internal graphical TFT display.

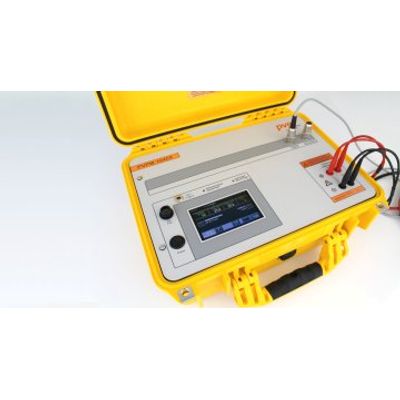

Innovative peak power and I-V-curve measurement device (curve tracer) for photovoltaic modules und strings up to 1000V and 20Adc. The devices series PVPM provide the measurement of the I-V-curve of photovoltaic modules as well as strings. By a patented procedure the device can measure and calculate the peak power Ppk, the Rs and Rp from a single I-V-curve directly at the place of assembly of the PV system. Calculation results and the diagram can be displayed on the internal graphical LC display.

Innovative peak power and I-V-curve measurement device (curve tracer) for photovoltaic modules und strings up to 1000V and 40Adc. The devices series PVPM provide the measurement of the I-V-curve of photovoltaic modules as well as strings. By a patented procedure the device can measure and calculate the peak power Ppk, the Rs and Rp from a single I-V-curve directly at the place of assembly of the PV system. Calculation results and the diagram can be displayed on the internal graphical LC display.

Newest peak power measurement device and IV-curve tracer for PV modules / strings / arrays, up to 1500V and 20ADC.

The aluminium accessory case for the PVPM:

Extension (set red/black) for the 4-wire-measurement cable of the PVPM 1000V, 20A/40A 1.5mm²/2.5mm². No adjustment necessary at the PVPM due to 4-wire-system. Standard length 10m, other dimensions on request.

The extension cable for the external Pt100 surface temperature sensor can be used if the standard cable (10m) are too short for the respective application.
