Due to the flexibility of the internal and external reflector, the LED 6470/5 pendant light fitting can take care of any lighting task. The cleverly designed combination of electronic driver and high-performance LED guarantees a long service life, high efficiency and enables use in the input voltage range of 100 V to 277 V AC. The universal cover with integrated fixing holes enables pendant and ceiling mounting. Another cover enables pole and wall mounting.

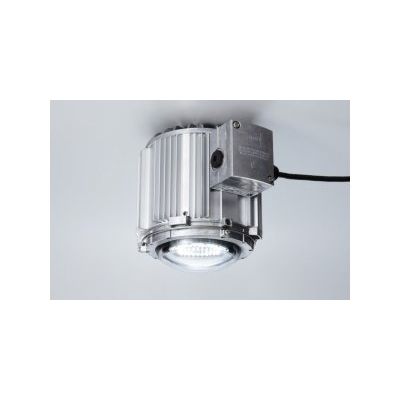

A variety additional reflectors make the 6050 LED series pendant light fitting a versatile choice. A seawater-resistant cast aluminium enclosure is available for use in marine environments. There is also the option to add a highly resistant coating. The ultra safe integrated terminal box takes all the hard work out of connecting the electrics of the pendant light, which is housed in a flame-proof enclosure.

R. STAHL Series 8118 terminal boxes are equipped, in accordance with customer specifications, with various series terminals and cable glands made from plastic or metal, if required also with miniature fuses. They are available in 3 design sizes and are made from glass fibre reinforced polyester resin.

R. STAHL Series 8102 junction boxes are small Ex e enclosures for transporting and distributing electric energy in hazardous areas. They are made from glass fibre-reinforced polyester resin and are therefore extremely robust. The junction box has 5 mantle terminals, whereby one is used as a PE connection point. The cable dia. range of the mantle terminals is 2 x 4 mm².

The latest LED technology with a high luminous efficacy and a long service life. Extremely high luminaire efficacy. Luminous flux after 100,000 h still 90% of the starting luminous flux. Optionally with DALI for controlling and monitoring the luminaire. Optionally addressable for direct actuation of a common battery system.

Art. No.: 319531. Product Type: 6036/31301-44500-111050-850-0000ST00. Gas temperature class: T4. Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc. Certificates: ATEX (BVIS), IECEx (BVIS). Nominal power: 36 W. Light colour: 850 to 5000 K CRI80. Light distribution: 140° with diffusing glass. Luminaire efficacy: 128 Im/W. Luminous flux: 4620 lm. Type of connection cable: H07RN8-F 2x1.5 mm². Cable length: 5.00 m.

Art. No.: 284564. Product Type: 6125/2122-3501-6015-331. Max. ambient temperature: +60 °C, min. ambient temperature: -60 °C. Lamp wattage: 160 W. AC rated operational voltage: 110 - 277 V. Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc. Certificates: ATEX (BVIS), Brazil (ULB), IECEx (BVIS), India (PESO). Lamp: LED. Light distribution: Medium-beam. Enclosure material: Stainless steel 1.4301. Max. solid connection terminals: 6 mm². Drilled holes: 3 x M25.

Art. No.: 292300. Product Type: 6050/604-202-6B2-000850-001. Max. ambient temperature: +60 °C, min. ambient temperature: -40 °C. Lamp wattage: 20 W. Frequency range: 50 - 60 Hz. AC rated operational voltage: 220 - 240 V. Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc. Version: Bracket mounting. Certificates: ATEX (BVIS), Brazil (ULB), IECEx (BVIS). Lamp type: LED. Lamp: LED. Reflector: No. Cable glands and entries: 1 x M25 x 1.5. Stopping plugs: 1 x M25 x 1.5. Wire guard: No.

The linear luminaire with Series 6002/4 LED is ideal for lighting surfaces at a mounting height of up to 10 m. It can also be used to illuminate equipment and objects, both inside and outside. The pole mounting sleeve accessory can be used to easily mount the luminaire on poles. Optionally, the luminaire can be equipped with addressable equipment. It can be used to control and monitor the luminaire for the common battery systems.

The linear luminaire with Series 6402/4 LED is ideal for lighting surfaces at a mounting height of up to 10 m. It can also be used to illuminate equipment and objects, both inside and outside. The pole mounting sleeve accessory can be used to easily mount the luminaire on poles. Optionally, the luminaire can be equipped with an address module. It can be used to control and monitor the luminaire for the common battery systems.
