52 products found
products
-
Solar Monitoring Stations
-

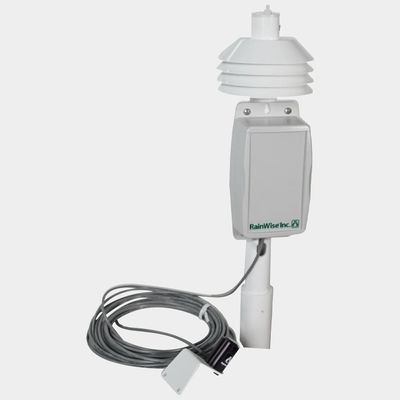

PVmet - Model 75 - Compact and Lightweight Solar Monitoring Station
The PVMet 75 is a compact and lightweight solar monitoring station featuring a Global or Plane-of-Array Irradiance Sensor, one or two Back-of-Panel Temperature Sensor(s), and an Ambient Air Temperature Sensor. Simple to install on any solar project, the PVMet 75 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory ...
-

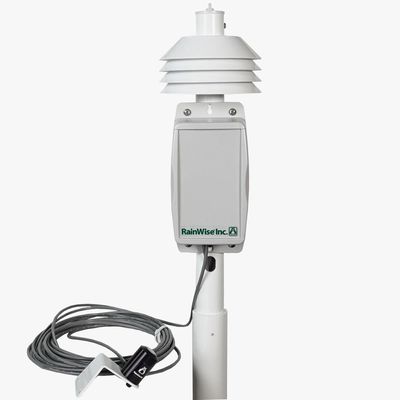

RainWise PVmet - Model 100 - Standard Solar Monitoring System
The PVMet 100 includes all the same sensor options as the PVMet 75 but offers an adjustable EKO ML-01E Irradiance Sensor that can be set to provide Global or Plane-of-Array Irradiance. The adjustable option provides installers the flexibility to match the sensor to the PV panel angle. Compact and simple to install on any solar project, the PVMet 100 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and ...
-
RainWise PVmet - Model 150 - Solar Monitoring Station
The PVMet™ 150 offers a precise thermopile pyranometer for optimal performance alongside an adjustable Global or Plane-of-Array Irradiance Sensor, one or two Back-of-PV Panel Temperature Sensor(s), an Ambient Air Temperature Sensor, and the option for an additional Irradiance Sensor. Simple to install on any solar project, the PVMet 150 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory ...
-

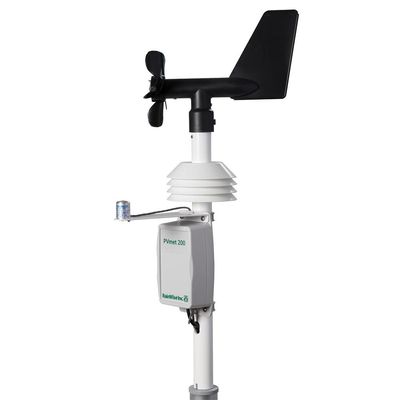

RainWise PVmet - Model 200 - Commercial Solar Monitoring System
The PVMet 200 is our best-selling commercial model featuring the highest caliber PV and wind sensors. The PVMet 200 includes an option for both a Global and Plane-of-Array Irradiance Sensor, one or two Back-of-Panel Temperature Sensor(s), an Ambient Air Temperature Sensor, and a Wind Speed and Direction Sensor. Simple to install on any solar project, the PVMet 200 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully ...
-
PVmet - Model 330 - Solar Monitoring Station
The PVMet 330 is a complete monitoring experience with our full range of sensors to optimize PV power generation. The PVMet 330 includes an option for both a Global and Plane-of-Array Irradiance Sensor, one or two Back-of-Panel Temperature Sensor(s), an Ambient Air Temperature Sensor, a Wind Speed and Direction Sensor, a Relative Humidity Sensor, a Barometric Pressure Sensor, and a Rain Gauge Sensor. Simple to install on any solar project, the PVMet 330 ...
-
PVmet - Model 500 - Solar Monitoring Station
The PVMet™ 500 delivers a customizable, multi-point monitoring solution that provides reliable energy management on any solar project. Choose up to three Irradiance Sensors and three Back-of-Panel Temperature Sensors along with three standard sensor options and an optional Ultra Sonic Anemometer, Mini Aervane, or Rain Gauge. Simple to install on any solar project, the PVMet 500 connects to Modbus RTU Communication with an ethernet TCP option ...
-
MK-III Weather Stations - Weather Station Accessories
-
RainWise TeleMET - Model II - Remote Solar Power Pack
As the TeleMET II communicates wirelessly with the RainWise MK-III and AgroMET based weather stations – the Power Pack can be placed in a location that has better cellular reception compared to were the weather station is placed. The distance between the Power Pack (with in the TeleMET II inside) & the MK-III/AgroMET weather stations can be up to 1 mile away (line of sight) but is recommended to be around 300-500 feet in order to guarantee ...
-
Sensors - Solar Radiation Sensors
-
RainWise - Model MS-80 Class A - Compact Pyranometer Sensor
The compact sensor with single dome is immune to offsets and integrates all value-added functions such as a ventilator, heater and different industrial interfaces. The innovative patented design was inspired by the combination of latest technologies and state of the art thermopile sensor, enabling a breakthrough in unprecedented low zero-offset behavior and fast sensor response. The compact sensor with single dome is immune to offsets and integrates all ...
-
RainWise - Model MS-60 Class B (First Class) - Pyranometer
The MS-60 is a ISO 9060:2018 Class B (First class) pyranometer with analog output and improved performance. The new double dome construction provides lower offsets and cosine ...
-
RainWise - Model MS-40 Class C - Pyranometer
The MS-40 is an ISO 9060:2018 Class C pyranometer which is based on the EKO’s universal sensor platform. It is the most cost effective irradiance sensor to measure Solar irradiance across the full Solar ...
-
RainWise - Model ML - 01 Si - Solar Radiation Sensor
The ML-01 Si sensor is the link between the reference cell and broadband thermopile pyranometer. Compared to the reference sensors it has a proper cosine repose and it is relatively compact, but benefits from the same characteristics as a PV module (Response time, Spectral and temperature ...
-
Accessories
-
RainWise - 9V Switching Power Supply
This 9 volt 5.9 watt switching power supply includes international power outlet adapters. It is the standard power supply for MultiDisplays, Oracle Displays, Ip100s, and ...
Products by
-
Pyranometers
-
EKO - Model MS-80SH - Pyranometer
The MS-80 set new industry standards on launch in 2016 and remains a class-leader for ISO 9060:2018 Class A solar sensors today, one of the few Class A pyranometers before the MS-80S and MS-80SH, in the top tier ‘fast-response’ and ‘spectrally flat’ sub-categories, with unprecedented low-zero-offset behaviour, and a 5-year recalibration ...
-
Sun Trackers
-
Harmonic Drive - Model STR-21G - Sun Tracker
With an integrated GPS receiver, 4-quadrant precision sun sensor, and Harmonic Drive® technology, the STR-21G Sun Tracker is built to deliver unparalleled precision, optimal positioning, and reliability, whatever the weather. Easy to set up, the STR-21G automatically adjusts to the sun’s position, even if the tracker is not perfectly oriented or levelled, and can support a range of Global, Diffuse and Direct Radiation measurement sensors for ...
-
Solar Monitoring Stations
-

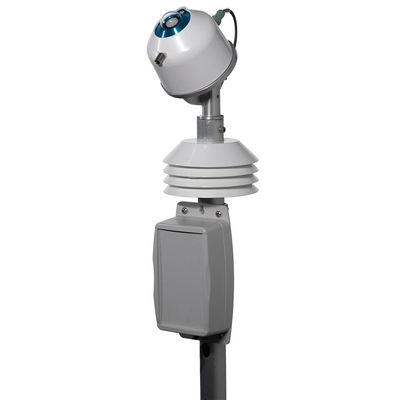

EKO - Model MS-90 Plus+ - Trackerless Solar Monitoring Station
The MS-90 Plus+ a trackerless solar monitoring station. Built around the unique internal rotating mirror design of the MS-90 DNI Sensor, the MS-90 Plus+ adds the industry and ISO 9060:2018 class-leading MS-80S Class A Pyranometer, and an original C-Box smart interface, for complete DNI, GHI, and calculated DHI measurements. A practical solution to the increasing diversity of solar power plant locations and Photovoltaic (PV) applications, the MS-90 Plus+ ...
-
Weather Stations
-
EKO - Model PVmet-100 - Sensor Platform for PV Monitoring
PVmet is an innovative sensor platform for PV monitoring, developed by Rainwise Inc. and provided by EKO. The PVMet series of weather stations are designed for solar operations looking to gain insights into the efficiency and status of their PV system with accurate, bankable data. The PVMet series is simple to use, tough enough for harsh environmental conditions, and powerful enough to transform a solar installation into a sustainable solution that saves ...
-
EKO - Solar Energy - Pyranometers
A new generation to assure revolutionary new standard and lowest measurements uncertainty.
-
EKO - Model MS-80 - Secondary Standard Analog Pyranometer
EKO’s new generation sensors broke the rules of traditional pyranometer architecture. The innovative patented design was inspired by the combination of latest technologies and state-of-the-art thermopile sensor, enabling a breakthrough in unprecedented low zero-offset behavior and fast sensor ...
-
EKO - Model MS-80A - Pyranometer with 4-20mA Output
EKO’s new generation sensors broke the rules of traditional pyranometer architecture. The innovative patented design was inspired by the combination of latest technologies and state-of-the-art thermopile sensor, enabling a breakthrough in unprecedented low zero-offset behaviour and fast sensor ...
-
EKO - Model MS-80M - Pyranometer
EKO’s new generation sensors broke the rules of traditional pyranometer architecture. The innovative patented design was inspired by the combination of latest technologies and state-of-the-art thermopile sensor, enabling a breakthrough in unprecedented low zero-offset behaviour and fast sensor ...
-

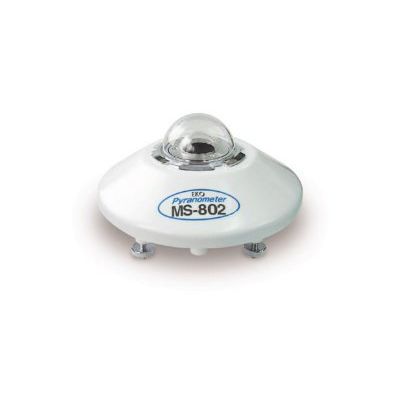

EKO - Model MS-802 - Secondary Standard Pyranometer
The MS-802 Secondary standard pyranometer is a reliable reference sensor to measure global broad-band radiation with high precision. It is used as a standard in PV research and climatological studies around the ...
-

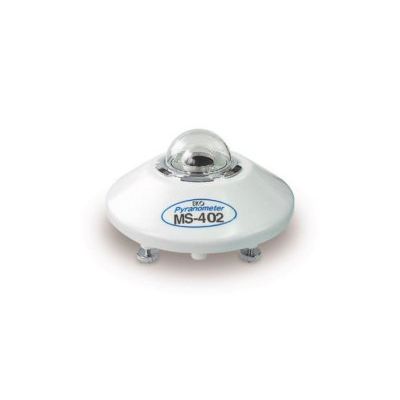

EKO - Model MS-402 - Pyranometer
The MS-402 Pyranometer is a unique ISO First class pyranometer and best in its category. As the only first class sensor available on the market it has a built in electronic passive temperature compensating to linearize the detector temperature coefficient and make it accurate under all temperature ...
-
EKO - Model MS-60A - Pyranometer
The MS-60A is a MS-60 with a built in 4-20mA converter which is compatible to industrial output standards. The new double dome construction provides lower offsets and cosine errors. The MS-60A can be used with the optional MV-01 ventilator / ...
-
EKO - Model MS-60M - Pyranometer
The MS-60M is a MS-60 with built in MODBUS 485 RTU converter is compatible to industrial output standards. The new double dome constructions provides lower offsets and cosine errors. The MS-60M can be used with the optional MV-01 ventilator / ...
-
EKO - Model MS-60 - Pyranometer
The MS-60 is a ISO 9060 First class pyranometer with analog output and improved performance. The new double dome constructions provides lower offsets and cosine errors. The MS-60A and MS-60M provide a digital output (4-20mA or Modbus 485 RTU). The MS-60/60A/60M can be used with the optional MV-01 ventilator / ...
-
EKO - Model MS-40 - Pyranometer
MS-40 Second Class pyranometer is based on the EKO's universal sensor platform. It can be used for agro meteorological networks and professional small scale PV sites where solar radiation is taken seriously. The MS-40A and MS-40M provide a digital output (4-20mA or Modbus 485 RTU). The MS-40/40A/40M can be used with the optional MV-01 ventilator / ...
-
EKO - Model MS-40A - Pyranometer
MS-40A Second Class pyranometer is based on the EKO's universal sensor platform with 4-20mA output. It is a cost effective solution for global solar radiation measurements. This sensor can be used in many meteorological networks and professional small scale PV sites where solar radiation is taken seriously. The MS-40A can be used with the optional MV-01 ventilator / ...
-
EKO - Model MS-40M - Pyranometer
MS-40M Second Class pyranometer is based on the EKO's universal sensor platform with MODBUS RTU output. It is a cost effective solution for global solar radiation measurements. This sensor can be used in many meteorological networks and professional small scale PV sites where solar radiation is taken seriously. The MS-40M can be used with the optional MV-01 ventilator / ...
-
Solar Energy - Sun Trackers
High precision Sun-trackers to measure global, diffuse and direct irradiance.
-
Model STR-21G - Compact Single Arm Sun Tracker
The compact single arm sun tracker is perfectly suited to support all kinds of Global, Diffuse and Direct Radiation measurement sensors. STR-21G is the base of the Solar Monitoring Systems (STR-21G-S), a turnkey measurement solution from EKO. The STR-21G provides a fully automated set up procedure through a GPS receiver providing increased reliability and enhanced ...
-
Model STR-22G - Compact 2 Arms Sun Tracker
The compact 2 arms sun tracker is perfectly suited to support all kinds of Global, Diffuse and Direct Radiation measurement sensors. Besides the standard EKO sensor mounts, various alternative mounts for non-EKO sensors are available. EKO Instruments improved the STR-22G Sun Tracker with a fully automated set up procedure through a GPS receiver, providing increased reliability and enhanced ...
-
Model STR-32G - Heavy-Duty Sun Trackers
The heavy-duty Sun Tracker STR-32G completes the extensive EKO Sun Tracker range and is capable to take the highest load without compromising the typical high precision and performance of the STR. Similar to the STR-21G/22G it features a fully automated set up procedure through a GPS receiver, providing increased reliability and enhanced ...
-
Solar Energy - Solar Monitoring Stations
The primary turn-key reference to collect high quality solar irradiance data on-site.
-
Model STR-21G-S0 - Solar Monitoring Systems
EKO’s new solar Monitoring System, the STR-21G-S0, is a turnkey sensor system to perform the most accurate solar radiation measurements of the direct solar radiation component. It can be easily integrated to any DAQ system, which has multiple analog or digital inputs. With the standard sun-position sensor and GPS receiver built inside the sun tracker, the system set-up will be quick and ...
-
Model STR-21G-S1 - Solar Monitoring Systems
EKO’s new solar Monitoring System, called STR-21G-S1, is a dedicated sensor system to perform the most accurate solar radiation measurements of the three solar radiation components (Direct, Diffuse and Global). It can be easily integrated to any DAQ system, which has multiple analog or digital inputs. With the standard sun-position sensor and GPS receiver built inside the sun tracker the system set-up will be quick and ...
-
Model STR-21G-S2 - Solar Monitoring Systems
EKO’s new solar Monitoring System, the STR-21G-S2, is a dedicated sensor system to perform the most accurate solar radiation measurements of the three solar radiation components (Direct, Diffuse and Global). It can be easily integrated to any DAQ system, which has multiple analog or digital inputs. With the standard sun-position sensor and GPS receiver built inside the sun tracker the system, set-up will be quick and ...
-
Solar Energy - Sensor Accessories
Maximize and extend the capabilities of the radiation sensors.
-
Model MV-01 - Ventilator and Heater
The MV-01 ventilator and heater in combination with the MS-80/60/40 pyranometers will keep the pyranometer sensor free of dew, ice and snow. The ventilator ensures data availability of the MS-80/60/40 under all environmental conditions. In combination with the MV-01 ventilator, your sensor will be compliant to the requirements of the new IEC 61724-1 standard (Class ...
-
Model RSR-01 - Shading Ring
The EKO Instruments RSR-01 shadow ring is a economic solution to measure diffuse irradiance at any location on earth. The static Radiometer Shadow Ring RSR-01 can be used with all EKO Pyranometers (MS-80/802/402/410/602). Dedicated mounting adapters are available for other types of solar ...
-
EKO - Solar Energy - Si-Pyranometers
Compact and cost-effective Si-sensors for qualitative radiation measurements.
-
EKO - Model ML-01 - Si-Pyranometer
The ML-01 Si-sensor can be categorized between the reference cell and broadband thermopile pyranometer. Compared to the reference sensors it has a proper cosine response and it is relatively compact, but benefits from the same characteristics as a PV module (Response time, Spectral and Temperature response). The ML-01 is an industrial grade solar sensor specially made for Performance ratio measurements as well as irradiance measurement applications for ...
-
EKO - Model ML-02 - Si-Pyranometer
The ML-02 sensor is made for light measurements in industrial environments. The compact dimensions of the sensor body make it easy to integrate within any application. Due to its low weight and low profile, the sensor can be easily attached to any light receiving surface. The Mono-Silicon detector with UV resistant diffuser gives a cosine response also at low solar elevation angles. Besides the effects of soiling or water deposition on top of the diffuser ...
-
Solar Energy - IV Measurements
I-V measurement equipment to measure all types of PV cells, modules and strings.
-
Model MP-11 I-V - Robust Portable Battery Operated Checker
The robust portable battery operated MP-11 I-V Checker enables the operator to perform on-site accurate I-V performance measurements and inspection of PV modules or arrays. For direct control of the measurement functions and analyzing measurement results, the Main Unit has a key-pad and Graphical LCD display. The MP-11 offers an all in one measurement solution to make PV module testing very easy, hence all required accessories like the radiation sensor, ...
-
Model MP-160 I-V - Tracer
The MP-160 I-V tracer is the optimum solution for testing individual solar cell or module characteristics in combination with a solar simulator or natural sunlight. It can be found in factory quality control applications or long-term performance assessment studies of modules exposed to natural conditions outdoors. The cell or module performance characteristics are determined by changing the electrical load during the I-V sweep. The radiant energy on the ...
-
Model MP-165 - Electronic Load Method I-V Curve Tracer
Electronic Load Method I-V Curve Tracer MP-165 is a next generation I-V curve tracer which is capable of measuring a wide range of PV device characteristics from small to big capacity. It is capable of taking samplings of voltage, current, and solar irradiance at the same time; also it is simple to take measurements with an artificial light source (sequential illumination). Connecting the MP-165 to a computer by using an RS-232C connector, allows for the ...
-
Model MI-510 - PV Module Selector
Long term stability of PV modules can be evaluated with the multi channel MP-160 system. I-V characteristics of multiple PV cells and modules can be measured individually. MI-510 module selector provides 6 channels to measure the PV modules sequentially. In total 4 units of the MI-510 can be connected to the MP-160 and 4 units to the ...
-
Model MI-510S - PV Module Selector
To test the long-term stability of PV modules, particularly with EKO's MP-165 based outdoors test system, the I-V characteristics of multiple PV cells and modules can be measured. MI-510S module selector gives 6 channels to measure the PV modules sequentially. In total 8 units of the MI-510S can be connected to the ...
-
Model MI-520 - PV Module Selector
Long term stability of PV modules can be evaluated with the multi channel MP-160 system. I-V characteristics of multiple PV cells and modules can be measured individually. MI-520 module selector gives 12 channels to measure the PV modules sequentially. In total 4 units of the MI-520 can be connected to the ...
-
Model MP-303 - PV Load Selector
To test the long-term stability of PV modules, particularly with EKO's MP-160 outdoor based test system, the I-V characteristics of multiple PV cells and modules can be measured. The MP-160 in combination with the MP-303 Load Selector provides 6 channels to measure IV curves of PV modules which can be kept at MPPT conditions with an optional load. The optional load can be a passive load, electronic load or power optimizer which is connected to the ...
-
Model MP-303S - PV Load Selector
To test the long-term stability of PV modules, particularly with EKO's MP-165 based outdoors test system the I-V characteristics of multiple PV cells and modules can be measured. The MP-165 in combination with the MP-303S Load Selector provides 6 channels to measure IV curves of PV modules which can be kept at MPPT conditions with an optional load. The load could either be a passive load, electronic load or power optimizer which is connected to the ...
-
EKO - Model MI-530 - Pyranometer Selector
The MI-530 is used when PV modules have different position and orientation. Up to 5 pyranometers can be used to measure irradiance in the plane of the PV module. The irradiance measurements of the sensor in the plane of array are syncronized with the IV ...
-
Model MI-540 - Temperature Selector
The MI-540 provides 12 channels to measure the PV module temperature with a T-type thermocouple. The PV module back side temperature is an important parameter to be ...
-
Model MP-410 MPPT - Electronic Load
The MP-410 electric load can be used for continuous module performance evaluation of single PV modules up to 300W. Based on the advanced MPP tracking function, the PV module power will be automatically regulated and can be monitored when exposed to solar irradiance or a sun simulator. Compared to regular I-V tracers, the MP-410 can provide uninterrupted information about the maximum performance operating point of the module and is the best solution to ...
-
Model MP-160-S1 - PV Evaluation System
The 6 channel outdoor Photovoltaic (PV) module(s) evaluation system based on the MP-160 is designed to measure I-V curve and module back-side temperature, to evaluate the performance of each module under natural sun light and weather conditions. The main instrument in this system is the MP-160 I-V Tracer, with an additional 6 channel selector for PV modules and a 12 channel selector for thermocouple or irradiance sensors. The measurement software ...
-
Model MP-160-S2 - PV Evaluation System
The 12 channels outdoor Photovoltaic (PV) module(s) evaluation system based on the MP-160 is designed to measure I-V curve and module back-side temperature to evaluate the variance of the performance of each module under the natural sun light and weather condition. The main instrument is I-V curve tracer MP-160 with additional 12 channels PV modules selector, 12 channels thermocouple selector and irradiance sensor. The measurement software ...
-
EKO - Solar Radiation & Photonic Sensors - Pyranometers
-
EKO - Model MS-410 - Pyranometer
The MS-410 pyranometer measures the broad-band global solar irradiance. The MS-410 is perfectly suited for sampling 10-minute averages of the solar radiative flux in horizontal or tilted configurations. It is fully compliant with the ISO9060 'First Class' norm. The flat sensor surface, coated with a special, highly absorbing black paint, is protected by two transparent hemispheric glass domes. The MS-410 has a practical light-weight anodized aluminum ...
-

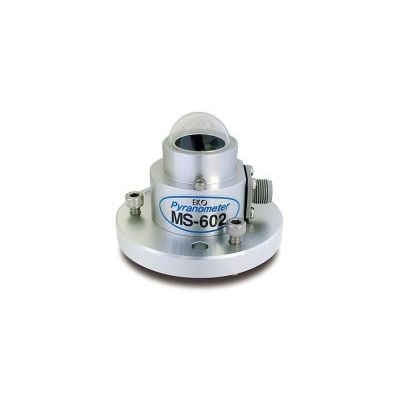

EKO - Model MS-602 - Pyranometer
Within the MS-series the MS-602 pyranometer is the smallest true thermopile pyranometer. It is the most economic measurement solution for global solar radiation measurements capturing the full solar spectrum. MS-602 meets the ISO Second Class performance criteria. However, its outstanding temperature dependency characteristics can only be found on higher class pyranometers. This sensor can be found in many meteorological networks and professional small ...
