The use of atmospheric plasmas for industrial applications has become widespread in many different sectors. Relyon plasma develops nozzle-type plasma generators which are particularly compact and offer long-term stability. Through the use of a unipolar pulsed high voltage source and a vortex flow in the nozzle, the arc is prevented from stabilising at a “hot spot”. The arc rotates at a high frequency in the combustion chamber. Despite the high power density, there is only minimal warming of the nozzle and hardly any erosion of the electrodes. The plasma temperature can be freely adjusted across a wide range.

The piezobrush® PZ2 has been conceived to be an efficient handheld unit. The plasma handheld device is also very suitable for being used in professional model making, in laboratories and the manual assembly of small lots. Bonding of synthetic materials becomes easier due to surface activation resulting from the impact of cold plasma.

The smallest cold active plasma system for industrial plants and production plants. The piezobrush PZ2-i is the optimal plasma system for industrial and production plants, which can be easily integrated into your system. Due to the high reliability, a treatment with cold active plasma 24/7 in your production process is easy and cost-effective possible. The piezobrush PZ2-i can be used in a stationary mounting or in a traversing unit. The piezobrush® is optimized for efficiency and user-friendliness, supplemented by functional nozzle inserts for your application processes. In terms of power consumption, there is no more efficient plasma process on the market for your surface treatment. Cleaner printing, more reliable bonding or effective sterilisation.

Piezobrush PZ3 has been designed as a compact plasma handheld device for use in laboratories, predevelopment and assembly of small series. With a maximum power consumption of 18 W, the Piezoelectric Direct Discharge (PDD®) technology is used to generate cold active plasma at a temperature of less than 50°C. The heart of this portable plasma device is the TDK piezo plasma generator CeraPlas™ – a high-voltage discharge device for generating cold atmospheric-pressure plasma. Plasma is used to increase the surface energy of many materials with high efficiency, as well as to reduce germs and odors.

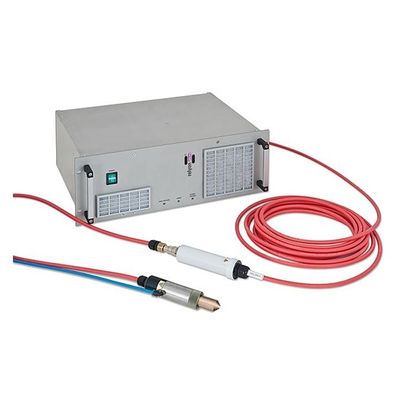

Our plasmabrush® PB 3 is a high power plasma system with Pulsed Atmospheric Arc Technology, for applications that require high performance and rapid processes. Perfectly coordinated components in robust industrial design: 19-inch high power voltage supply PS2000 and plasma generator PB3, connected through a flexible 10m cable for easy integration into every facility.

Plasma all-in-one system for small to medium-sized components. The Plasmacell is a compact stand-alone plasma system that provides a perfect working environment for simple and efficient plasma treatment of your workpiece. By combining and enclosing a high performance plasma device, a high voltage source and a XYZ robot, you get a semi-automated system that meets all safety guidelines.
