Remor S.A. products

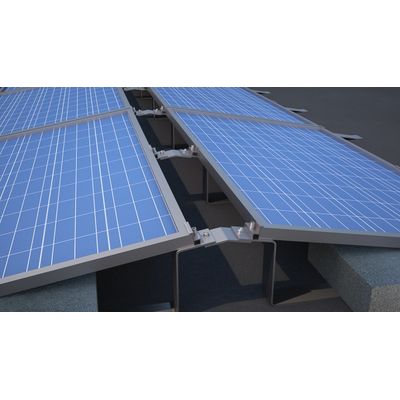

System mounted directly to the roof surface (without the need of ballast weight)

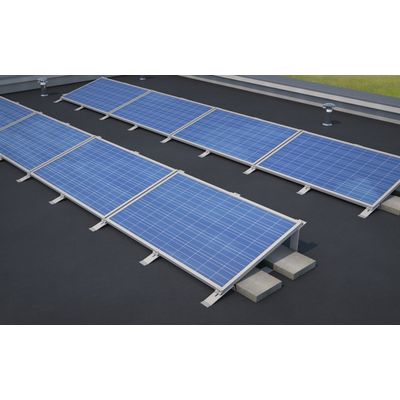

Structural material: Aluminium. Angle of inclination: 15-25°. Module orientation: horizontal. Weight of mounting structure for 1 PV panel: 26 kg. Total weight of mounting system with PV panels: 35 kg/m2

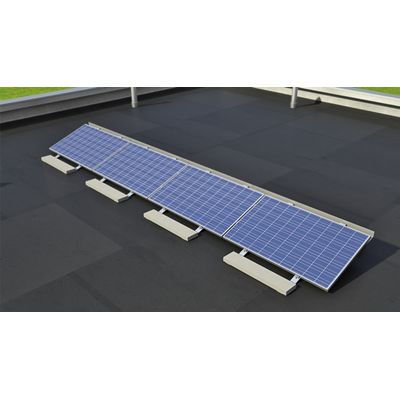

Module orientation: horizontal. Angle of inclination: 15-30°. Weight of mounting structure for 1 PV panel: 26 kg. Total weight of mounting system with PV panels: 50 kg/m2.

Structural material: Aluminium. Module orientation: horizontal. Angle of inclination: 15-30°. Weight of mounting structure for 1 PV panel: 26 kg. Total weight of mounting system with PV panels: 50 kg/m2.

Structural materials: hot-dipgalvanizecI steel, Aluminium. Module orientation:vertical (2 rows). Segment length: upto 25m. Angle of inclination: 15-36°. Load assumptions:in accordance withEuropean standards. respective to local specifications.

Structural materials : hot-dip galvanized steel, Aluminium. Module orientation: horizontal (3/4 rows). Segment length: upto 30m. Angle of inclination:: 15-361`. Load assumptions: in accordance with European standards respective to local specifications.

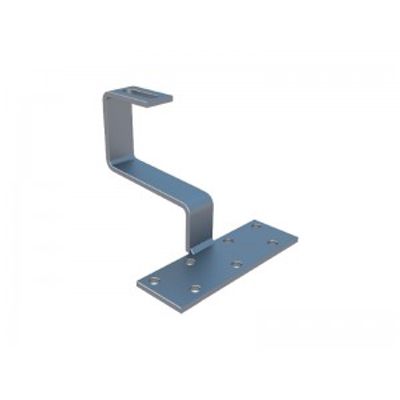

Plate: 150x50x5 (mm). Bar: 30×5 (mm). Hole: Ø9 (mm) x 7. Long Hole: 11×30 (mm). Material: A2 1.4301

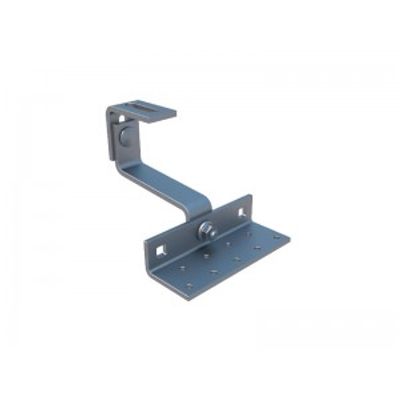

Plate: 140x56x35x5 (mm), 80 x 5 ( mm ). Bars: 30×5 (mm), 30×6 (mm). Hole: Ø9 (mm) x 9, M8. Long Hole: 11×34 (mm)M10. Material: A2 1.4301shot blasting

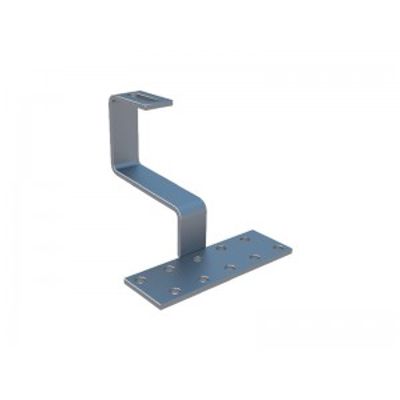

Plate: 150x50x5 (mm). Bar: 30×5 (mm). Hole: Ø9 (mm) x 10M8. Long Hole: 11×29 (mm)M10. Material: A2 1.4301stainless steel. Notifications: included screws M10 A2

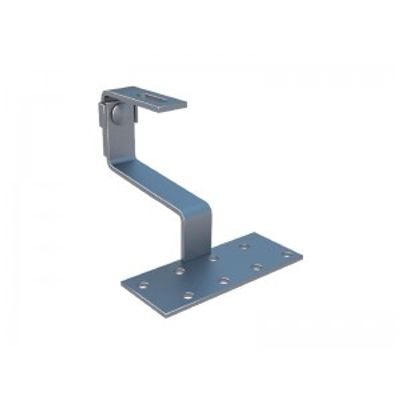

Plate: 150x50x5 (mm). Bar: 30×5 (mm). Hole: Ø9 (mm) x 8. Long Hole: 11×37 (mm)M10. Material: A2 1.4301shot blasting. Notifications: included screws M10 A2
