9 products found
Rentech Boiler Systems, Inc. Products
-
Fired Packaged Watertube Boilers
Rentech Boiler is known for manufacturing the most rugged and durable industrial watertube boilers on the market. Our conservative design includes large furnaces ensuring optimum circulation, efficient heat transfer rates, and the volume required to meet the most stringent emission guarantees. All boilers are built with water-cooled, full membrane wall construction providing a low maintenance and tight gas-side seal; and steam drums designed to exceed customer requirements with high retention times, and superior steam separation internals.
-
Rentech - Model D-TYPE - Fired Packaged Watertube Boilers
Rentech’s D-type watertube boilers are the workhorse of the boiler industry! The flexible design of our D-type boilers make it well suited for most applications. The conservatively sized furnaces are optimized to meet demanding emission levels while ensuring the longevity of your steam boiler. Superheated steam can be provided with single stage or dual stage convective superheaters, and Rentech’s super. Heaters are always designed to be fully ...
-
Modular Fired Packaged Watertube Boilers - Modular HRSG Designs
Rentech’s team of engineers can design a modular HRSG system to meet your needs. Custom designs can include an elevated steam drum, or systems designed for a vertical up-flow or down-flow gas stream. Modular systems include the necessary riser, downcomer, and steam piping to make your modular HRSG complete. Modular designs are available for both cross flow (link) and water cooled furnace (link) designs and includes options for supplemental duct burner fired and fresh air fired units.
-
Rentech - Partially Field-Erected Boilers
With years of experience and know how, Rentech can design partially shop assembled modules to ensure high quality and to minimize work required at the jobsite. Options include full shop assembled convection sections and furnace ...
-
Rentech - Modularized Auxiliary Equipment
Packing duct work, piping, and auxiliary equipment into a shop assembled module can significantly reduce construction time and labor cost at the installation site. Rentech offers modular skid solutions to meet your project’s ...
-

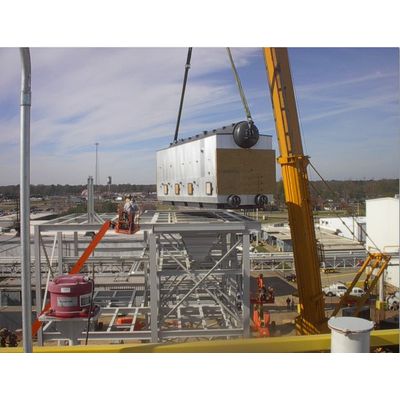

Rentech - Fully Field-Erected Boilers
When access to the site simply cannot allow for any large deliveries, Rentech can offer a fully field-erected boiler. Typically, major subassemblies like the steam drum, mud drum, superheater, and endwalls are shop assembled and delivered to the site. Once the subassemblies are on site, Rentech can assist you in assembling the boiler onto your ...
-
Heat Recovery Steam Generators
Rentech heat recovery steam generators (HRSGs) are used in power plants around the world! Designed to recover the heat from gas turbines, our units are used to generate steam to drive steam turbines (combined cycle) or for other plant processes (co-generation). Rentech has a full line of custom-designed HRSGs to meet your specific needs.
-
Rentech - Cross Flow Two-Drum HRSG
Rentech’s cross flow HRSG is a compact design, engineered to fit in almost any footprint. These units can be provided in multiple gas flow configurations, adding to the design flexibility. Tube arrangements can be staggered or inline to maximize heat transfer and to minimize draft losses for maximum efficiency. Our cross flow boilers utilize a rigid carbon steel outer casing and internal insulation protected by a floating ...
-
Waste Heat Boilers
Rentech manufactures a wide range of watertube and firetube waste heat boilers. These boilers are designed for specific operational challenges such as high flue gas pressures, high solid content, and corrosive gasses; and stringent design standards such as API 936. Flue gas capacities from 50,000 lbs/hr to 1,000,000+ lbs/hr (22,000 kg/hr to 450,000+ kg/hr). Steam capacities from 10,000 lbs/hr to 400,000+ lbs/hr (4,500 kg/hr to 182,000+ kg/hr). Saturated or superheated steam. Pressures from 200 to 1,500 PSI (14 bar to 105+ bar ). Our waste heat boilers can be designed with an open bottom to allow for the removal of ash and solids that are byproducts of the flue gas. Additionally, we can design ash hoppers that can be attached to the bottom of the boiler to allow for connection to the customer supplied solid removal system.
-
Rentech - Cross Flow Waste Heat Watertube Boilers
Rentech cross flow watertube boilers are a robust design that can be configured to fit into almost any footprint. Tube arrangements can be staggered or inline to maximize heat transfer and minimize draft losses. Rentech’s cross flow boilers are designed with an outer casing thickness to meet the needs of the application. The internal insulation is typically a combination of a refractory insulator and hot face. Rentech is experienced with several ...
-
Rentech - Water Wall Waste Heat Watertube Boilers
Rentech’s water cooled waste heat boilers leverage our extensive experience in fired water tube package boilers and integrates that experience into a high temperature waste heat boiler design. Rentech’s water wall boilers are designed with an outer casing thickness to meet the needs of the application. The internal insulation is typically a combination of a refractory insulator and hot face. Rentech is experienced with several types of ...
-
Rentech - Single Drum Waste Heat Firetube Boilers
These boilers remove heat from your flue gas especially when your flue gas pressure is relatively high. We offer one, two, and three-pass designs in both vertical and horizontal ...
-
Rentech - Elevated Steam Drum Waste Heat Firetube Boilers
For applications that require high steam production, and steam pressure, we offer waste heat firetube boilers with natural circulation elevated steam ...
