Richard Kablitz GmbH products

The Kablitz gilled heat exchanger for gaseous mediums is a multi-purpose design made of high-quality cast iron. The tried-and-tested design, arrangement and dimensioning of the gilled heating surface guarantee high heat transfer with maximum heating surface concentration of up to 68 m²/m³ and low space requirement. Thanks to the self-supporting structure, an extremely varied range of arrangements is possible which is always economical due to the standardised gilled plates and the modular system. Moreover, the Kablitz gilled heat exchanger has a long life due to the good corrosion resistance of the cast iron without any significant maintenance work. The cleaning takes place automatically through soot blowers or water washing rakes.

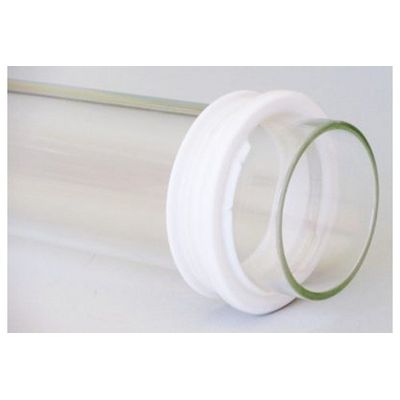

The residual heat in the flue gas must be utilised completely in order to reach a high efficiency. Since the acid dew point can be undershot on this occasion, the Kablitz glass tube heat exchanger is connected downstream.

In this case we can combine the Kablitz grate furnace with an injection furnace or a full-fledged dust burner. Depending on the requirements, you have the choice between a simple injection of the fuel and special multi-fuel burners in which the dust injection can be combined with fuel oil and/or natural gas. Both variants have their own combustion air and recirculation gas control.

Kablitz firing systems are characterised above all by their wide range of applications and their insensitivity to fuel and load fluctuations. The modular design achieves a maximum degree of adaptation of the furnace to the fuel requirements and the robust design also enables particularly long travel times with low wear.
