Ritter Gruppe products

Pressure loss of the Ritter Gruppe evacuated tube collectors CPC 6/12/18 OEM. Heat distribution medium: Tyfocor LS, medium temperature 40°C.

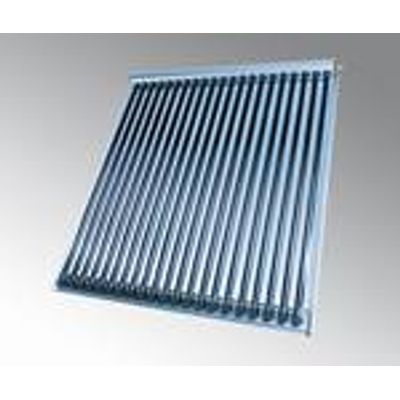

Evacuated Tube Collectors CPC INOX; For Domestic Water Heating and Backup Space Heating. Series Connection. Heat Exchanger Material: Copper.

The evacuated tube collector CPC XL INOX may also be used for both solar domestic water heating and for solar backup heating. The difference between this model and the CPC INOX is the 400 mm longer evacuated tube.

The evacuated tube collector OEM without a CPC reflector, was specially developed for applications that require horizontally mounting. This collector is supplied with an aperture area of 1.33 m², and can also be connected in series with a string of modules.

The insulated collecting and distribution pipes are located inside the collecting box.The advance or return connection can take place alternatively on the left of or on the right.In each evacuated tube there is a U pipe with direct flow-through that is connected in such a way to the collecting or distribution pipe that each individual evacuated tube exhibits the same hydraulic resistance. This U pipe is pressed to the inside of the evacuated tube with the heat guide plate.
