Senseca Italy S.r.l. products

Instruments - Environmental Analysis

Pyranometers

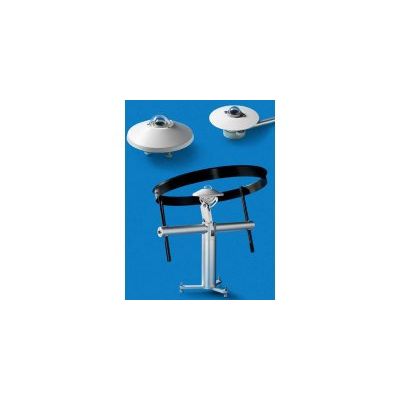

LP PYRA 02 pyranometer measures the irradiance on a plane surface (Watt/ m2). Measured irradiance is the result of the sum of direct solar irradiance and of diffuse irradiance. LP PYRA 02 is a First Class pyranometer in accordance with ISO 9060 standard and with the criteria of the WMO “Guide to Meteorological Instruments and Methods of Observation’”, fifth edition (1983).

DELTA OHM - Secondary Standard Pyranometer

The pyranometer LP PYRA 10 measures the irradiance on a flat surface (Watt/m2). The radiation measured is the sum of direct solar irradiance and diffuse irradiance (global radiation). The LP PYRA 10 is a pyranometer classified as Secondary in accordance with ISO 9060 and according to the publication “Guide to Meteorological Instruments and Methods of Observation”, fifth edition (1983) of WMO The pyranometer is available in three versions: LP PYRA 10 PASSIVE * LP PYRA 10 AC ACTIVE with CURRENT 4..20 mA output LP PYRA 10 AV ACTIVE with VOLTAGE 0..1 V, 0..5 V, 0..10 V output, to specify at the time of ordering **. * The passive version can be connected to the instrument through the indicator DO9847 by SICRAM module VP 472 ** Version with 0...1 Volt output can be connected by SICRAM VP474 to the instrument HD2302.0 which provides direct reading in W/m2.
