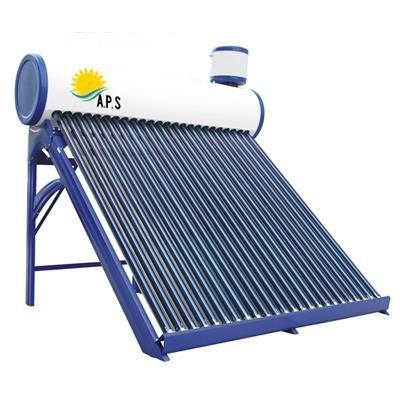

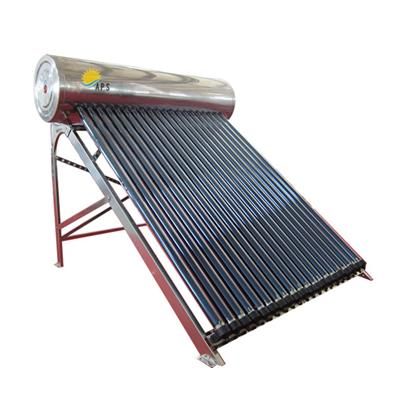

Inner water tank: Stainless Steel, SUS304-2B, SS316L; Thickness, 0.31-0.51MM. Outer water tank: Color Steel or Stainless steel; Thickness, 0.40MM. Insulation layer: Polyurethane foam; Thickness, 30-60MM. Frame: Galvanized Steel; Aluminum Alloy; Stainless Steel; Angle, As your requirement. Vacuum tubes: ALN/AIN-SS/CU layer;47-1500 OR 58-1800. Tank capacity: 70-400L. Assistant Tank Heating Element, Mg Rod, Reflector and Controller can be provided.

Tech Data:  Inner water tank: Stainless Steel, SUS304-2B, SS316L; Thickness, 0.31-0.51MM. Outer water tank: Color Steel or Stainless steel; Thickness, 0.40MM. Insulation layer: Polyurethane foam; Thickness, 30-60MM. Frame: Galvanized Steel; Aluminum Alloy; Stainless Steel; Angle, As your requirement. Vacuum tubes: ALN/AIN-SS/CU layer; 58-1800. Copper Coil: 15M(18Tubes) 20M(24Tubes), 25M(30tubes);30M(36tubes). Assistant Tank heating element, Mg Rod, Reflector and Controller can be provided.

Tech Data:  Inner water tank: Stainless Steel, SUS304-2B, SS316L,Enamel;Thickness,1.2-2.5MM. Outer water tank: Color Steel or Stainless steel; Thickness, 0.40MM. Insulation layer:  Polyurethane foam; Thickness, 30-60MM. Frame: Galvanized Steel; Aluminum Alloy; Stainless Steel; Angle, As your requirement. Vacuum tubes:  ALN/AIN-SS/CU layer; 47-1500 OR 58-1800 with Heat Pipe. Heating element, Mg Rod, Reflector and Controller can be provided.  Working Pressure : 0.6Mpa ,Testing Pressure : 1.0Mpa.

Inner water tank: Stainless Steel, SUS304-2B, SS316L,Enamel; Thickness,1.2-2.5MM. Outer water tank: Color Steel or Stainless steel; Thickness, 0.40MM. Insulation layer: Polyurethane foam; Thickness, 30-60MM. Frame: Galvanized Steel; Aluminum Alloy; Stainless Steel; Angle, As your requirement. 5. Solar Collector: Length 2000MM; Widen,1000MM; Thickness,80MM. Heating Element, Mg Rod, Reflector and Controller can be provided. Working Pressure :0.6Mpa ,Testing Pressure :1.0Mpa.

This system is combined with Solar Collector, Pressurized Storage Tank,Work Station, Pipeline etc. Solar Collector can be The Heat Pipe Solar Collector,The U Pipe Solar Collector, The Balcony Solar Collector or The Flat Solar Collector. Inner Tank for Pressurized Storage Tank can be SUS304-2B, SS316L or Enamel Tank. Solar Working Station. Working Pressure :0.6Mpa ,Testing Pressure :1.0Mpa.

Generally, there are two patterns: the pattern of horizontal composition and the pattern of vertical composition.

The heat pipe solar collector is connected with storage tank, electric control device, hot water mix unit and fittings for circulation and installation. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapour which rises to the condenser. The heat then passes through the heat ex-changer and The vapor becomes liquid, returning to the base of the heat pipe. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

The fluid passes through the U-shaped copper pipe which inserted inside the vacuum tube (evacuated tube) and when warmed up, it returns up to the header pipe. An aluminum fin conducts heat from the entire inner surface of the evacuated tube and transfers it to the solar fluid inside the copper pipe. The fin touch precisely to the inner glass tube and embraces tightly the U copper pipe with solar fluid.

Flat Solar Collector can be used in the solar heating project both closed and open circulation systems. Also, it also can be used in many different solar system.
