Shine Industries products

The Insulating Termination Bushing Boot is a right-angled adapter designed to fit over standard bushings to Type C according to EN 50181. The insulated adapter termination system provides perfect sealing, electrical insulation and an electrical connection between terminations and SF6-insulated switch-gear up to 24 kV.

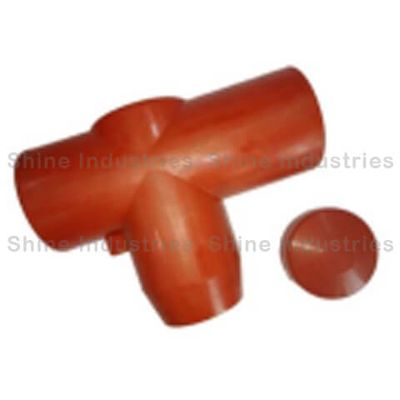

Bus-bar Connectors are widely applicable for the combined connection of Ring Main Units (RMU) & Gas Insulated Switchgear (GIS) mainly by the T-joint & CrossConnector, to supply more branches for expansion, which electrically insulate and mechanically seal the connecting bus-bar and switchgear.

Shine Industries can now offer from stock, Insulating the bus bar & Switchgear joints is very unmanageable and exceptional job owing to a very complex and varied profile of the joints in the layouts that are of much customized nature. Because of this majority of the joints are left open without insulation. Therefore in many advanced countries & some Indian MNCs have made it mandatory to use flexible shrouds made of PVC Plastisols for insulation of joints.

Silicone Terminal Protector Boot SITB-01 can be used in the Ring main units having Bushing of C type interface. Modern switchgear where compactness is often achieved through use of Insulating SF6 Gas. Cable Terminal Protector is extremely well suited for this kind of Switchgear. It can accommodate cross section up to 300 Sq.mm.

Pre-molded elbow boots applied for RMU connections with the function of protecting, insulating, and sealing. They are also used to reduce the clearances between phase to phase and phase to ground. Such boots have outstanding behaviors from the weathering resistance and electrical properties. They can withstand normal and surge voltages induced during the operational life of termination systems. The installation of cold-applied boots is very quick and simple they don`t need any taping of the bushing or the termination.

Pre-molded elbow boots applied for switchgear and transformer connections with the function of protecting, insulating and sealing. They are also used to reduce the clearances between phase to phase and phase to ground. Such boots have outstanding behaviors from the weathering resistance and electrical properties. They can withstand normal and surge voltages induced during the operational life of termination systems. The installation of cold-applied boots is very quick and simple they don`t need any taping of the bushing or the termination.

Self-amalgamating tapes are non-tacky tapes made out of ethylene propylene rubber which when stretched and wrapped around cables, electrical joints, hoses and pipes combines or unites itself into a strong, seamless, rubbery, waterproof, and electrically insulating layer. Unlike many other polymers and fibers, it is heat-sunlight and weather-resistant. Self-amalgamating tapes come with a protective liner interleave which is easy to remove and the material does not snap on extended elongation. EPR tapes stands out from the competition as one of the easiest to work with, excellent performance and the essential addition to every toolbox.

The Flexible insulating boot is cold applied boot to provide increased insulation between phase to phase & phase to ground for medium voltage switch-gear and transformer cable boxes where the air clearances are not sufficient for normal operation and to prevent electrical flash-over due to high humidity or rodents. We are one of the finest Flexible Bushing Boot manufacturer in India having customized solution for each of our clients.

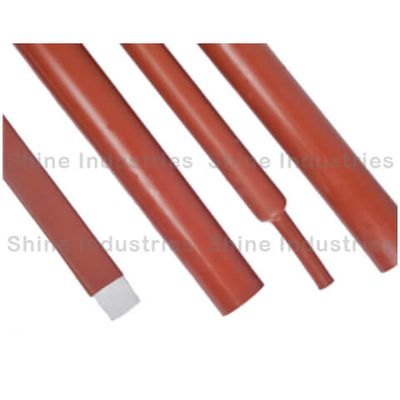

Heat Shrinkable Sleeves provide insulation enhancement to bus-bar systems up to 36kv and protect them against flash-over and accidental induced discharge. The use of bus-bar tubing allows equipment designers the freedom to reduce air spacing between busbar, such as in manufacture of switchgear cabinets where space is at a premium.

OLIS provides retrofit insulation for overhead conductors to help prevent electrical outages caused by trees or wildlife coming into the contact with distribution lines. It is manufactured from high quality Non-Tracking Cross Linked Polyolefin material. Easy & quick installation widely used in the electrification railway and naked wire in substation for insulating protection. These covers are designed to insulate existing bare lines without costly conductor replacement expenditure or additional line hardware.
