Smart Energy Systems International (SEI) AG Products
-

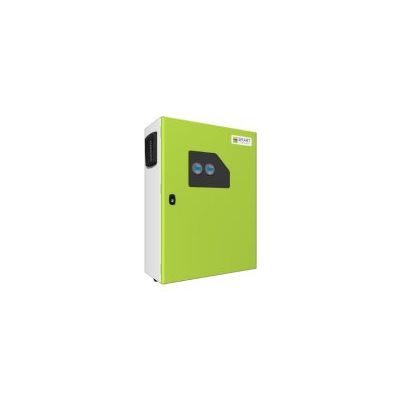

Off-Grid Systems
Our intelligent switch cabinet solutions combine all the necessary components for a reliable off-grid power supply. Because of an optimized system layout and our smart plug`n`play concept, installation is greatly simplified and ensures a smooth start-up. An integrated system monitoring and notification system support the user during operation. The standardized and well documented layout helps to quickly identify errors and to correct them in case of service. We focus on quality! We manufacture in Germany and only install components from reputable manufacturers such as Studer, Hager, Rittal and Siemens.
-
SEI - Model AC524 - PV Off-Grid System - Phoenix Power
Plug'n'Play off-grid cabinet solution (Made in Germany) for 230V AC power supply with inverter Victron Energy Phoenix 24/500 VE.Direct (500VA), MPPT charge controller Victron Energy BlueSolar MPPT 100/15 (15A/440Wp), battery monitor Victron Energy BMV-700 and 2.5m/16mm2 battery main cable ...
-
SEI - Model AC1224 - PV Off-Grid System - Phoenix Power
Plug & Play off-grid cabinet solution (Made in Germany) for 230V AC power supply with inverter Victron Energy Phoenix C 24/1200 (1200VA), MPPT charge controller Victron Energy BlueSolar MPPT100/30 (30A/880Wp), PV charger monitor Victron Energy MPPT Control, battery monitor Victron Energy BMV-700 and 2.5m/25mm2 battery main cable ...
-
SEI - Model AC1624 - PV Off-Grid System - Phoenix Power
Plug & Play off-grid cabinet solution (Made in Germany) for 230V AC power supply with inverter Victron Energy Phoenix C 24/1600 (1600VA), MPPT charge controller Victron Energy BlueSolar MPPT100/50 (50A/1400Wp), PV charger monitor Victron Energy MPPT Control, battery monitor Victron Energy BMV-700 and 2.5m/25mm2 battery main cable ...
-
PV Storage Systems
Ordinary PV systems provide electricity at daytime. Unused energy flows back into the public grid. Electricity in the evening or at night has to be expensively drawn from the grid. In order to increase their own consumption share, while reducing the cost of electricity, surplus PV energy can be stored in a battery. If not enough PV power is generated, for example, in the evening or at night, the energy storage is discharged. Depending on the installed PV capacity and battery size a complete autonomy is almost possible. With the Smart Energy + series our engineers have developed both AC and DC-coupled storage solutions that meet these requirements.
-
SmartEnergy - Model DC 3/5 VE - On-Grid PV Storage System
Off-grid capable PV storage solution with 3kVA /11.5kVA 230V AC system / transfer power and 5kWp PV power (1 MPPT); 3-phase power distribution with phase coupling, bypass circuit (uninterruptible), optional mains feedback with integrated grid & plant protection (VDE AR-N4105); display with data logger and remote access via LAN / Internet, pure isolated operation ...
-
SmartEnergy - Model DC 3/10 (w/o Batteries) - Off-Grid PV Storage
Off-grid capable PV storage solution with 3kVA / 11.5kVA 230V AC system / transfer power and 10kWp PV power (2 MPPTs); 3-phase power distribution with phase coupling, bypass circuit (uninterruptible), optional mains feedback with integrated grid & plant protection (VDE AR-N4105); display with data logger and remote access via LAN / Internet, pure isolated operation ...
-
SmartEnergy - Model DC 6/10 (w/o Batteries) - PV Storage Systems
Off-grid capable PV storage solution with 6kVA / 11.5kVA 230V AC system / transfer power and 10kWp PV power (2 MPPTs); 3-phase power distribution with phase coupling, bypass circuit (uninterruptible), optional mains feedback with integrated grid & plant protection (VDE AR-N4105); display with data logger and remote access via LAN / Internet, pure isolated operation ...
-
Backup Power Supply
Backup systems deliver uninterruptible power supply of critical consumers in regions with unstable power grids. They respond not only during power failure but also when violations of predetermined frequency and voltage limits are detected. By instantaneous changeover with minimal delay (offline UPS) consumers are effectively protected against these threats. Our turnkey control systems are characterized by high quality and reliability, as well as the Plug`n Play system design developed by our experts. With a switching time of less than 20ms, the systems are suitable for sensitive equipment and can, depending on the version, provide the entire power supply or only individual circuits. The integrated system monitoring informs the user about events and enables transparent management.
-
SEI - Model AC5024 - Multi Backup System
Plug'n'Play off-grid cabinet solution (Made in Germany) for 230V AC backup power supply with inverter/charger Victron Energy MultiPlus 24/5000/120-100 (5000VA), battery monitor Victron Energy BMV-700 and 2.5m/95mm2 battery main cable ...
-
SEI - Model AC5048 - Multi Backup System
Plug'n'Play off-grid cabinet solution (Made in Germany) for 230V AC backup power supply with inverter/charger Victron Energy MultiPlus 48/5000/70-100 (5000VA), battery monitor Victron Energy BMV-700 and 2.5m/50mm2 battery main cable ...
-
SEI - Model AC15048T - Multi Backup System
Plug’n’Play off-grid cabinet solution (Made in Germany) for 230/400V AC backup power supply with 3x inverter/charger Victron Energy MultiPlus 48/5000/70-100 (total 15kVA, 3-phase), display/control unit/data logger Victron Energy ColorControl GX, battery monitor Victron Energy BMV-700 and 2.5m/120mm² battery main cable ...
