smart-MAIC LAB LLC products

Energy monitor smart-MAIC D101 for 1−Line grid with Current Transformer type Ring up to 100A. Smart meter D101 produced in Standard and Extended version. In the Extended version, the smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT. In the Standard version, the device measures one-way power and 1 minute data intervals for API and MQTT.

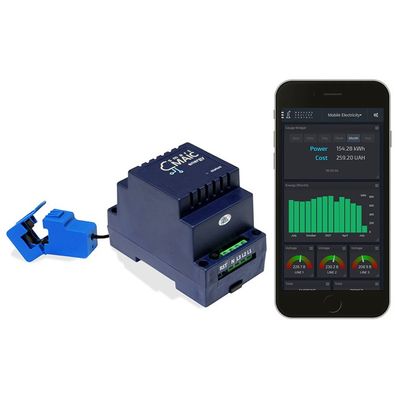

Energy monitor smart-MAIC D101 for 1−Line grid with Current Transformer type Clip up to 100A. Smart meter D101 produced in Standard and Extended version. In the Extended version, the smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT. In the Standard version, the device measures one-way power and 1 minute data intervals for API and MQTT.

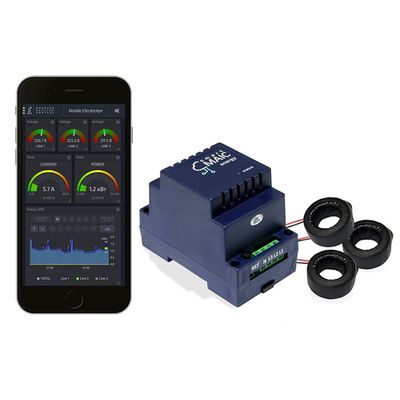

Energy monitor smart-MAIC D103 for 3−Lines grid with Current Transformer type Ring up to 100A. Smart meter D103 produced in Standard and Extended version. In the Extended version, the smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT. In the Standard version, the device measures one-way power and 1 minute data intervals for API and MQTT.

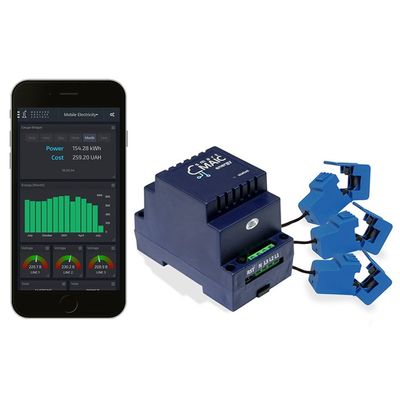

Energy monitor smart-MAIC D103 for 3−Lines grid with Current Transformer type Clips up to 100A. Smart meter D103 produced in Standard and Extended version. In the Extended version, the smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT. In the Standard version, the device measures one-way power and 1 minute data intervals for API and MQTT.

Energy monitor smart-MAIC D103 for 3−Lines grid with Current Transformer type Clips up to 300A. Smart meter D103-300 produced in Extended version only. For measurements of large currents and installation on highly loaded lines. This model uses 300A current transformers up to 200kW for 3 lines grid. The smart meter provides separate bi-direction metering of power consumption and generation, and 5 second data intervals for API and MQTT.
